PID technology controller
Overview
The technology controller controls process variables, e.g. pressure, temperature, level or flow.
Figure 6-44
Precondition
Additional functions
The motor closed-loop control is set
Tools
To change the function settings, you can use an operator panel or a PC tool, for example.
Function description
Function diagram
The technology controller is implemented as a PID controller (controller with proportional,
integral, and derivative action).
Converter with the CU250S-2 Control Units
Operating Instructions, 04/2018, FW V4.7 SP10, A5E31759476B AG

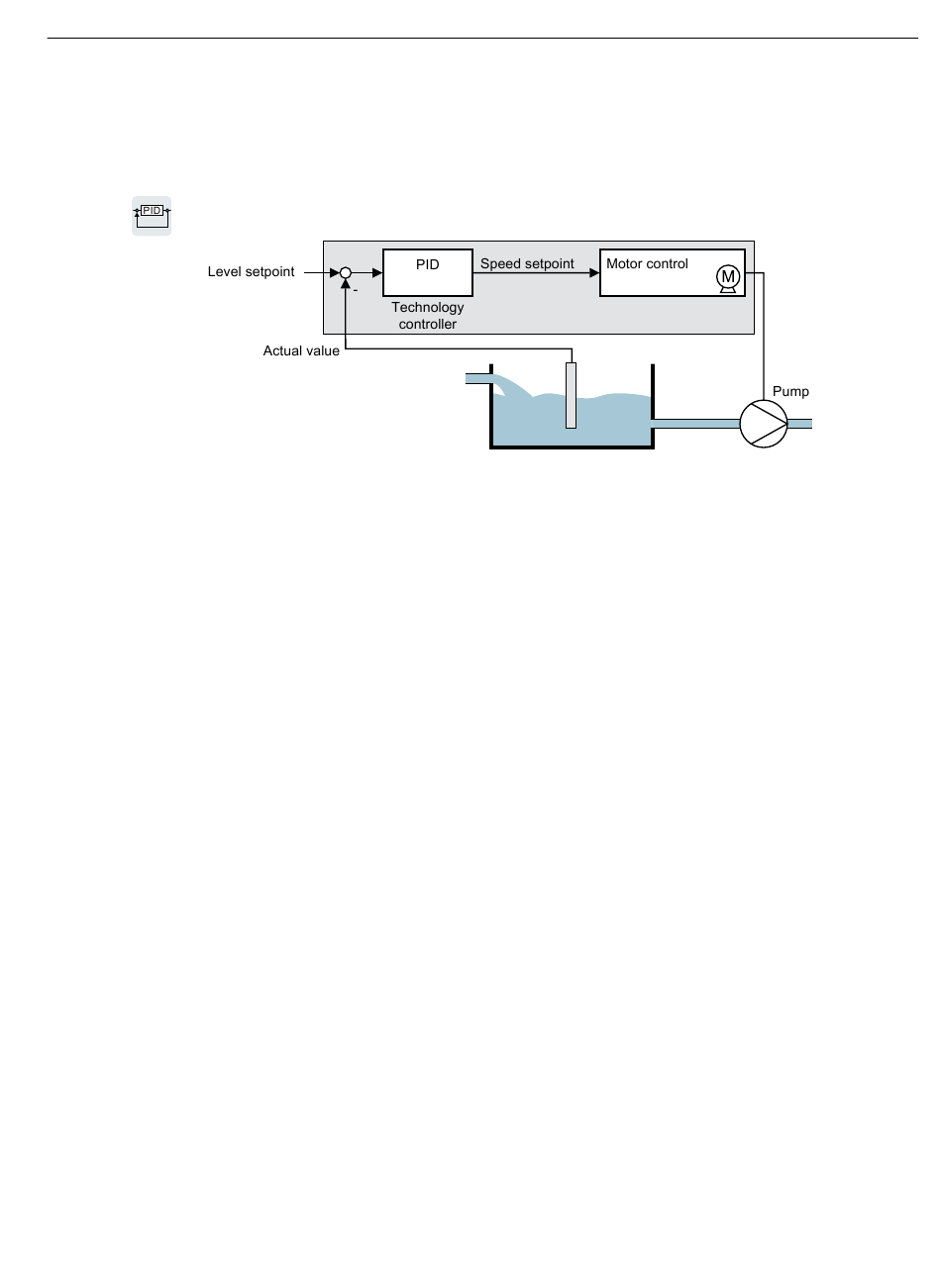

Example: Technology controller as a level controller
Advanced commissioning
6.20 PID technology controller
283
