Expert Logger

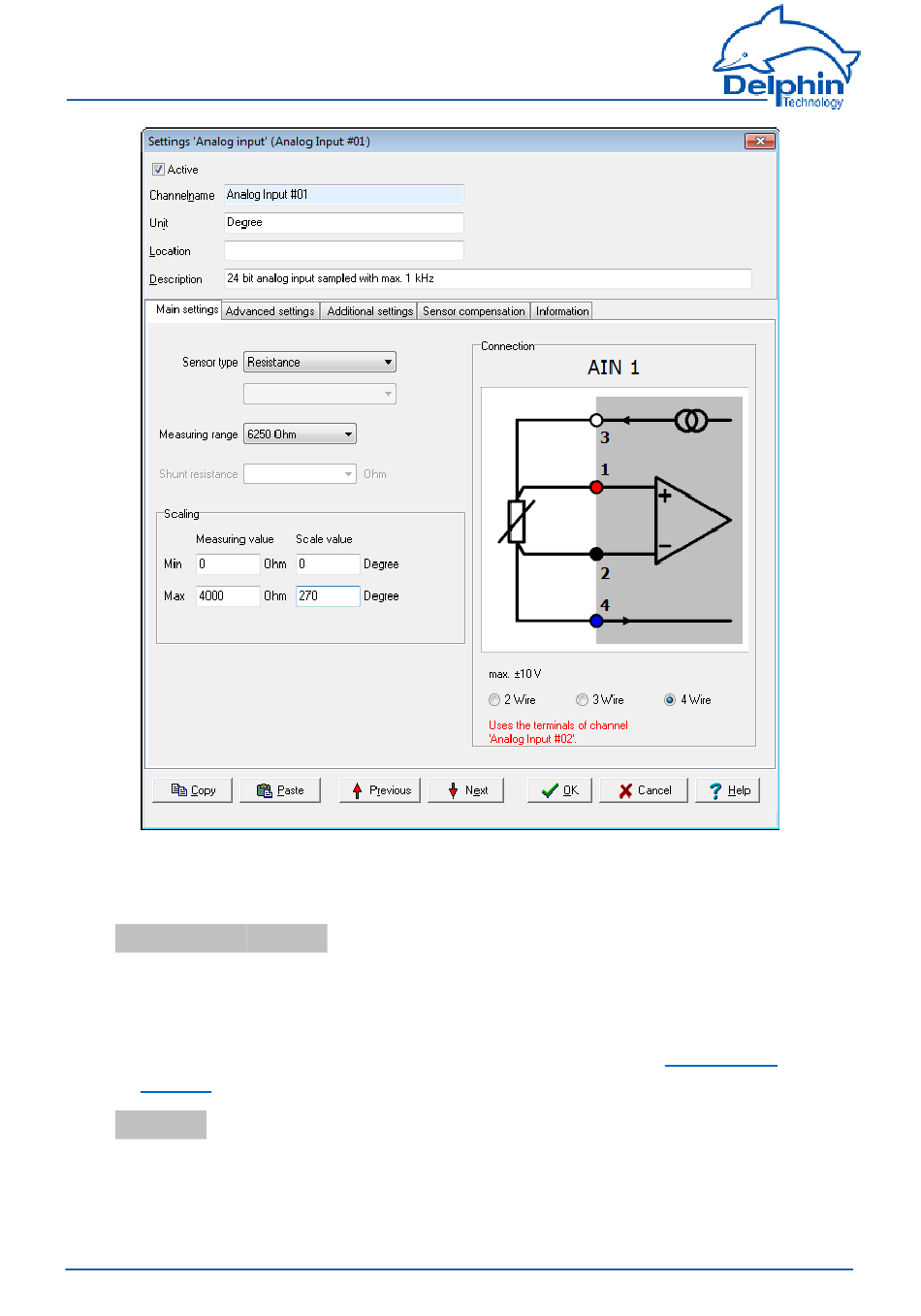

The example means: 0 degrees corresponds to 0 ohms, 4000 ohms cor-
responds to 270 degrees.
Measuring range
Select a measuring range that is equal to or greater than the resistance
from the sensor to prevent A/D converter overload. The channel receives
the status 'Measurement range overrun/underrun' for measurements not
within the range. Channel status values are available in
itoring.
Scaling
Enter two points from the sensor's characteristic curve, if possible, the
lower and upper vertexes. For a linear characteristic, measurement values
