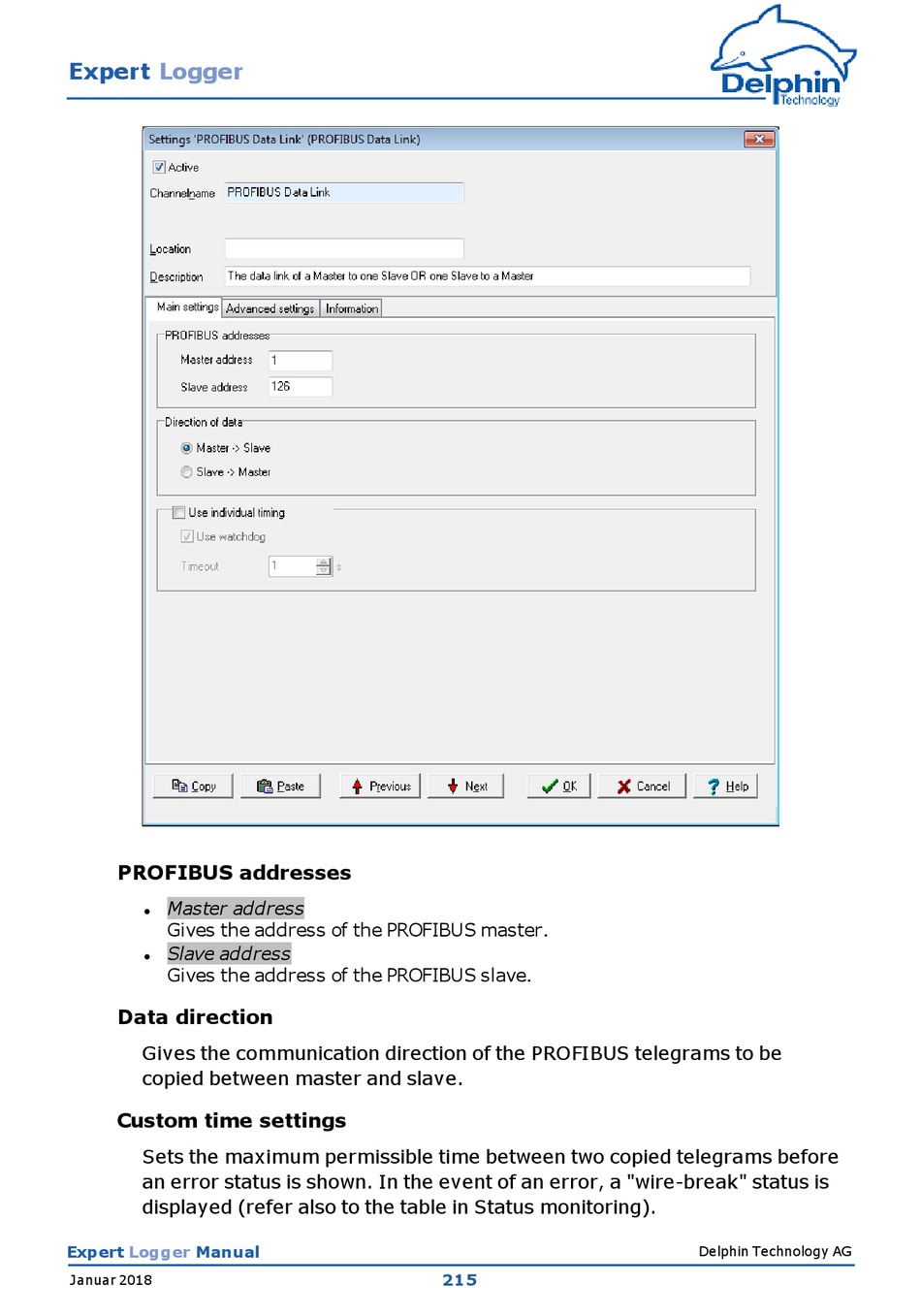

Delphin Expert Logger Manual page 215

Expert Logger
PROFIBUS addresses
Master address
l
Gives the address of the PROFIBUS master.
Slave address
l
Gives the address of the PROFIBUS slave.
Data direction
Gives the communication direction of the PROFIBUS telegrams to be
copied between master and slave.
Custom time settings
Sets the maximum permissible time between two copied telegrams before
an error status is shown. In the event of an error, a "wire-break" status is
displayed (refer also to the table in Status monitoring).
