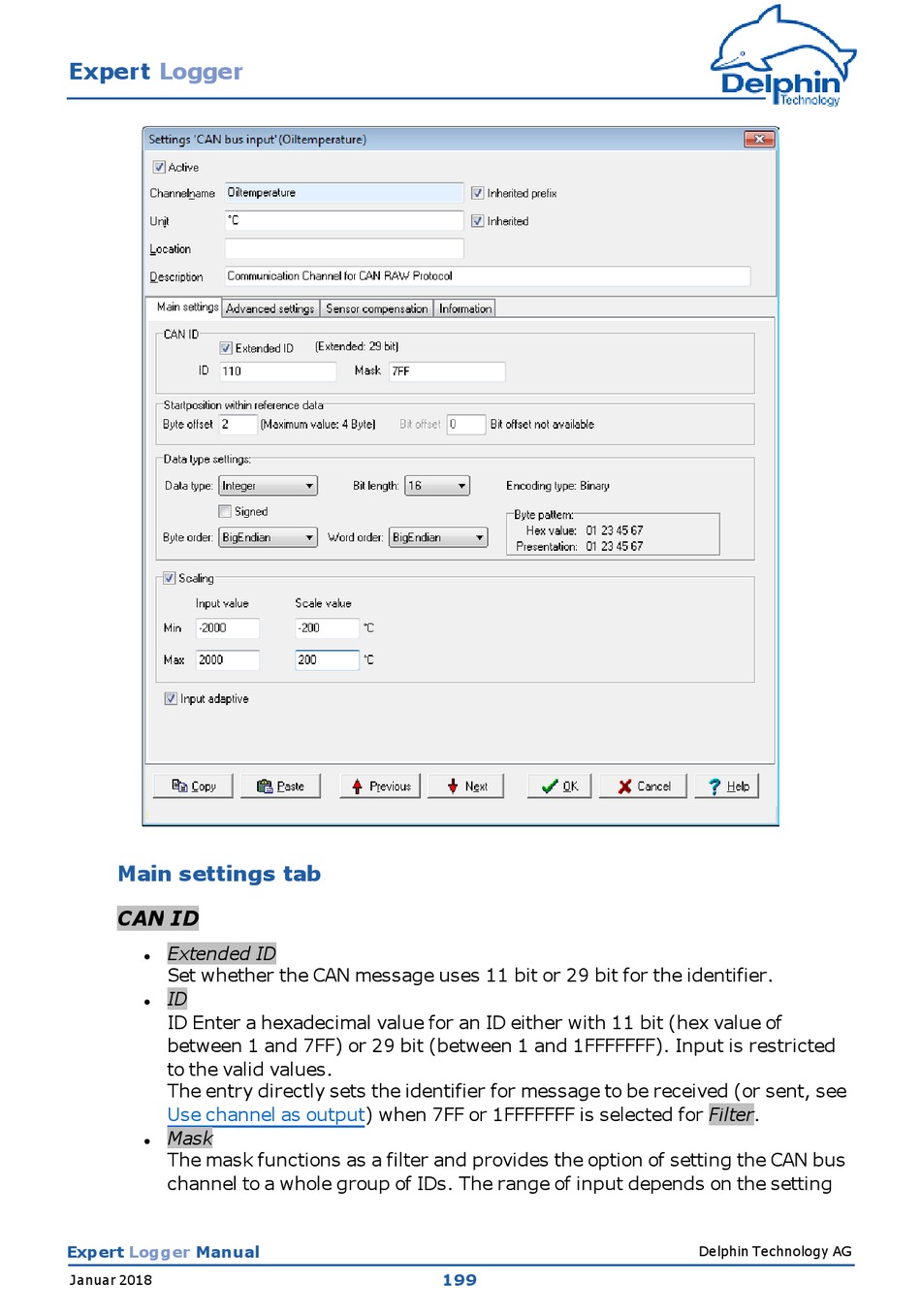

Delphin Expert Logger Manual page 199

Expert Logger
Main settings tab
CAN ID
Extended ID
l
Set whether the CAN message uses 11 bit or 29 bit for the identifier.
ID
l
ID Enter a hexadecimal value for an ID either with 11 bit (hex value of
between 1 and 7FF) or 29 bit (between 1 and 1FFFFFFF). Input is restricted
to the valid values.
The entry directly sets the identifier for message to be received (or sent, see
Use channel as output) when 7FF or 1FFFFFFF is selected for Filter.
Mask
l
The mask functions as a filter and provides the option of setting the CAN bus
channel to a whole group of IDs. The range of input depends on the setting
