5.2 Connecting actuators

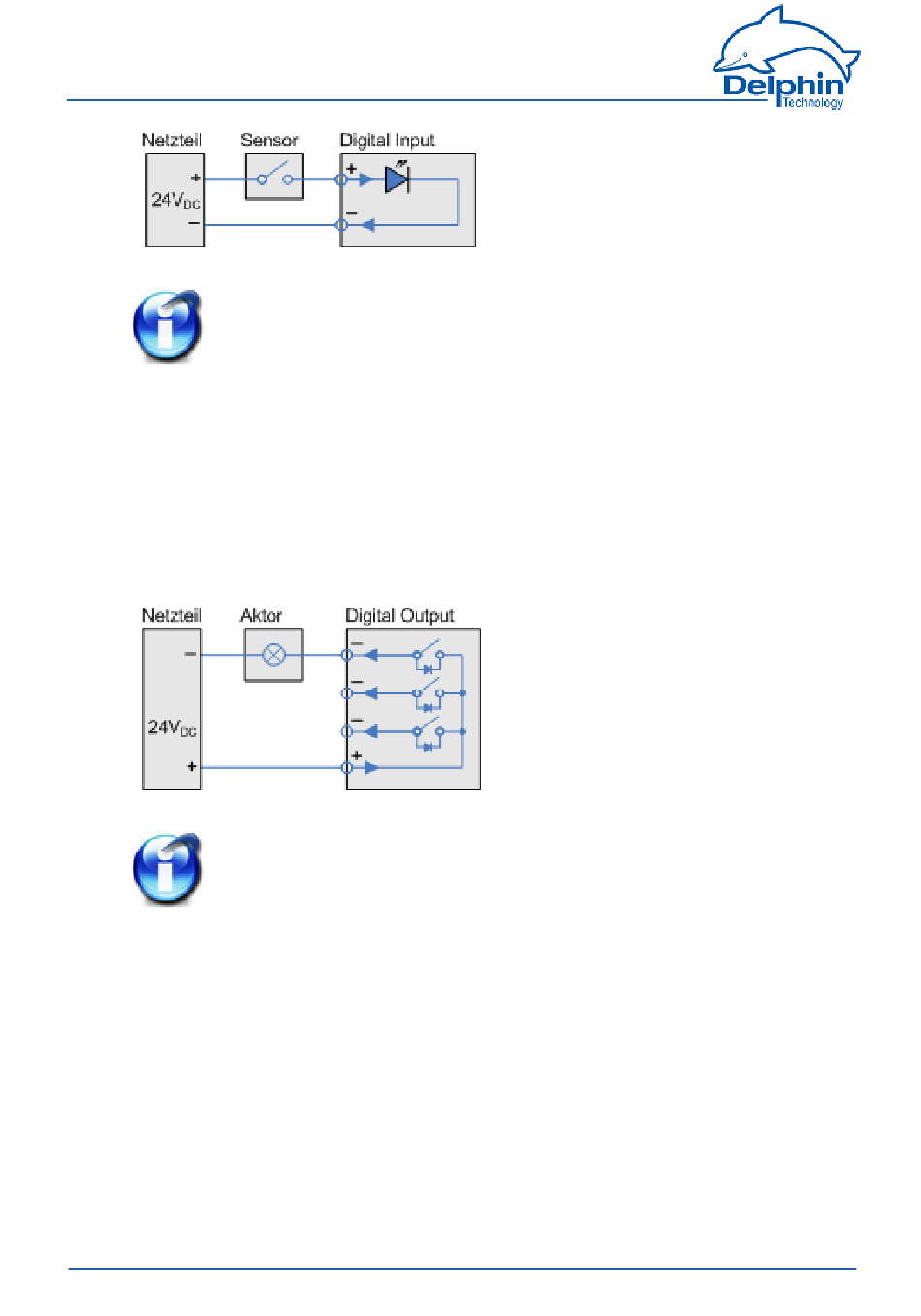

Actuator at a digital output, resistive load
To connect an actuator at a digital output requires an external supply
voltage of between 5 VDC and 50 V
Expert Logger
Actuator at a digital output, inductive load
To connect an actuator at a digital output requires an external supply
voltage of between 5 VDC and 50 V
Expert Logger
Expert Logger Manual
Januar 2018
For reliable detection the input signal must have a 'low' level ranging
from 0 V–2.5 V, a 'high' level ranging from 3.1 V–50 V and a min-
imum pulse width of 1 ms. A maximum of 50 signal changes per
second (maximum signal frequency) can be recorded.
The maximum switching voltage is 50 V and a maximum switching
current of 1 A.
(24 V in the examples).
DC
(24 V in the examples).
DC
