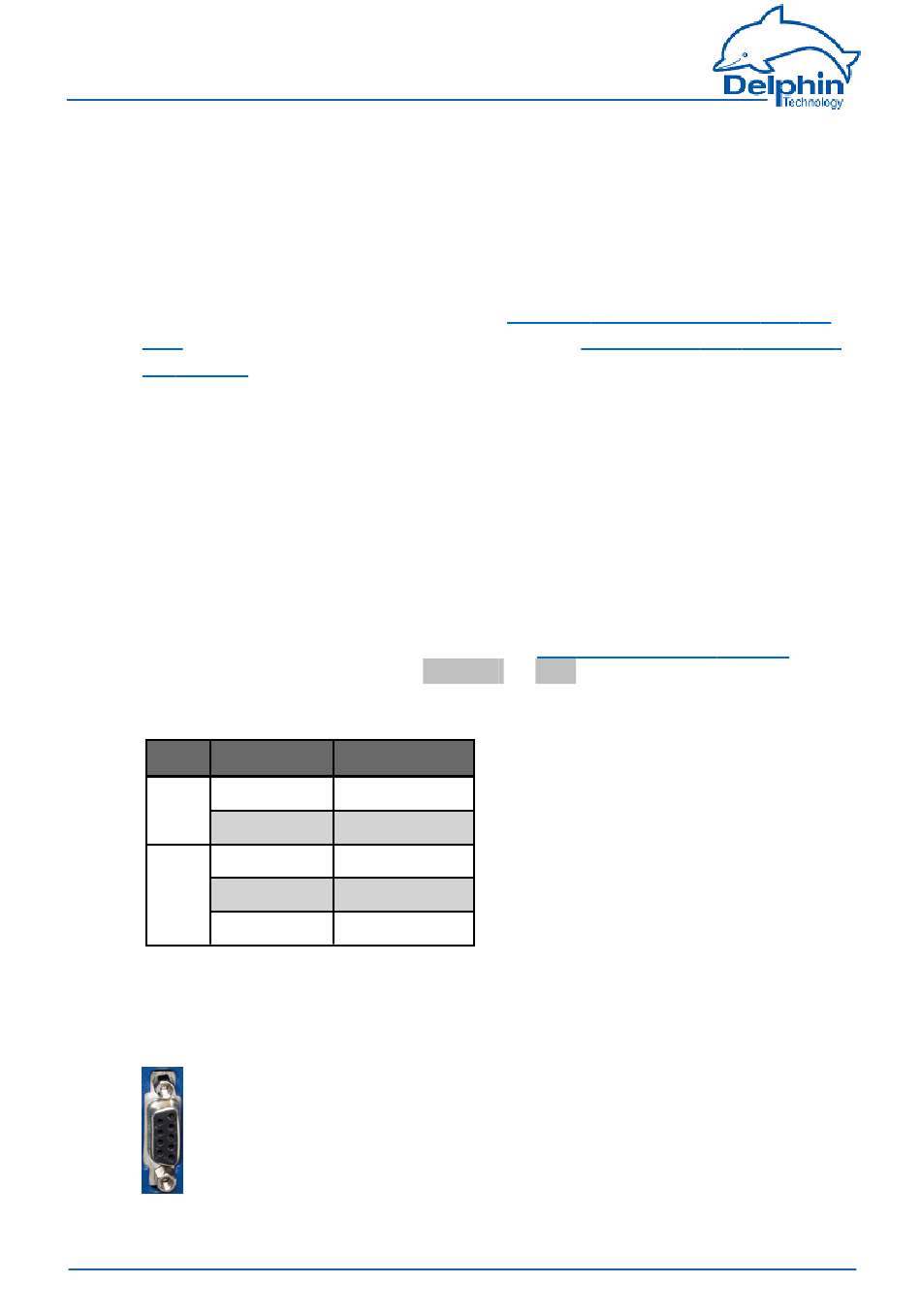

3.2 Display, LEDs

Display
The display is touch-sensitive, so you can call up the corresponding menu
items by tapping. You can also connect a mouse to the USB port and click
on the menus and icons with the mouse pointer.
The interface settings are explained in
play
; the symbols and menus are described in
the display
LED indicators
Power LED
The power LED is lit permanently, when a correct power supply is con-
nected. The LED flashes briefly every 5 seconds for approximately 0.1 s in
energy saving mode.
LEDs next to the display
The LEDs next to the display indicate sign of life (LED 1) and read/write
access to the memory (LED 2) by default.
DataService Configurator via
LEDs LAN2 (PC interface)
LED
On
Left
blinking
1 x blinking 10 Mbit
Right 2 x blinking 100 Mbit
3 x blinking 1 GB

3.3 COM interfaces, CAN bus

COM1/2 and CAN1/2
Expert Logger Manual
Januar 2018
.
Status Description
Link
Data transfer
Network configuration via the dis-
Configuring and operating
Configure the LED display
System →
LED
.
