Expert Logger

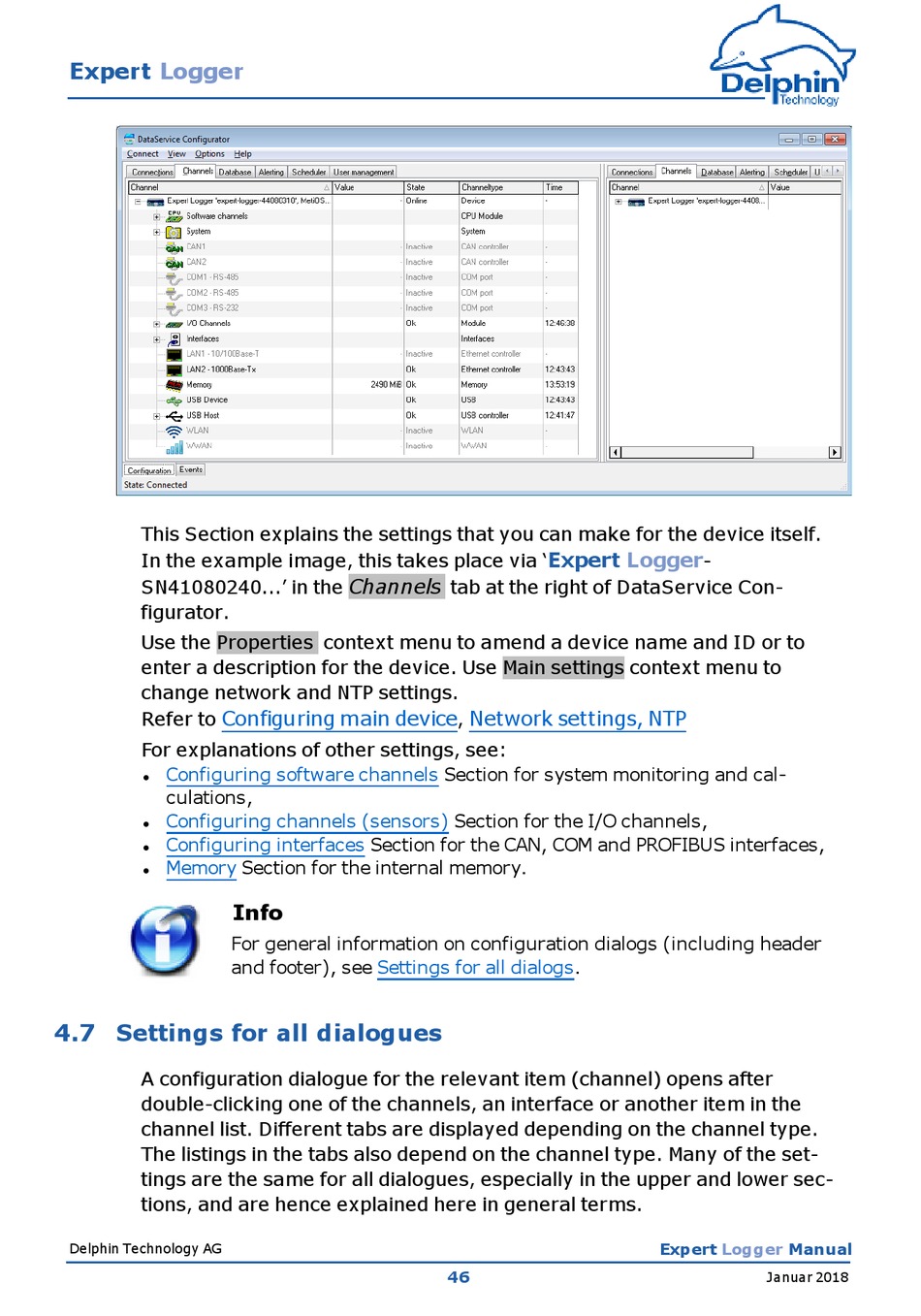

This Section explains the settings that you can make for the device itself.
In the example image, this takes place via '
SN41080240...' in the
figurator.
Use the Properties context menu to amend a device name and ID or to
enter a description for the device. Use Main settings context menu to
change network and NTP settings.
Configuring main device
Refer to
For explanations of other settings, see:
Configuring software channels Section for system monitoring and cal-
l
culations,
Configuring channels (sensors) Section for the I/O channels,
l
Configuring interfaces Section for the CAN, COM and PROFIBUS interfaces,
l
Memory Section for the internal memory.
l

4.7 Settings for all dialogues

A configuration dialogue for the relevant item (channel) opens after
double-clicking one of the channels, an interface or another item in the
channel list. Different tabs are displayed depending on the channel type.
The listings in the tabs also depend on the channel type. Many of the set-
tings are the same for all dialogues, especially in the upper and lower sec-
tions, and are hence explained here in general terms.
Delphin Technology AG
Channels
Info
For general information on configuration dialogs (including header
and footer), see Settings for all dialogs.
Expert
tab at the right of DataService Con-
Network settings, NTP
,
46
Logger
-
Expert Logger Manual
Januar 2018
