Expert Logger

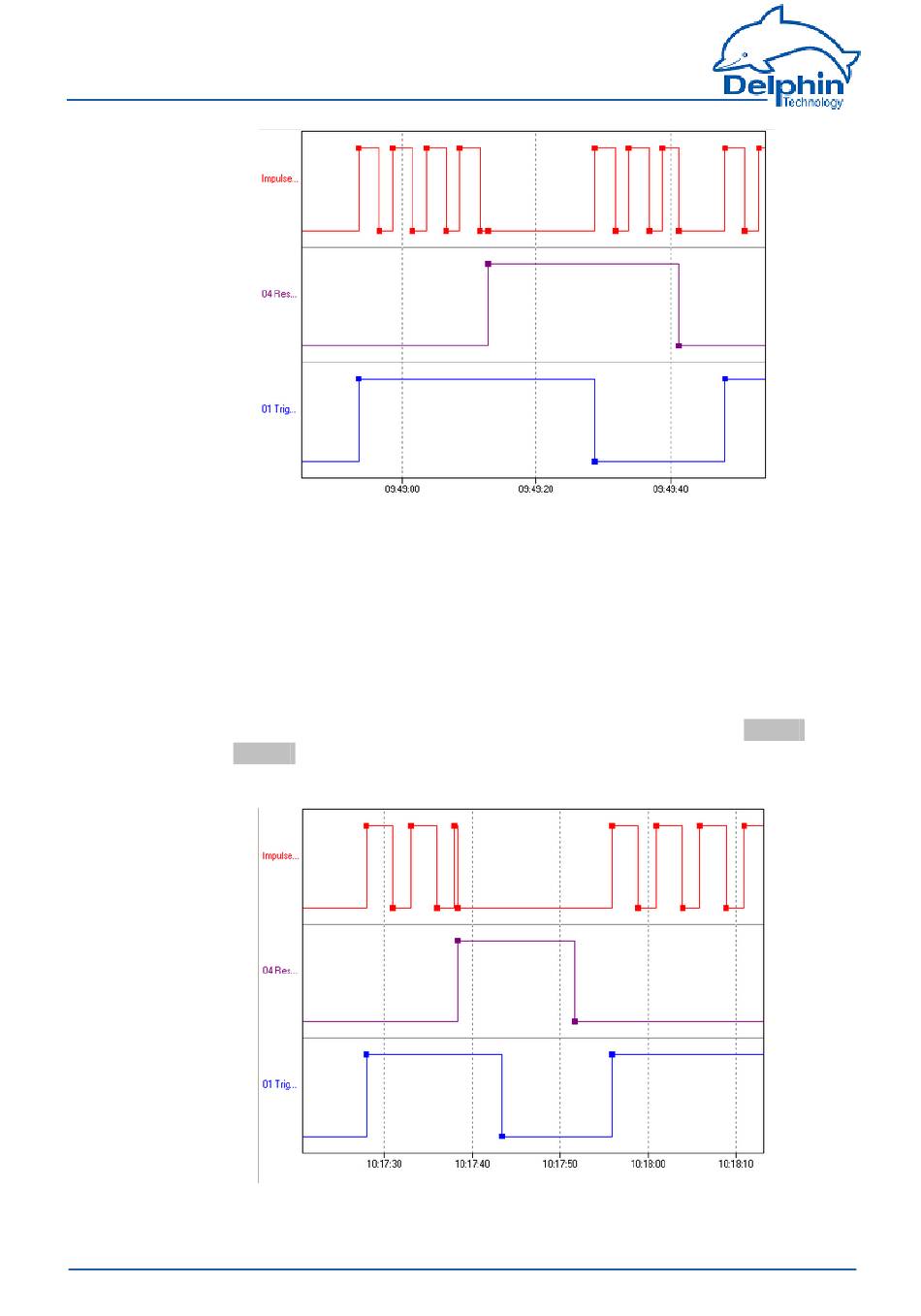

The trigger (blue curve) starts the pulse generator (red curve) with
a rising edge. Then the reset (purple curve) is triggered with a
rising edge and the pulse generator is stopped. Pulses are generated
again only after the trigger gives a new start signal with a falling
edge. A falling edge of the reset channel stops the pulse generator
again and pulses are generated again only after the rising edge of the
trigger channel.
b)
The trigger is triggered by a channel and has been set to Edges
(both) . The reset is also triggered by a channel, but has been set to
High level.
