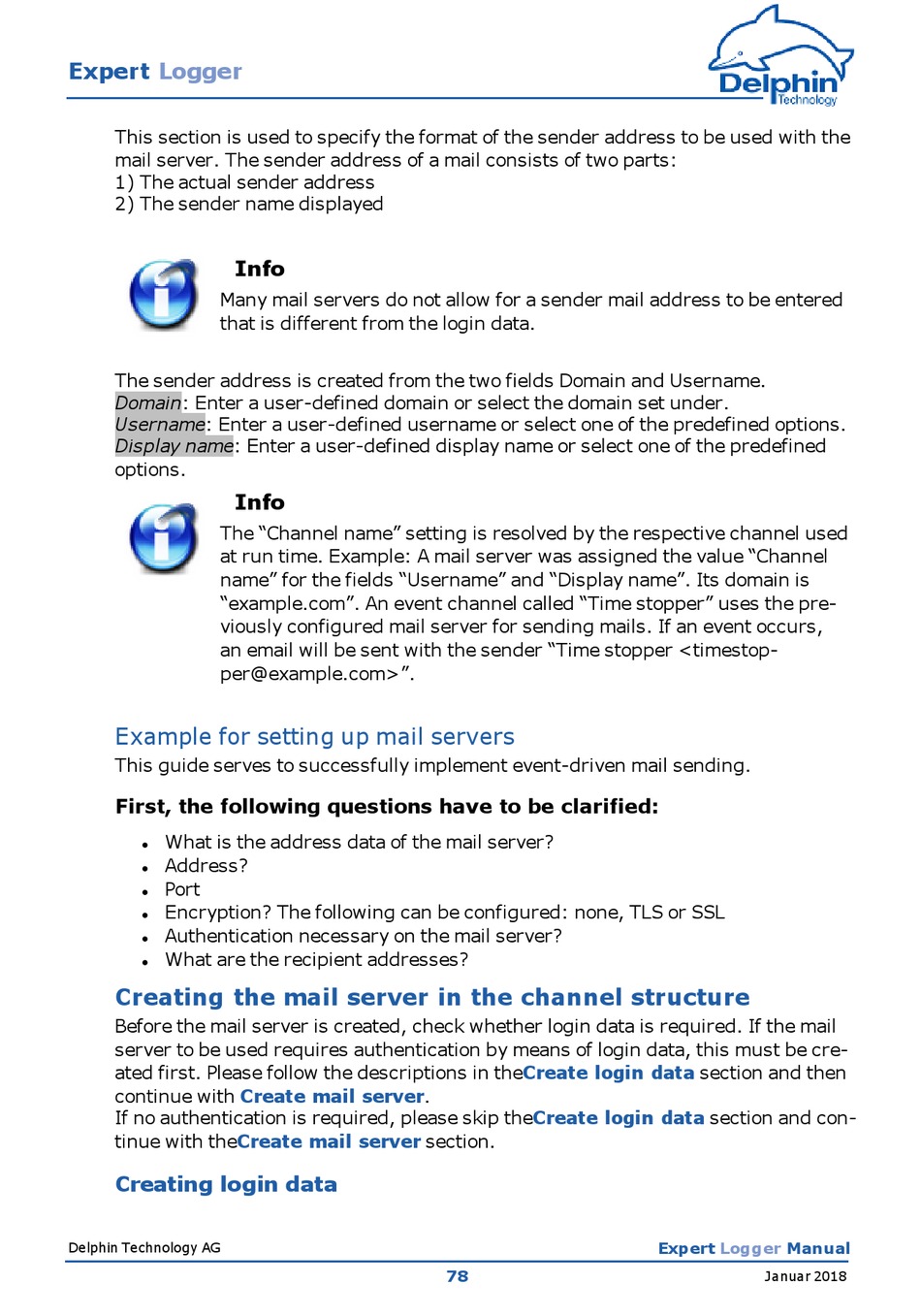

Delphin Expert Logger Manual page 78

Expert Logger
This section is used to specify the format of the sender address to be used with the
mail server. The sender address of a mail consists of two parts:
1) The actual sender address
2) The sender name displayed
Info
Many mail servers do not allow for a sender mail address to be entered
that is different from the login data.
The sender address is created from the two fields Domain and Username.
Domain: Enter a user-defined domain or select the domain set under.
Username: Enter a user-defined username or select one of the predefined options.
Display name: Enter a user-defined display name or select one of the predefined
options.
Info
The "Channel name" setting is resolved by the respective channel used
at run time. Example: A mail server was assigned the value "Channel
name" for the fields "Username" and "Display name". Its domain is
"example.com". An event channel called "Time stopper" uses the pre-
viously configured mail server for sending mails. If an event occurs,
an email will be sent with the sender "Time stopper <timestop-
per@example.com>".
Example for setting up mail servers
This guide serves to successfully implement event-driven mail sending.
First, the following questions have to be clarified:
What is the address data of the mail server?
l
Address?
l
Port
l
Encryption? The following can be configured: none, TLS or SSL
l
Authentication necessary on the mail server?
l
What are the recipient addresses?
l
Creating the mail server in the channel structure
Before the mail server is created, check whether login data is required. If the mail
server to be used requires authentication by means of login data, this must be cre-
ated first. Please follow the descriptions in theCreate login
continue with Create mail
If no authentication is required, please skip theCreate login
tinue with theCreate mail
Creating login data
Delphin Technology AG
server.
server section.
78
data section and then
data section and con-
Expert Logger Manual
Januar 2018
