Pc Connection - Delphin Expert Logger Manual

Expert Logger
The program works DataService Configurator from
between the PC and the measuring hardware. All devices are immediately
configured in DataService Configurator.
The ProfiSignal program evaluates and displays measurement data.

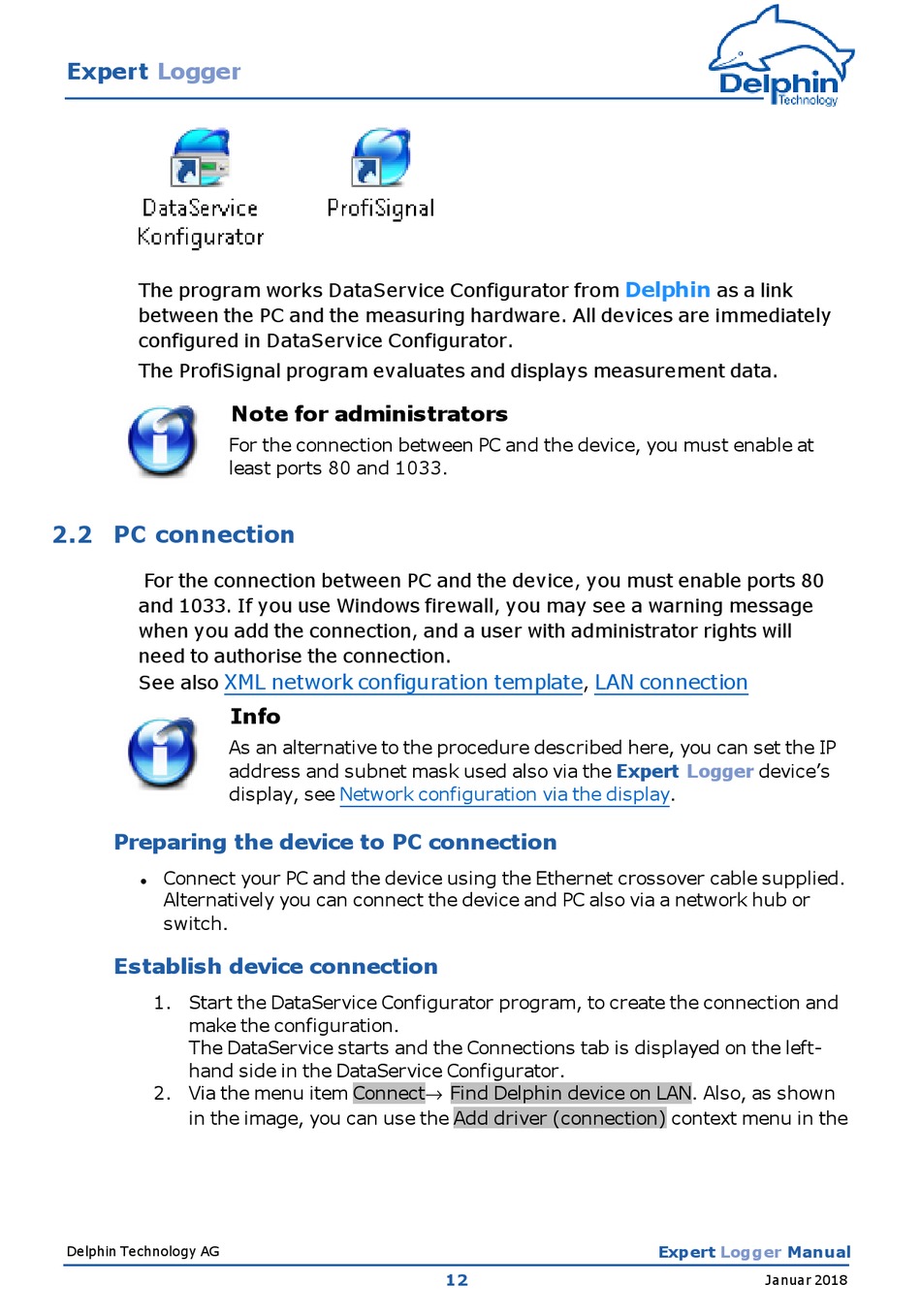

2.2 PC connection

For the connection between PC and the device, you must enable ports 80
and 1033. If you use Windows firewall, you may see a warning message
when you add the connection, and a user with administrator rights will
need to authorise the connection.
XML network configuration template
See also
Preparing the device to PC connection
Connect your PC and the device using the Ethernet crossover cable supplied.
l
Alternatively you can connect the device and PC also via a network hub or
switch.
Establish device connection
1. Start the DataService Configurator program, to create the connection and
make the configuration.
The DataService starts and the Connections tab is displayed on the left-
hand side in the DataService Configurator.
2. Via the menu item Connect→ Find Delphin device on LAN. Also, as shown
in the image, you can use the Add driver (connection) context menu in the
Delphin Technology AG
Note for administrators
For the connection between PC and the device, you must enable at
least ports 80 and 1033.
Info
As an alternative to the procedure described here, you can set the IP
address and subnet mask used also via the
display, see Network configuration via the display.
LAN connection
,
E xpert
12
Delphin
as a link
Logger device's
Expert Logger Manual
Januar 2018
