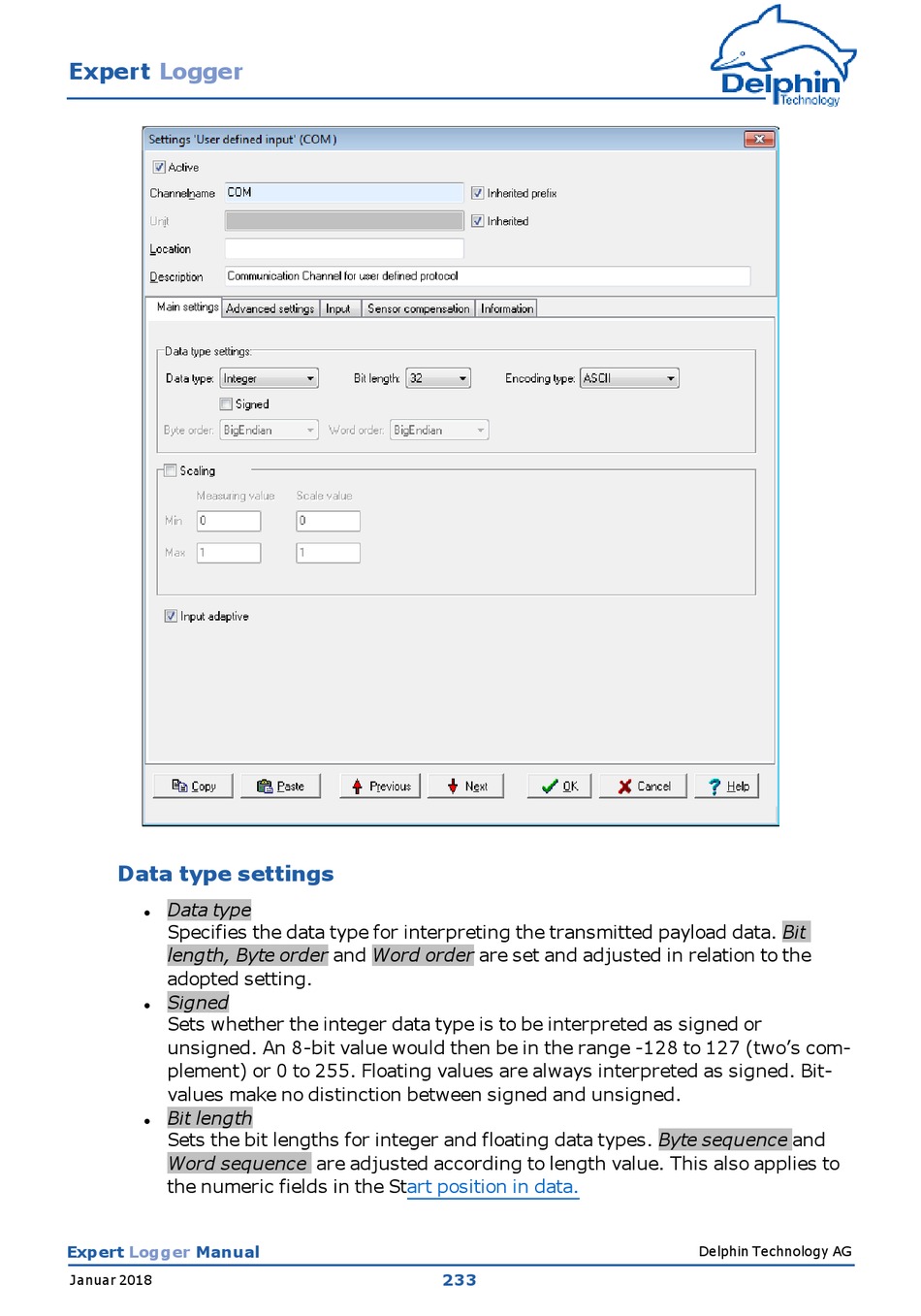

Delphin Expert Logger Manual page 233

Expert Logger
Data type settings
Data type
l
Specifies the data type for interpreting the transmitted payload data. Bit
length, Byte order and Word order are set and adjusted in relation to the
adopted setting.
Signed
l
Sets whether the integer data type is to be interpreted as signed or
unsigned. An 8-bit value would then be in the range -128 to 127 (two's com-
plement) or 0 to 255. Floating values are always interpreted as signed. Bit-
values make no distinction between signed and unsigned.
Bit length
l
Sets the bit lengths for integer and floating data types. Byte sequence and
Word sequence are adjusted according to length value. This also applies to
the numeric fields in the Start position in data.
