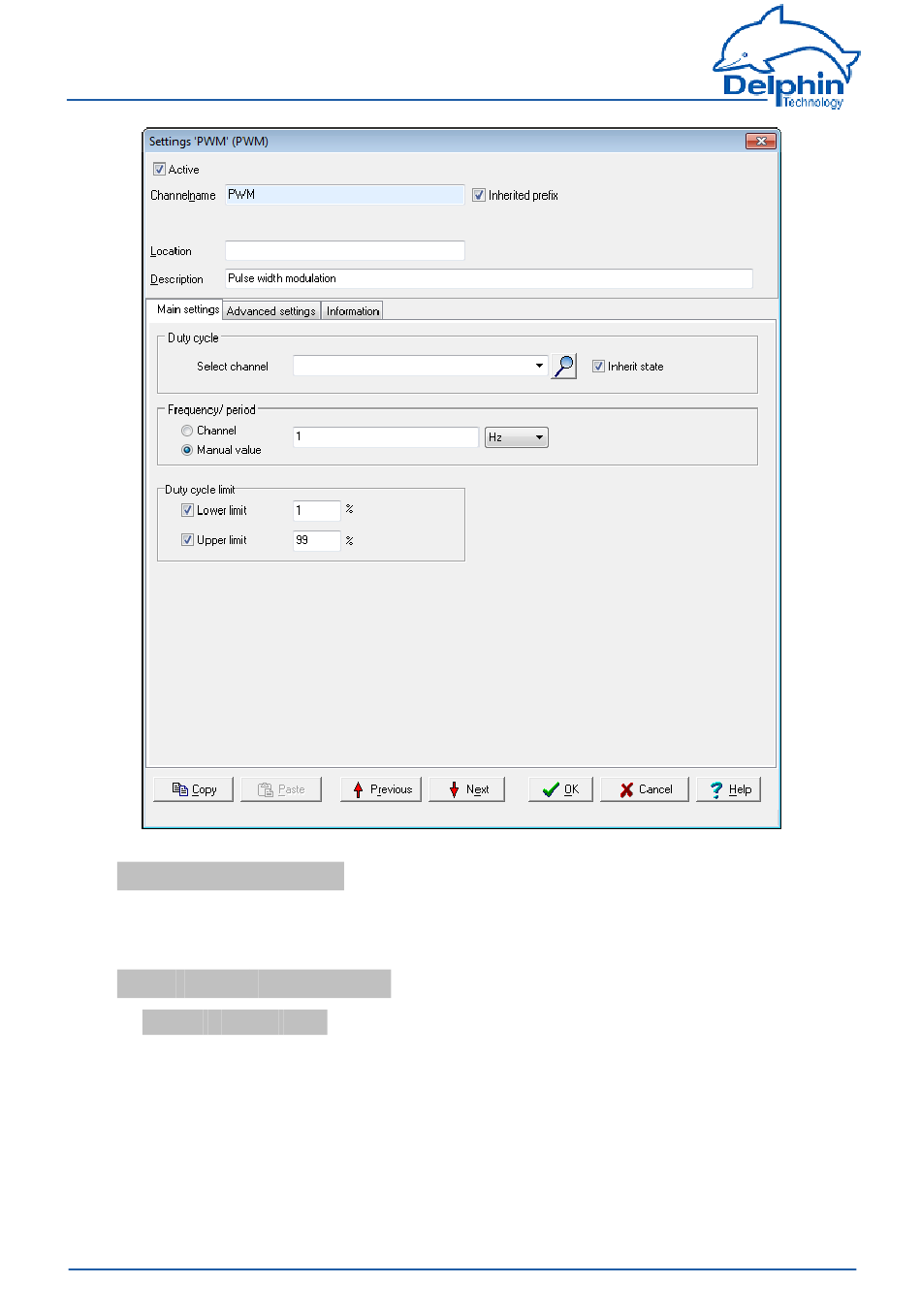

Frequency/period :
Enter either a fixed frequency or time for the period of the fundamental
oscillation or name a channel that provides the appropriate value.
Duty cycle restriction
Lower / upper limit
pulse-pause ratio.
A pulse-pause ratio of 0% means that the PWM output is permanently
switched off. A pulse-pause ratio of 100% means that the PWM output is
permanently switched on. The range of source values is limited to the spe-
cified range.
