Expert Logger

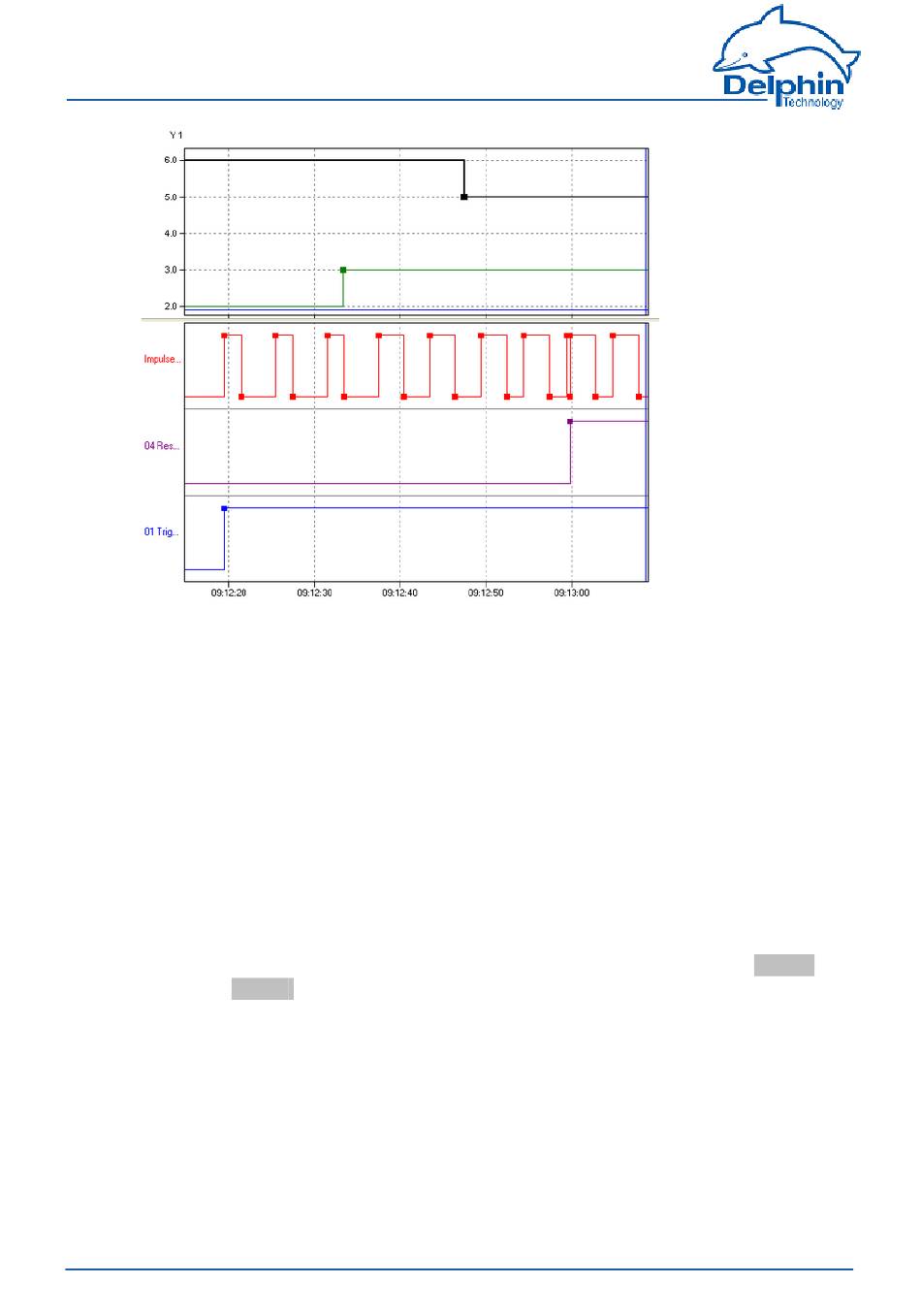

The pulse generator (
curve) with a 2-second pulse duration (
black
time (
green
seconds (
curve) is reduced to 5 seconds. Just before 9:13:00, a reset occurs at the
rising edge of the reset channel. Because the trigger source has a "High"
level, the pulse duration re-starts even though a pulse has already begun.
Example 3
The following examples illustrate the relationship between trigger signal
and reset signal.
a)
Trigger and reset are triggered by channels and are set to Edges
(both) . Then both the signal's rising and falling edges trigger the
event.
