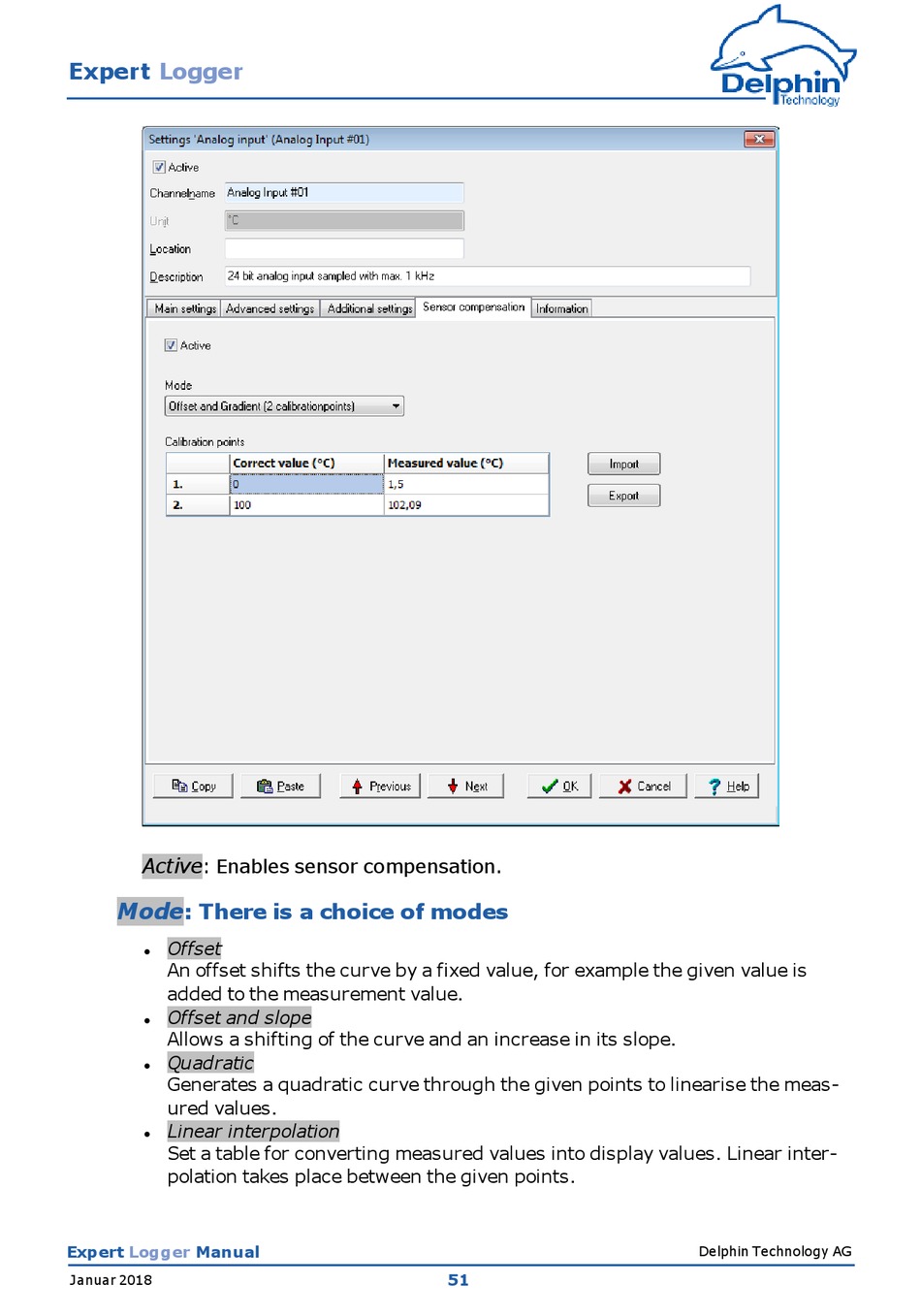

Delphin Expert Logger Manual page 51

Expert Logger
Active
: Enables sensor compensation.
Mode : There is a choice of modes
Offset
l
An offset shifts the curve by a fixed value, for example the given value is
added to the measurement value.
Offset and slope
l
Allows a shifting of the curve and an increase in its slope.
Quadratic
l
Generates a quadratic curve through the given points to linearise the meas-
ured values.
Linear interpolation
l
Set a table for converting measured values into display values. Linear inter-
polation takes place between the given points.
