Device Settings — Opens the
¤
address, DHCP status, and other settings (see
Options – Opens the
¥
default settings, DSP value defaults, and so on (see
Network Audio Control — Opens the Dante Controller application by Audinate for
¦
routing audio over a Dante network (see
Expansion Bus – Contains a submenu to assign a DMP 128 Plus as a Primary or
§
Secondary unit. On DMP 128 Plus AT models, the submenu can assign the expansion
ports to AT channels 33-48 (see

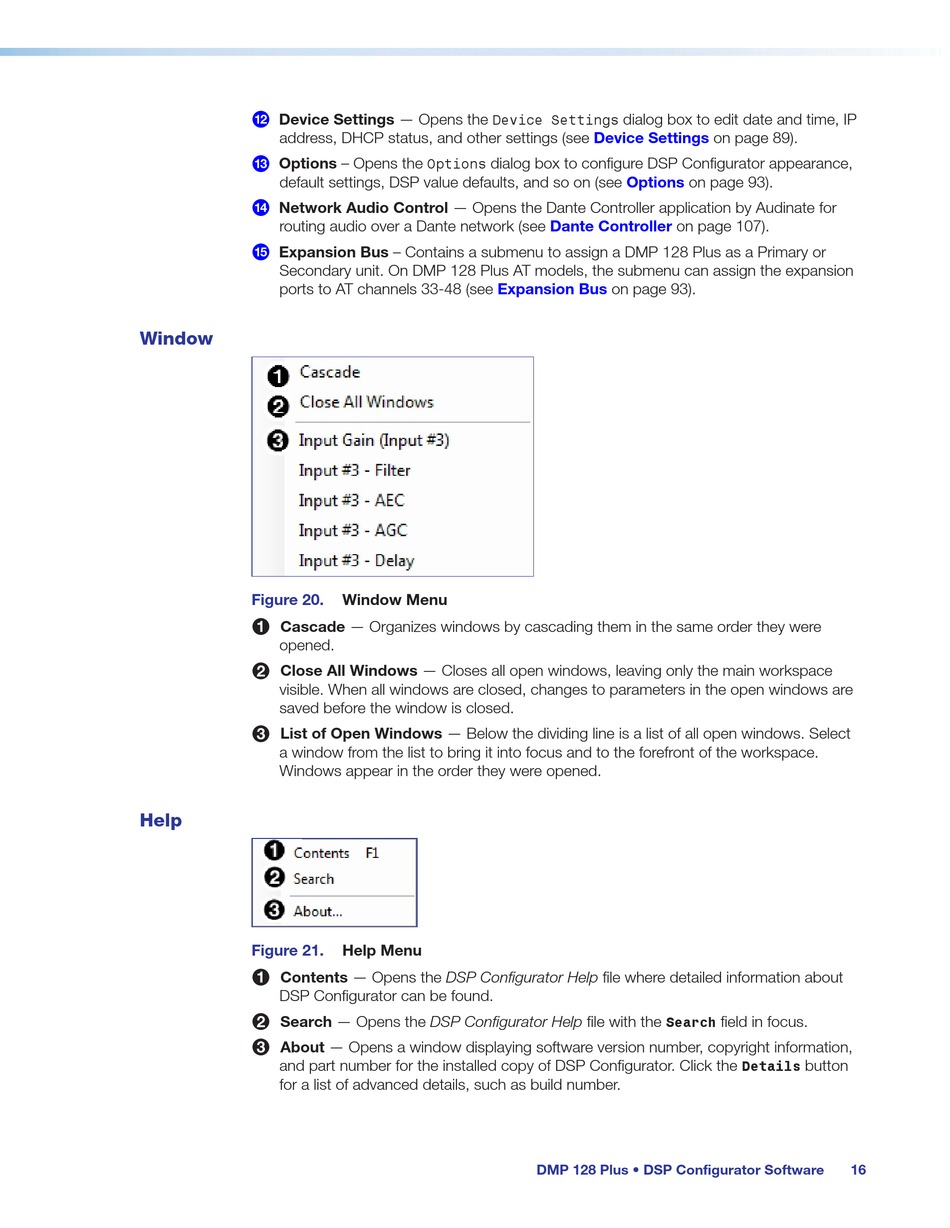

Window

Figure 20.
Cascade — Organizes windows by cascading them in the same order they were
1
opened.
Close All Windows — Closes all open windows, leaving only the main workspace
2
visible. When all windows are closed, changes to parameters in the open windows are
saved before the window is closed.
List of Open Windows — Below the dividing line is a list of all open windows. Select
3
a window from the list to bring it into focus and to the forefront of the workspace.
Windows appear in the order they were opened.

Help

Figure 21.
Contents — Opens the DSP Configurator Help file where detailed information about
1
DSP Configurator can be found.
Search — Opens the DSP Configurator Help file with the
2
About — Opens a window displaying software version number, copyright information,
3
and part number for the installed copy of DSP Configurator. Click the
for a list of advanced details, such as build number.
Device Settings
dialog box to configure DSP Configurator appearance,
Options
Expansion Bus
Window Menu
Help Menu
dialog box to edit date and time, IP
Device Settings on page 89).
Options on page 93).
Dante Controller on page 107).
on page 93).
Search
DMP 128 Plus • DSP Configurator Software
field in focus.
button
Details
