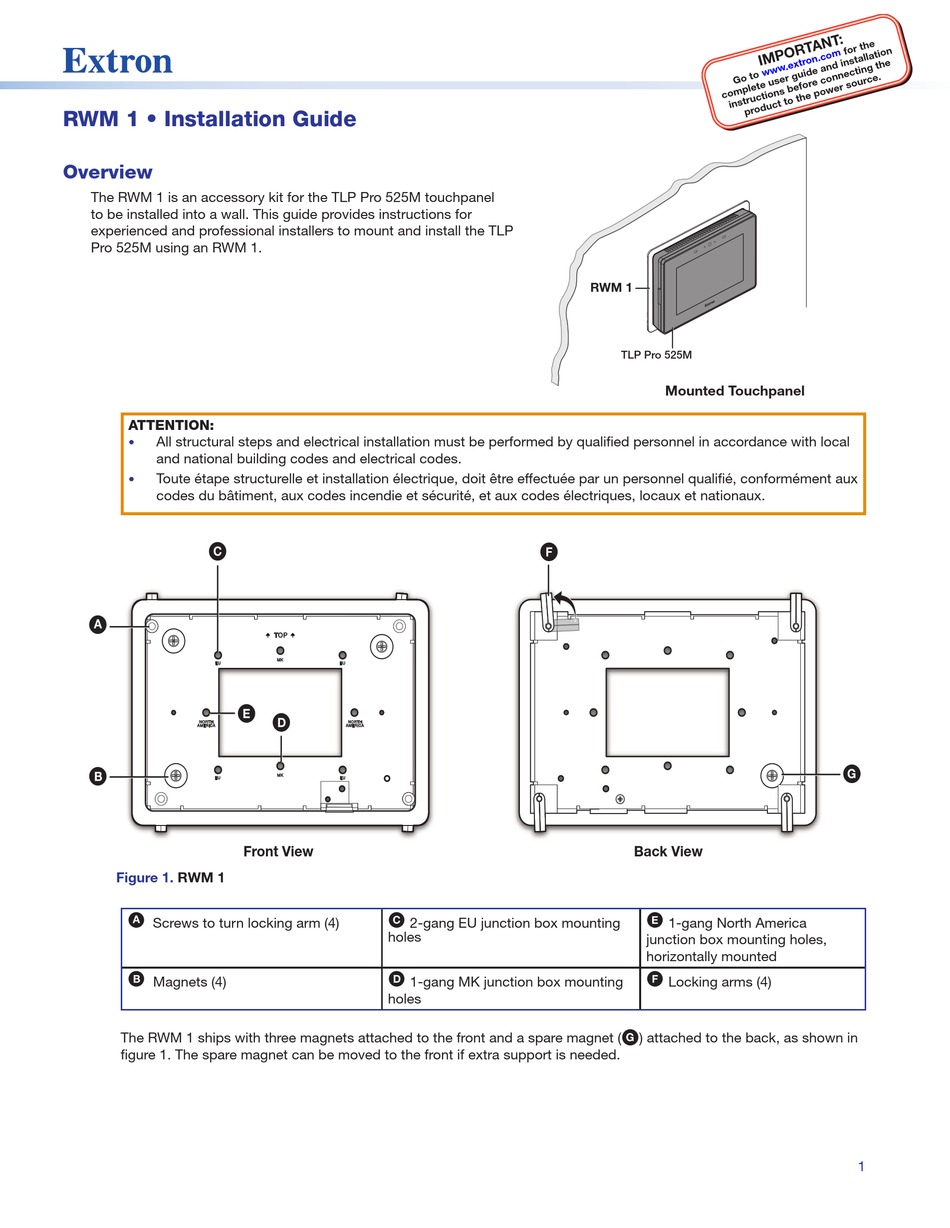

RWM 1 • Installation Guide
Overview
The RWM 1 is an accessory kit for the TLP Pro 525M touchpanel
to be installed into a wall. This guide provides instructions for
experienced and professional installers to mount and install the TLP
Pro 525M using an RWM 1.
ATTENTION:
All structural steps and electrical installation must be performed by qualified personnel in accordance with local
•
and national building codes and electrical codes.
Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux
•
codes du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
C C
A A
EU
E E
NORTH
AMERICA
B B
EU
Figure 1.
RWM 1
A
Screws to turn locking arm (4)
B
Magnets (4)
The RWM 1 ships with three magnets attached to the front and a spare magnet (
figure 1. The spare magnet can be moved to the front if extra support is needed.
TOP
MK
EU
D D
NORTH
AMERICA
MK
EU
Front View
C
2-gang EU junction box mounting
holes
D
1-gang MK junction box mounting
holes
RWM 1
e
TLP Pro 525M
Mounted Touchpanel
F F
Back View
E
1-gang North America
junction box mounting holes,
horizontally mounted
F
Locking arms (4)
G
) attached to the back, as shown in
G G
1
Advertisement
Related Manuals for Extron electronics RWM 1
Summary of Contents for Extron electronics RWM 1
- Page 1 Locking arms (4) holes The RWM 1 ships with three magnets attached to the front and a spare magnet ( ) attached to the back, as shown in figure 1. The spare magnet can be moved to the front if extra support is needed.
- Page 2 Ensure the locking arms ( ) are lying flat against the top and bot- tom of the RWM 1, and insert the RWM 1 into the hole. Use a Philips-head screwdriver to turn and tighten the locking arms against the drywall. The locking arms should hold the RWM 1 securely, but should not be overtightened.
