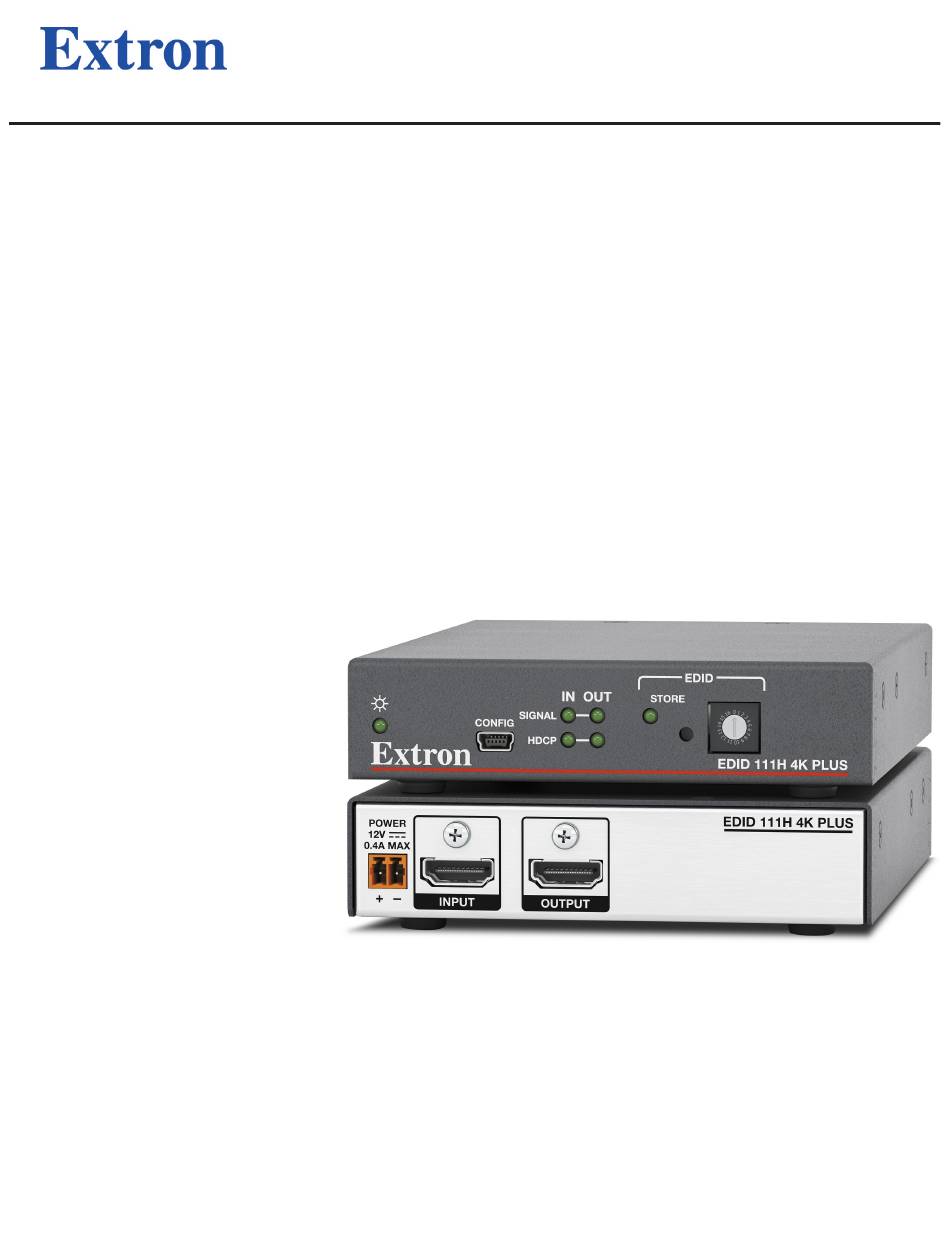

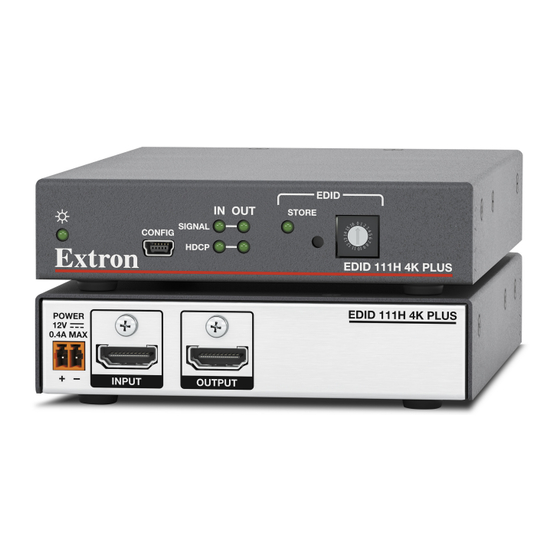

- Page 1 EDID 111H 4K PLUS HDMI EDID Emulator User Guide HDMI 68-3786-01, Rev. A 07 24...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad avvertire WARNING: This symbol, , when used on the product, is intended to l’utente della presenza di tensione non isolata pericolosa all’interno del alert the user of the presence of uninsulated dangerous voltage within the contenitore del prodotto che può...
- Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 警告: 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다. 電壓， 可能會導致觸電之風險。 注意 若產品上使用此符號， 是為了提醒使用者， 設備隨附的用戶手冊中有重要 주의: 이 기호 가...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: Risk of property damage. • • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0 [01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03] *X1&* X2)* X2#*...
-
Page 7: Table Of Contents
Contents Introduction ............................. 1 About this Guide ..............................1 About the EDID 111H 4K PLUS ..........................1 EDID 111H 4K PLUS Features ..........................1 Application Diagram .............................2 Installation and Configuration ....................... 3 Installation Overview ............................3 Front Panel Features ............................3 Rear Panel Features and Cabling ........................4 Securing the HDMI Connector LockIt Lacing Bracket ..................5... - Page 8 EDID 111H 4K PLUS • Contents viii...
-
Page 9: Introduction
Introduction to HDCP 2.3 • Product Configuration Software (PCS) Page The EDID 111H 4K PLUS is housed in a compact one inch tall, quarter rack wide, six inch deep enclosure for discreet installation (see Mounting the EDID 111H 4K PLUS on page 16). -
Page 10: Application Diagram
DTP2 T 211 Transmitter 4K/60 EDID Emulator CATx Cable up to 330' (100m) LINK OUTPUTS POWER OVER DTP2 AUDIO RS-232 --A MAX DTP2 IN Tx Rx Tx Rx Extron DTP2 R 211 Receiver HDMI Projector EDID 111H 4K PLUS • Introduction... -
Page 11: Installation And Configuration
5. Connect power and turn on the video display or distribution system. 6. Apply power to the EDID 111H 4K PLUS ( 7. Turn on the video source. The video source reads the EDID information from the EDID 111H 4K PLUS. Front Panel Features... -
Page 12: Rear Panel Features And Cabling
3/16" (5 mm) Max. Figure 3. 12 VDC Power Connection to EDID 111H 4K PLUS HDMI input — Connect an HDMI source to this female HDMI connector. HDCP 2.3 — When required, the HDMI input negotiates and authenticates HDCP 2.3 Securing with a source device. -
Page 13: Securing The Hdmi Connector Lockit Lacing Bracket
Securing the HDMI Connector LockIt Lacing Bracket Follow these instructions to secure the input connectors to the switcher with the LockIt HDMI lacing bracket provided: Figure 4. LockIt Lacing Bracket Diagram Plug the HDMI cable into the rear panel connection (see figure 4, Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over . -
Page 14: Edid Configuration
EDID from the table of Extron factory EDID (see figure 5). TIP: If access to the EDID 111H 4K PLUS is restricted after mounting and connection, configure it prior to the installation. Assign Extron Factory EDID Rotary switch positions 0 through B are Extron factory EDID. - Page 15 Rotary Switch Native Refresh Rate Type Video Format Audio Position Resolution Format 1280 x 800 60 Hz HDMI 1.3 2-Ch 1600 x 900 60 Hz HDMI 1.3 2-Ch 1920 x 1200 60 Hz HDMI 1.3 2-Ch 2560 x 1440 60 Hz HDMI 1.4 2-Ch 2560 x 1600...
-
Page 16: Configuration Software
Configuration Software The EDID 111H 4K PLUS can be configured using the Extron Product Configuration Software (PCS) or SIS commands. This section covers information on using PCS. Topics in this section include: • Downloading PCS from the Extron Website •... -
Page 17: Starting The Software
Connection) in ascending or descending order. To connect to the EDID 111H 4K PLUS: 1. Click the Device Discovery tab ( 2. Select the EDID 111H 4K PLUS row ( ) and click Connect ( ). The device page opens (see figure 10). -
Page 18: Using The Software
Using the Software See the PCS Software Help file for information on using PCS, and the EDID 111H 4K PLUS Help file for details on configuring and operating this device. To open the PCS Help file: 1. Click the hidden menu icon ( ) to access a drop-down list (see figure 10, 2. -
Page 19: Offline Device Preview
Offline Device Preview The EDID 111H 4K PLUS configuration options can be viewed without connecting to a device, but settings cannot be changed or saved in this mode. To open a device tab: 1. In the Start-up tab drop-down list, select New Configuration File (see figure 11). -
Page 20: Remote Communication And Control
Most responses from the EDID 111H 4K PLUS to the host computer end with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters. -
Page 21: Using The Command And Response Table
= Pipe (vertical bar) character (URL equivalent to carriage return) • = Space = Asterisk character (which is a command character, not a variable) EDID 111H 4K PLUS • Remote Communications and Control... -
Page 22: Command And Response Table For Sis Commands
2 = HDCP sink detected not encrypted 1 = Non-HDCP sink detected 1 = Auto (5V enabled when source with 5V present, else off) = Output 5V mode: 2 = 5V always enabled (default) EDID 111H 4K PLUS • Remote Communications and Control... - Page 23 H Active*V Active*V Freq*Pixel Clock Information Inf33*H Active*V Active*V Freq*Pixel Clock Query Firmware Version n.nn.nnnn Verbose Mode 2/3 Ver01*n.nn Query Firmware Version with n.nn.nnnn Bldn.nn.nnnn Build Verbose Mode 2/3 Reset Setting to Default ZXXX EDID 111H 4K PLUS • Remote Communications and Control...
-
Page 24: Reference Information
The one inch high, quarter-rack width, six inch deep enclosure can be mounted on a rack shelf, under a desk or table-top, or set on a table. Desktop Placement Attach the four provided rubber feet to the bottom of the EDID 111H 4K PLUS, and place it in any convenient location. Rack Mounting... -
Page 25: Connecting To The Usb Port
USB port. Connect a USB A to mini B cable between the Config port on the front panel of the EDID 111H 4K PLUS and a USB port of the PC (see figure 14). -
Page 26: Dataviewer
ASCII or hexadecimal format. Command and response logs can be saved in text or HTML format. DataViewer is available at www.extron.com. Enter DataViewer in the search engine to locate the program. Download the installation file and load the program on the PC connected to the EDID 111H 4K PLUS. NOTES: •... -
Page 27: Updating The Firmware
5. Locate the downloaded executable installer file in your file browser and double-click it. 6. Follow the instructions on the Installation Wizard dialog boxes to install Firmware Loader. Unless otherwise specified, the installer program places the Firmware Loader File, FWLoader.exe, at C:\Program Files(x86)\Extron\FWLoader. EDID 111H 4K PLUS • Reference Information... -
Page 28: Downloading Edid 111H 4K Plus Firmware
Installing Firmware with Firmware Loader 1. Connect the EDID 111H 4K PLUS front panel USB Configuration port to your computer. 2. Open Firmware Loader and establish a connection between the computer and the device. The Add dialog box opens (see figure 16). - Page 29 9. Click Begin (see figure 17, Figure 17. Firmware Loader Main Window 10. Close Firmware Loader when the Remaining Time field shows 00.00.00, the Progress column shows 100%, and the Status field shows Completed. EDID 111H 4K PLUS • Reference Information...
- Page 30 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
