Using the VoIP Web Page

Home Page
The page displays high level information about the DMP 128 Plus VoIP configuration.
Home
Navigation Tabs
1
VoIP Status Panel
2

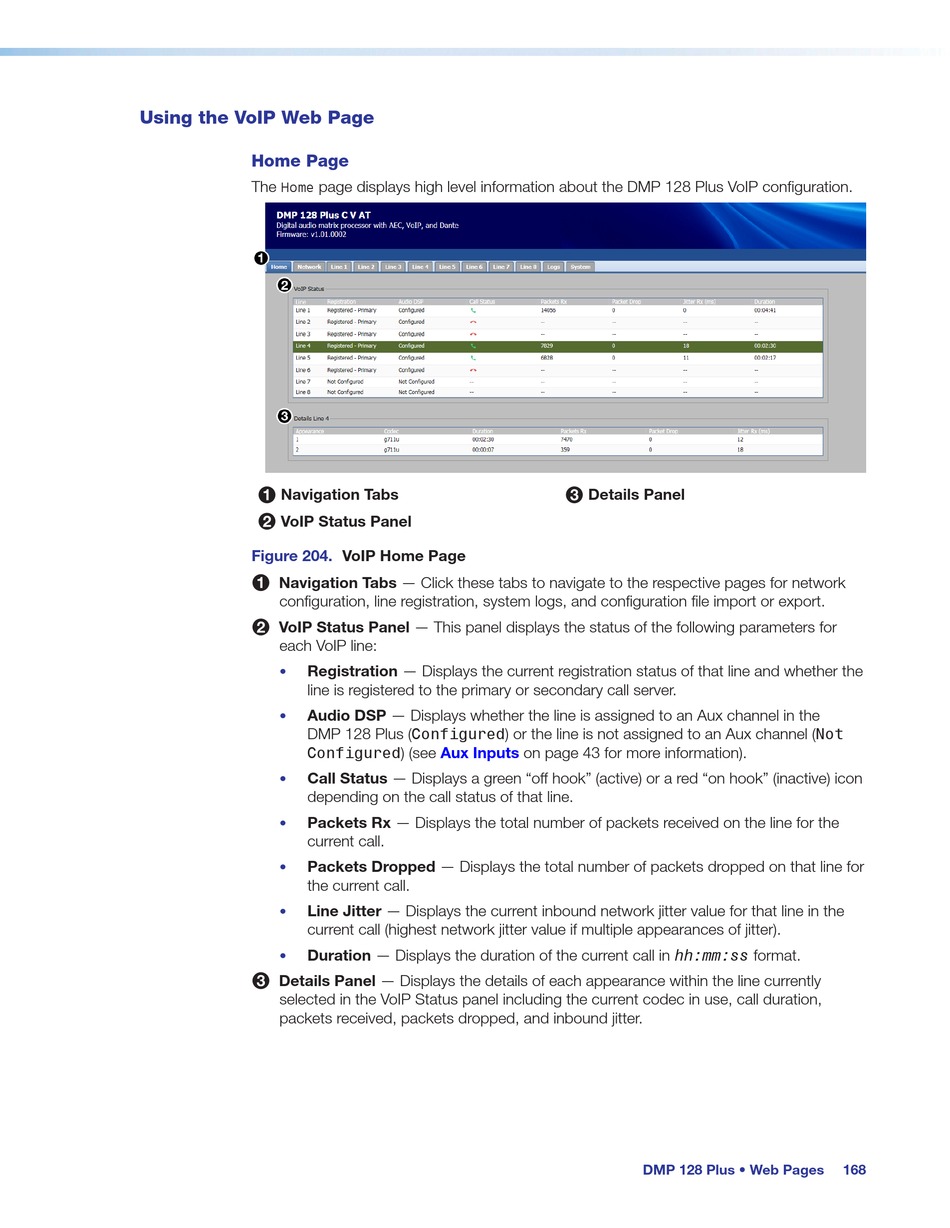

Figure 204.
Navigation Tabs — Click these tabs to navigate to the respective pages for network
1
configuration, line registration, system logs, and configuration file import or export.
VoIP Status Panel — This panel displays the status of the following parameters for
2
each VoIP line:
Registration — Displays the current registration status of that line and whether the
•
line is registered to the primary or secondary call server.
Audio DSP — Displays whether the line is assigned to an Aux channel in the
•
DMP 128 Plus (Configured) or the line is not assigned to an Aux channel (Not
Configured) (see
Call Status — Displays a green "off hook" (active) or a red "on hook" (inactive) icon
•
depending on the call status of that line.
Packets Rx — Displays the total number of packets received on the line for the
•
current call.
Packets Dropped — Displays the total number of packets dropped on that line for
•
the current call.
Line Jitter — Displays the current inbound network jitter value for that line in the
•
current call (highest network jitter value if multiple appearances of jitter).
Duration — Displays the duration of the current call in hh:mm:ss format.
•
Details Panel — Displays the details of each appearance within the line currently
3
selected in the VoIP Status panel including the current codec in use, call duration,
packets received, packets dropped, and inbound jitter.
VoIP Home Page
Aux Inputs
Details Panel
3
on page 43 for more information).
DMP 128 Plus • Web Pages 168
