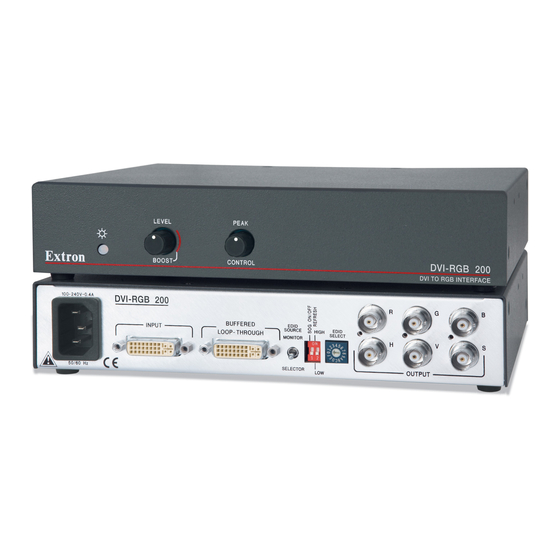

Extron electronics DVI-RGB 200 User Manual

Dvi to analog rgb video interface
Hide thumbs Also See for DVI-RGB 200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual
User Guide
Interfaces
DVI-RGB 200
DVI to Analog RGB Video Interface
68-1791-01 Rev. A
10 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVI-RGB 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics DVI-RGB 200

Summary of Contents for Extron electronics DVI-RGB 200

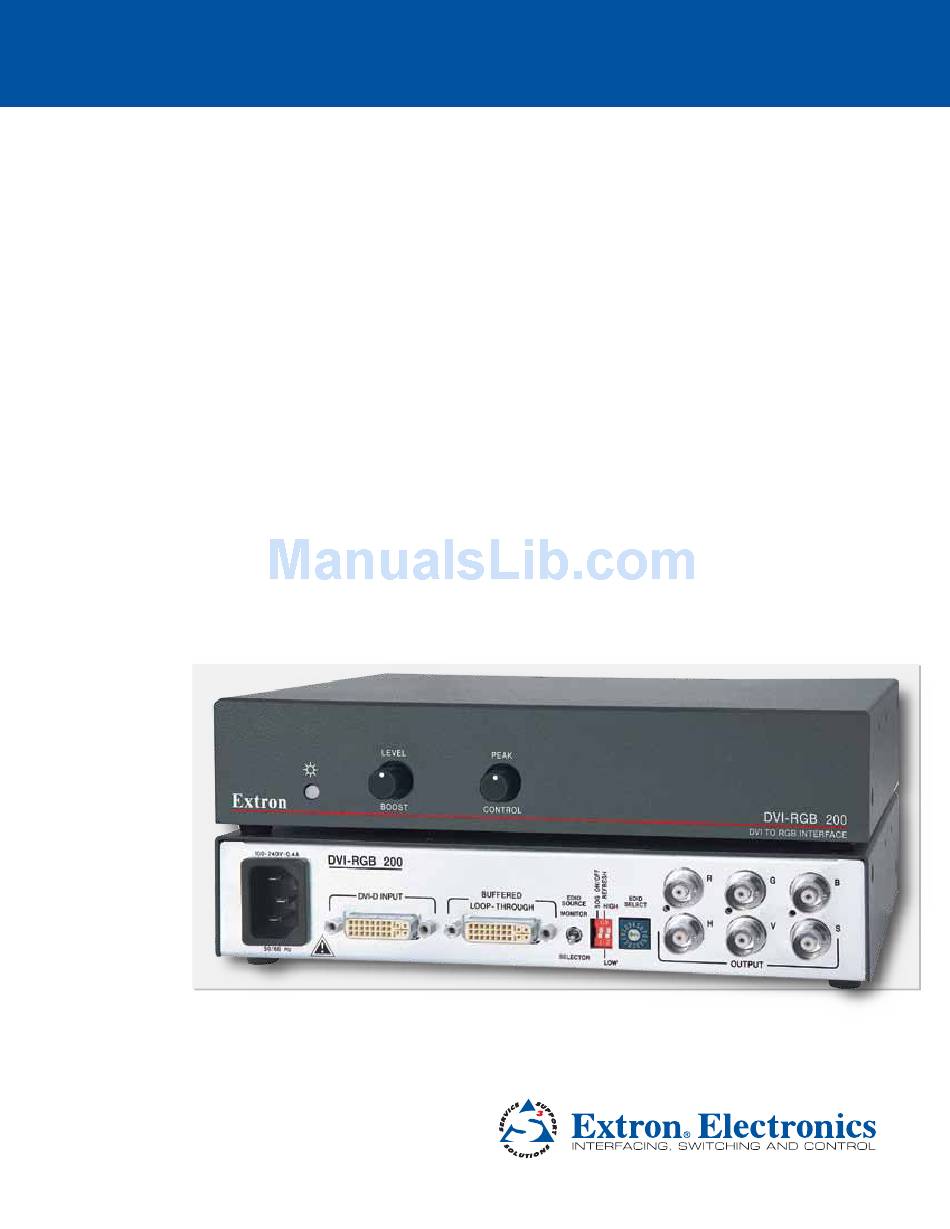

  • Page 1 User Guide Interfaces DVI-RGB 200 DVI to Analog RGB Video Interface 68-1791-01 Rev. A 10 10...
  • Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Mounting the Interface ........10 DVI Connector Pin Assignments ....4 Tabletop Use ..........10 Front Panel Controls and Indicator ....5 Rack Shelf Mounting ........10 Operation ............6 Furniture Mounting ........12 Capturing a User-recorded EDID ....6 DVI-RGB 200 • Contents...
  • Page 5 DVI-RGB 200 • Contents...

  • Page 6: Introduction

    Introduction The Extron DVI-RGB 200 DVI to analog RGB video interface converts DVI digital video to analog RGB video. The interface accepts a single link of digital-only Digital Visual Interface (DVI-D) video from a computer, or other digital video source device, on a standard 29-pin female DVI-I connector.

  • Page 7: Installation And Operation

    Operation Installation Overview Follow these steps to install and set up an Extron DVI-RGB 200 for operation: Turn off all of the equipment. Ensure that the video sources and the output display are all turned off and disconnected from the power source.

  • Page 8: Rear Panel Connections And Controls

    50 Hz 60 1600x1200 50 Hz 60 1280x800 50 Hz 60 NOTE: Many monitors will not support all of the resolutions and refresh rates shown. If you get no display, try a different rate. DVI-RGB 200 • Installation and Operation...

  • Page 9: Dvi Connector Pin Assignments

    DVI-RGB 200 to not operate correctly. • The missing connectors on the included DVI cable (TMDS data 3, 4, and 5) are not required for the single link of DVI-D data supported by the DVI-RGB 200. These pins are grayed out in figure 3.

  • Page 10: Front Panel Controls And Indicator

    Power LED — The two-tone Power LED lights amber or green: • Amber when the DVI-RGB 200 is receiving power but no DVI input signal is applied. • Green when the DVI-RGB 200 is receiving power and a DVI input is present.

  • Page 11: Operation

    Operation After the DVI-RGB 200 and its connected devices are powered up, the system is fully operational. If you encounter any problems, verify that the cables are routed and connected properly. NOTES: • High-bandwidth Digital Content Protection (HDCP) is an encryption method that protects copyrighted digital entertainment material that uses DVI video.

  • Page 12: Reference Information

    The DVI-RGB 200 converts a single link DVI signal to an analog RGB signal NOTES: • • Using an adaptor (the Extron HDMI to DVI-D adapter, part #26-616-01), the DVI-RGB 200 can accept HDMI signals. It converts HDMI digital RGB signals, but does not support the HDMI digital component (YCrCb) signal format.
  • Page 13 Compliances ......CE, C-tick, FCC Class A, ICES, VCCI MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTES: • All nominal levels are at ±10%. • Specifications are subject to change without notice DVI-RGB 200 • Reference Information...

  • Page 14: Part Numbers

    Part Numbers Interface Part Numbers These items are included in each order for a DVI-RGB 200: Interface and included parts Part number DVI-RGB 200 60-1064-01 IEC power cord Tweeker (small screwdriver) DVI-RGB 200 Setup Guide Mounting Accessories Mounting Kit Part Number...

  • Page 15: Mounting The Interface

    Mounting the Interface CAUTION: Installation and service must be performed by authorized personnel only. The 1U high, half rack width DVI-RGB 200 can be placed on a tabletop, mounted on a rack shelf, or mounted under a desk or tabletop. Tabletop Use Affix the four included rubber feet to the bottom of the unit and place it in any convenient location.
  • Page 16 Install blank faceplate(s) or other unit(s) on the rack shelf. Attach the rack shelf to the rack using the supplied bolts. 1U Universal Rack Shelf Figure 6. Mounting the Unit on a Universal Rack Shelf DVI-RGB 200 • Reference Information...

  • Page 17: Furniture Mounting

    Align the installed screws with the slots in the mounting brackets, and place the interface against the surface, with the screws through the bracket slots. Slide the interface slightly forward or back, then tighten all four screws to fasten it in place. DVI-RGB 200 • Reference Information...
  • Page 18 If the screws are inaccessible to a screwdriver: Mark the location of the brackets relative to the screws. Remove the interface from inside the furniture. Tighten the screws. Replace the unit inside the surface (step 5). DVI-RGB 200 • Reference Information...
  • Page 19 Extron Warranty ® Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
