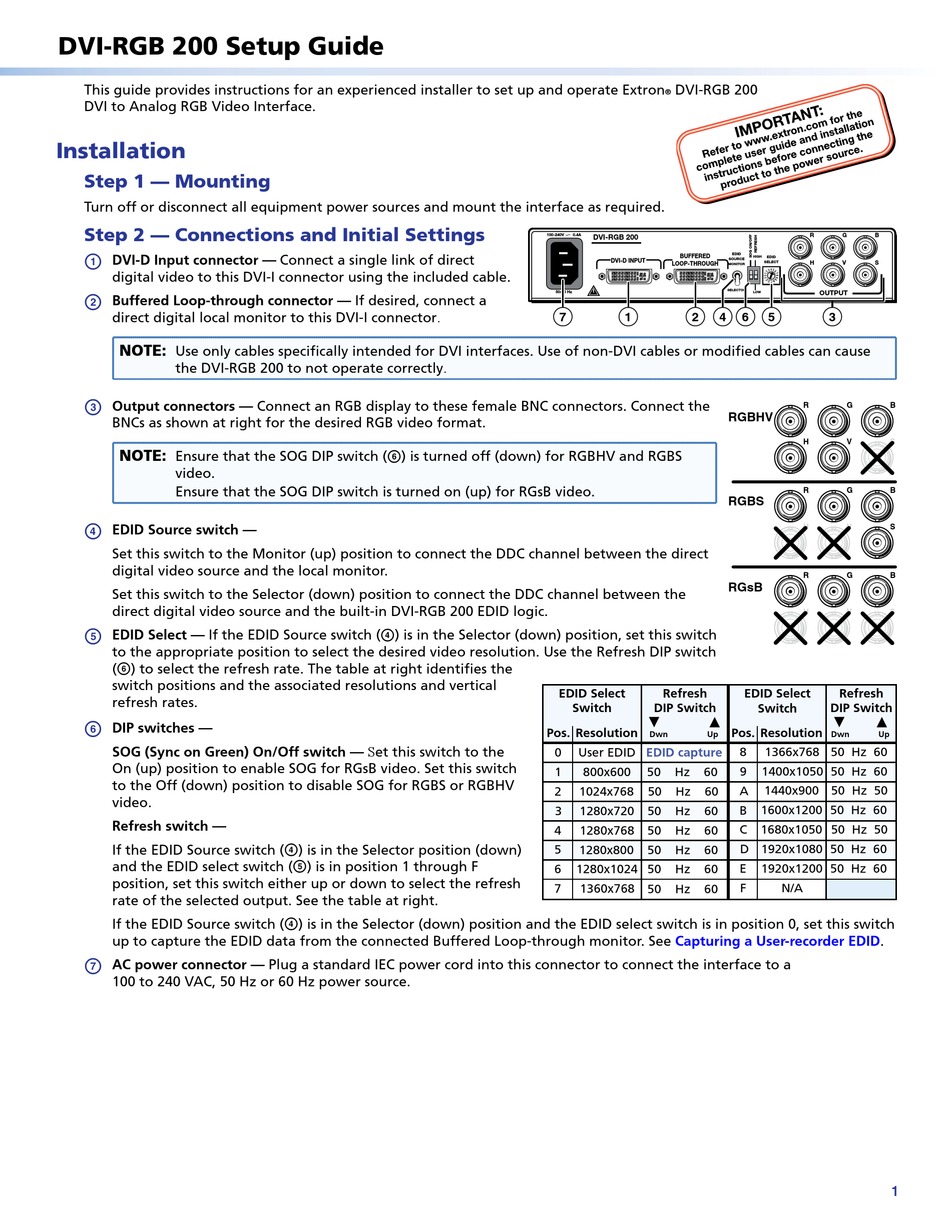

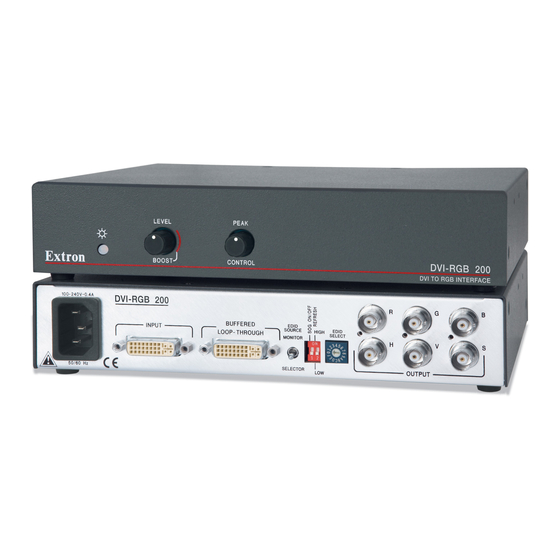

DVI-RGB 200 Setup Guide
This guide provides instructions for an experienced installer to set up and operate Extron
DVI to Analog RGB Video Interface.

Installation

Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the interface as required.
Step 2 — Connections and Initial Settings
a
DVI-D Input connector — Connect a single link of direct
digital video to this DVI-I connector using the included cable.
b
Buffered Loop-through connector — If desired, connect a
direct digital local monitor to this DVI-I connector.
NOTE:
Use only cables specifically intended for DVI interfaces. Use of non-DVI cables or modified cables can cause
the DVI-RGB 200 to not operate correctly.
c
Output connectors — Connect an RGB display to these female BNC connectors. Connect the
BNCs as shown at right for the desired RGB video format.
NOTE:
Ensure that the SOG DIP switch (
video.
Ensure that the SOG DIP switch is turned on (up) for RGsB video.
d
EDID Source switch —
Set this switch to the Monitor (up) position to connect the DDC channel between the direct
digital video source and the local monitor.
Set this switch to the Selector (down) position to connect the DDC channel between the
direct digital video source and the built-in DVI-RGB 200 EDID logic.
e
EDID Select — If the EDID Source switch (
to the appropriate position to select the desired video resolution. Use the Refresh DIP switch
f
( ) to select the refresh rate. The table at right identifies the
switch positions and the associated resolutions and vertical
refresh rates.
f
DIP switches —
SOG (Sync on Green) On/Off switch — Set this switch to the
On (up) position to enable SOG for RGsB video. Set this switch
to the Off (down) position to disable SOG for RGBS or RGBHV
video.
Refresh switch —
If the EDID Source switch (
and the EDID select switch (
position, set this switch either up or down to select the refresh
rate of the selected output. See the table at right.
If the EDID Source switch (
up to capture the EDID data from the connected Buffered Loop-through monitor. See
g
AC power connector — Plug a standard IEC power cord into this connector to connect the interface to a
100 to 240 VAC, 50 Hz or 60 Hz power source.
f
) is turned off (down) for RGBHV and RGBS
d
) is in the Selector (down) position, set this switch
d
) is in the Selector position (down)
e
) is in position 1 through F
d
) is in the Selector (down) position and the EDID select switch is in position 0, set this switch
DVI-RGB 200
®
100-240V 0.4A
DVI-RGB 200
BUFFERED
DVI-D INPUT
LOOP-THROUGH
50/60 Hz
7 1 2 4
EDID Select Refresh
Switch DIP Switch
< >
Pos. Resolution
Dwn Up
0 User EDID EDID capture
1 800x600 50 Hz 60
2 1024x768 50 Hz 60
3 1280x720 50 Hz 60
4 1280x768 50 Hz 60
5
1280x800 50 Hz 60
6 1280x1024 50 Hz 60
7 1360x768
50 Hz 60
Capturing a User-recorder
R G B
EDID
HIGH EDID
SOURCE
SELECT H V S
MONITOR
SELECTOR OUTPUT
LOW
6 5 3
R G B
RGBHV
H V S
R G B
RGBS
H V S
R G B
RGsB
H V S
EDID Select Refresh
Switch DIP Switch
< >
Pos. Resolution
Dwn Up
8 1366x768 50 Hz 60
9 1400x1050 50 Hz 60
1440x900 50 Hz 50
A
B 1600x1200 50 Hz 60
1680x1050 50 Hz 50
C
D 1920x1080 50 Hz 60
E 1920x1200 50 Hz 60
F N/A
EDID.
