Technical Explanation > Fixing System > Overview > Specifications

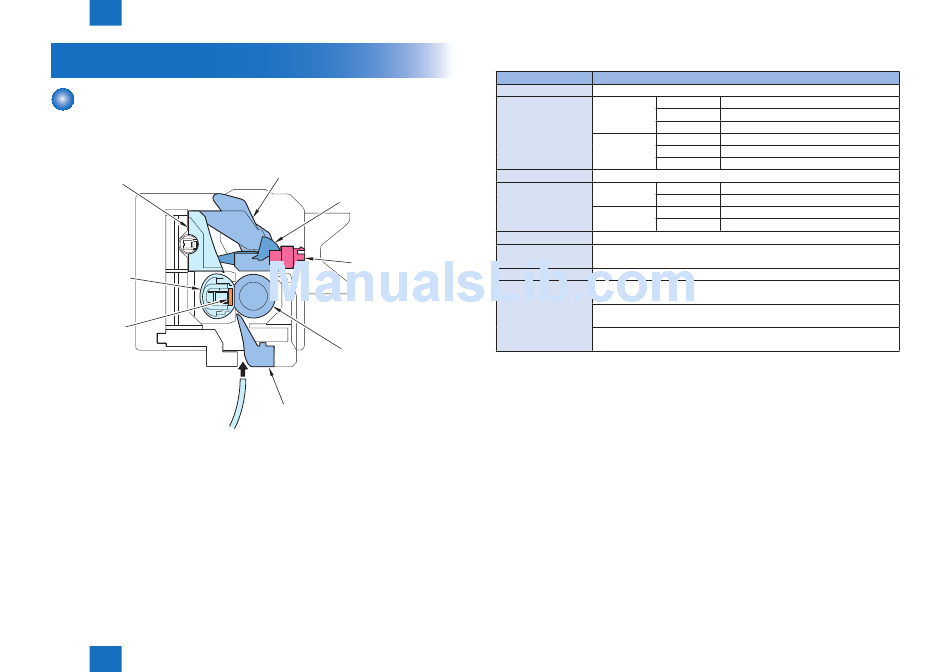

Fixing System
Overview
■ Features
This machine uses the on-demand fixing method.
Fixing Delivery Upper Guide
Separation Guide
Fixing Film
Fixing Heater
2
Technical Explanation > Fixing System > Overview > Specifications
Fixing Delivery
Detection Flag
Delivery Sensor
(PS12)
Pressure Roller
Fixing Inlet Guide
F-2-104
■ Specifications
Item
Fixing method
On-demand fixing
Fixing speed
35-ppm model 1/1 speed
2/3 speed
1/2 speed
25-ppm model 1/1 speed
2/3 speed
1/2 speed
Fixing Heater
Ceramic Heater
Control temperature
35-ppm model plain paper 1
plain paper 2
25-ppm model plain paper 1
plain paper 2
Temperature Control
Main Thermistor
Edge temperature
Down sequence
rising control
Fixing Arch Control
Arch Sensor
Protection function
Main Thermistor
(Rated operational temperature: 265 deg C)
Sub Thermistor
(Rated operational temperature: 290 deg C)
Thermoswitch
(Rated operational temperature: 240 deg C)
* If the temperature is under 50 deg C at the start of startup or the environment temperature
is 23 deg C
Varies depending on the temperature at the start of startup and environment temperature
+10 deg C if the paper width is A4R or larger
2-71
Function/method
200 mm/sec
135 mm/sec
100 mm/sec
-
135 mm/sec
100 mm/sec
*
*
Full Color: 200 deg C
Black: 195 deg C
Full Color: 210 deg C
*
Black: 205 deg C
*
Full Color: 175 deg C
*
Black: 170 deg C
*
*
*
Full Color: 185 deg C
Black: 180 deg C
T-2-38
2-71
