Canon imageRUNNER C1335 Series Service Manual page 301

4
Disassembly/Assembly > Pickup/Feed System > Removing the Multi-purpose Tray Pickup Roller /Multi-purpose Tray Separation Roller /Multi-purpose Tray Feed Roller > Procedure

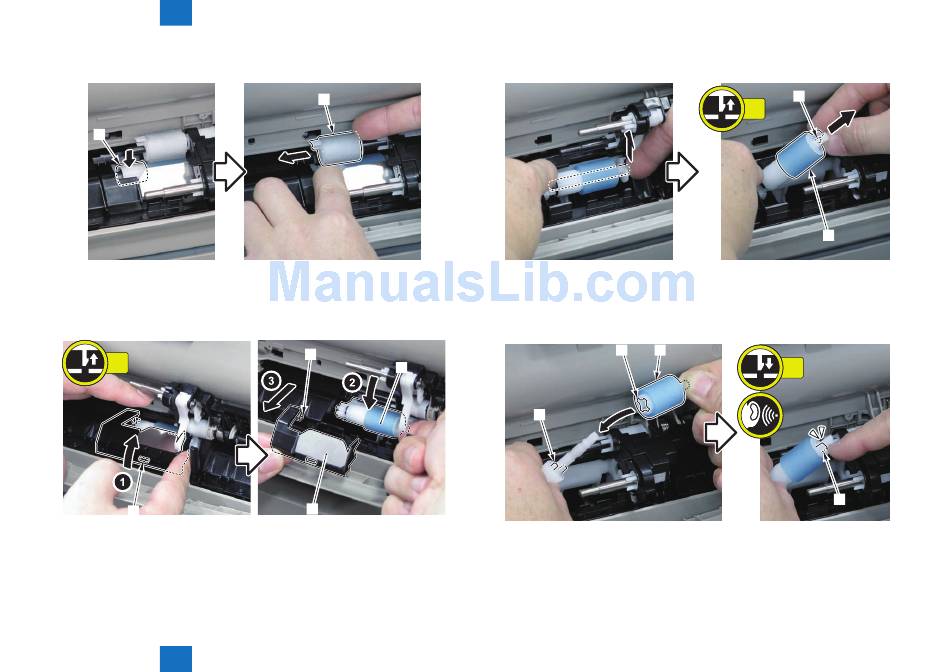

When removing the Multi-purpose Tray Feed Roller
4) Remove the Multi-purpose Tray Feed Roller [2] while pressing the Torque Limiter [1].
[1]
When removing the Multi-purpose Tray Separation Roller
5) Remove he Multi-purpose Tray Feed Guide [2] while pressing the Multi-purpose Tray
Separation Roller [1].
• 2 Claws [3]
2x
[3]
4 Disassembly/Assembly > Pickup/Feed System > Removing the Multi-purpose Tray Pickup Roller /Multi-purpose Tray Separation Roller /Multi-purpose Tray Feed Roller > Procedure
[2]
F-4-389
[3]
[1]
[2]
F-4-390
6) Remove the Multi-purpose Tray Separation Roller [1].
• 1 Claw [2]
● Assembling Procedure
1) Align the groove [A] of the Multi-purpose Tray Separation Roller [1] with the protrusion [B]
of the Torque Limiter to install.
• 1 Claw [2]
[A] [1]
[B]
4-151
[2]
1x
[1]
F-4-391
1x
[2]
F-4-392
4-151
