Canon imageRUNNER C1335 Series Service Manual page 304

4

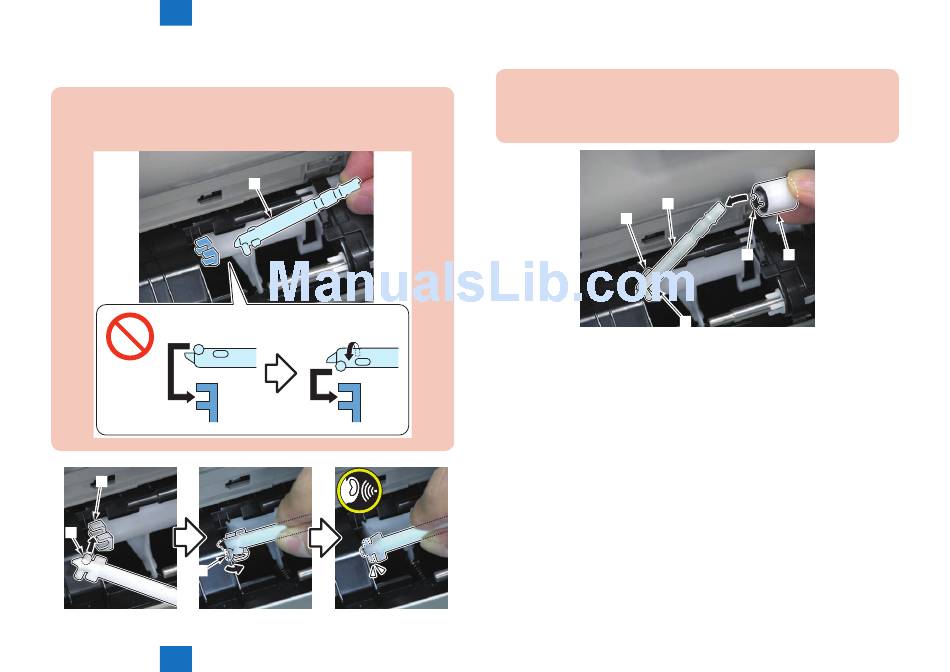

Disassembly/Assembly > Pickup/Feed System > Reassembling when the Multi-purpose Tray Separation Roller Shaft is detached
● Procedure
1) Hook the 2 shafts [2] on the 2 hooks [1].
CAUTION:
When assembling the Multi-purpose Tray Separation Roller Shaft [3], pay attention to
the direction of installing it.
[1]
[2]
[2]
4 Disassembly/Assembly > Pickup/Feed System > Reassembling when the Multi-purpose Tray Separation Roller Shaft is detached
[3]
F-4-400
F-4-401
2) Assemble the Torque Limiter [2] on the Multi-purpose Tray Separation Roller Shaft [1].
CAUTION:
Be sure to align the groove [B] of the Torque Limiter [2] with the protrusion [B] of the
Multi-purpose Tray Separation Roller Shaft [1] to assemble them.
[1]
[A]
[A]
Be sure to reassemble according to steps 7 to 1 by referring to the Assembly Procedure.
4-154
[B] [2]
F-4-402
4-154
