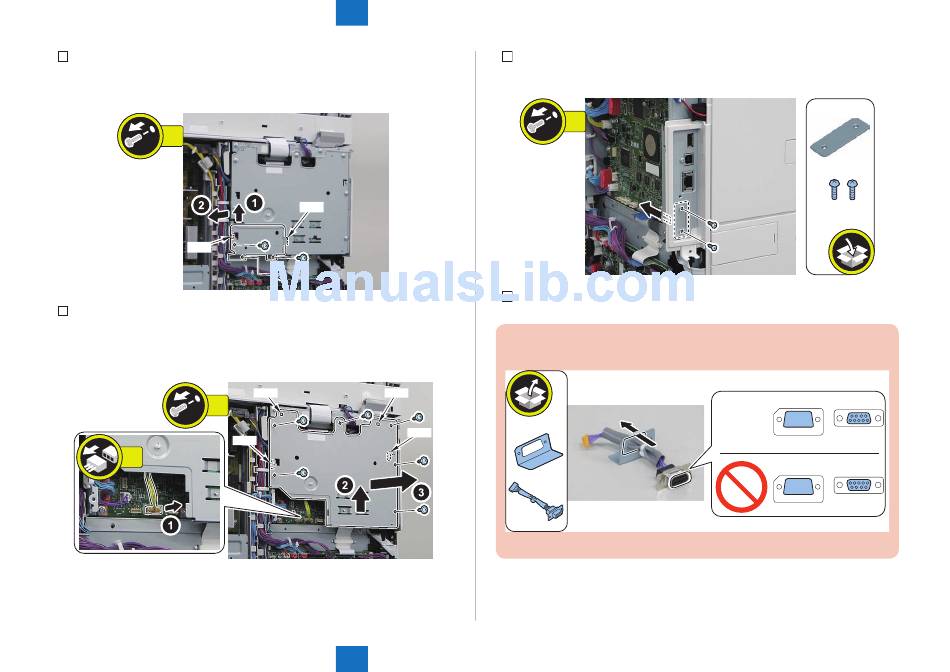

6) Remove the Sub Cover of the Controller Box Cover.
• 3 Screws
• 2 Hooks
3x
Hook
7) Disconnect the connector, and remove the Controller Box Cover.
• 6 Screws
• 2 Hooks
• 2 Bosses
6x
Hook
1x
9
Installation > Copy Control Interface Kit-C1 > Installation Procedure
Hook
F-9-10
Boss
Boss
Hook
F-9-11
9
Installation > Copy Control Interface Kit-C1 > Installation Procedure
8) Remove the Face Plate. (Removed Face Plate will not be used.)
• 2 Screws (Removed screws will be not be used.)
2x
9) Pass the connector of the CC-VI Cable through the D-SUB Support Plate.
CAUTION:
Install the D-SUB Support Plate as shown in the figure.
9-6
F-9-12
F-9-13
9-6
