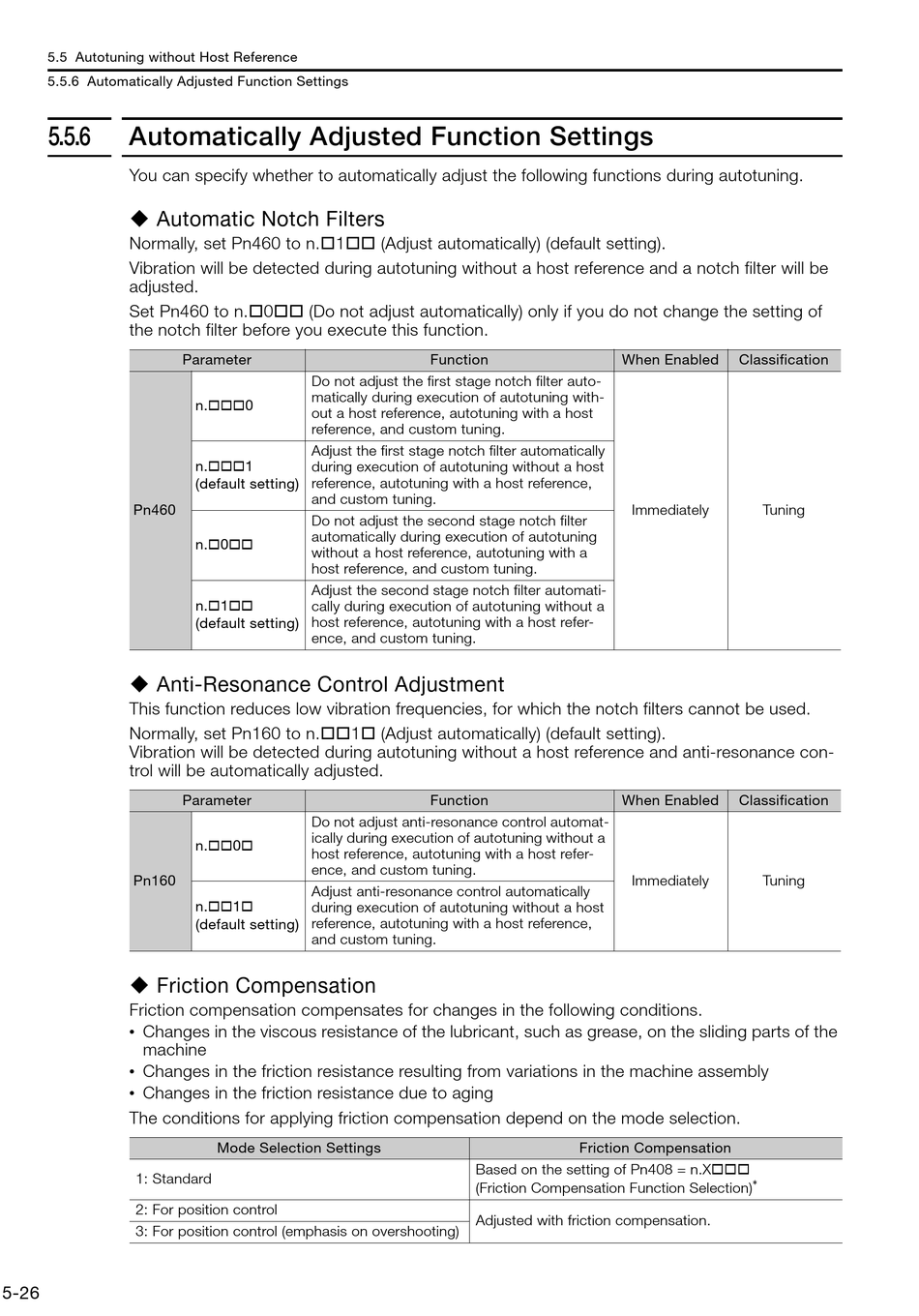

5.5 Autotuning without Host Reference

5.5.6 Automatically Adjusted Function Settings

5.5.6

Automatically Adjusted Function Settings

You can specify whether to automatically adjust the following functions during autotuning.
 Automatic Notch Filters
Normally, set Pn460 to n.1 (Adjust automatically) (default setting).
Vibration will be detected during autotuning without a host reference and a notch filter will be
adjusted.
Set Pn460 to n.0 (Do not adjust automatically) only if you do not change the setting of
the notch filter before you execute this function.
Pn460
 Anti-Resonance Control Adjustment
This function reduces low vibration frequencies, for which the notch filters cannot be used.
Normally, set Pn160 to n.1 (Adjust automatically) (default setting).
Vibration will be detected during autotuning without a host reference and anti-resonance con-
trol will be automatically adjusted.
Pn160
 Friction Compensation
Friction compensation compensates for changes in the following conditions.
• Changes in the viscous resistance of the lubricant, such as grease, on the sliding parts of the
machine
• Changes in the friction resistance resulting from variations in the machine assembly
• Changes in the friction resistance due to aging
The conditions for applying friction compensation depend on the mode selection.
1: Standard
2: For position control
3: For position control (emphasis on overshooting)
5-26
Parameter
Do not adjust the first stage notch filter auto-
matically during execution of autotuning with-

n. 0
out a host reference, autotuning with a host
reference, and custom tuning.
Adjust the first stage notch filter automatically

n. 1
during execution of autotuning without a host
(default setting) reference, autotuning with a host reference,
and custom tuning.
Do not adjust the second stage notch filter
automatically during execution of autotuning
 
n. 0
without a host reference, autotuning with a
host reference, and custom tuning.
Adjust the second stage notch filter automati-
 
n. 1
cally during execution of autotuning without a
host reference, autotuning with a host refer-
(default setting)
ence, and custom tuning.
Parameter
Do not adjust anti-resonance control automat-
ically during execution of autotuning without a
 
n. 0
host reference, autotuning with a host refer-
ence, and custom tuning.
Adjust anti-resonance control automatically
 
n. 1 during execution of autotuning without a host
reference, autotuning with a host reference,
(default setting)
and custom tuning.
Mode Selection Settings
Function
Function
Friction Compensation
Based on the setting of Pn408 = n.X
(Friction Compensation Function Selection)
Adjusted with friction compensation.
When Enabled Classification
Immediately Tuning
When Enabled Classification
Immediately Tuning
*
