Table 39: Controller LED status and description (front panel) (continued)
No. LED
7
Fault or Alarm
LEDs
(Critical, Major,
Minor)
8
User Alarm LED

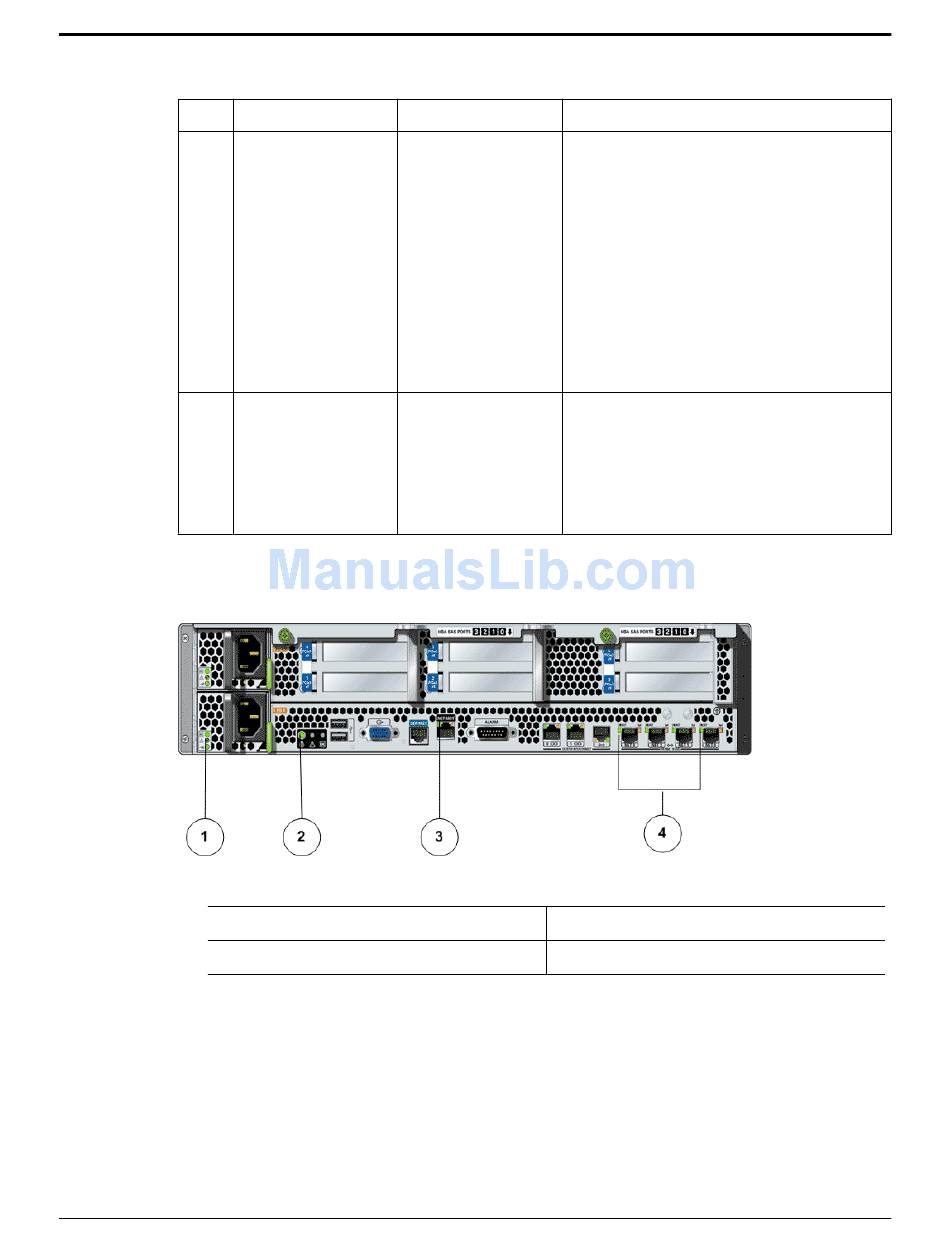

The following figure shows the LEDs at the back of the Controller:

Figure 103: Controller back LEDs

Legend
1 Power supply status LEDs
2 Chassis Status LEDs
The following table provides information on the LEDS at the back of the
Controller:
LED color Status
Critical
• Note: The alarm indicators appear on
Alarm
the front panel of the Controller but
LED : Red
are not applicable for the Oracle FS
System.
Major
•
Alarm
LED: Red
Minor
•
Alarm
LED:
Amber
Amber Indicates a user alarm condition.
Note: The alarm indicators appear on
the front panel of the Controller but
are not applicable for the Oracle FS
System.
3 Network management LED
4 Net0 to Net3 status LEDs
Oracle FS System LED Status
