Chapter 8: Wiring Diagrams; Pilot Management Interface Wiring Diagram; Figure 79: Pilot Wiring Diagram (Management Connectivity) - Oracle FS1-2 Installation Manual

C 8
HAPTER
Wiring Diagrams

Pilot Management Interface Wiring Diagram

Cabling the Pilot management interface involves connecting the two Pilot nodes,
connecting the Pilots to the Controllers, and connecting the Pilots to the customer
management network.
The following figure illustrates the cabling of the Pilot management interface.
Note: The colors of the cables that are shown in the figure are for illustration
purposes and do not reflect the actual colors of the cables that are used to cable
the Oracle FS System.

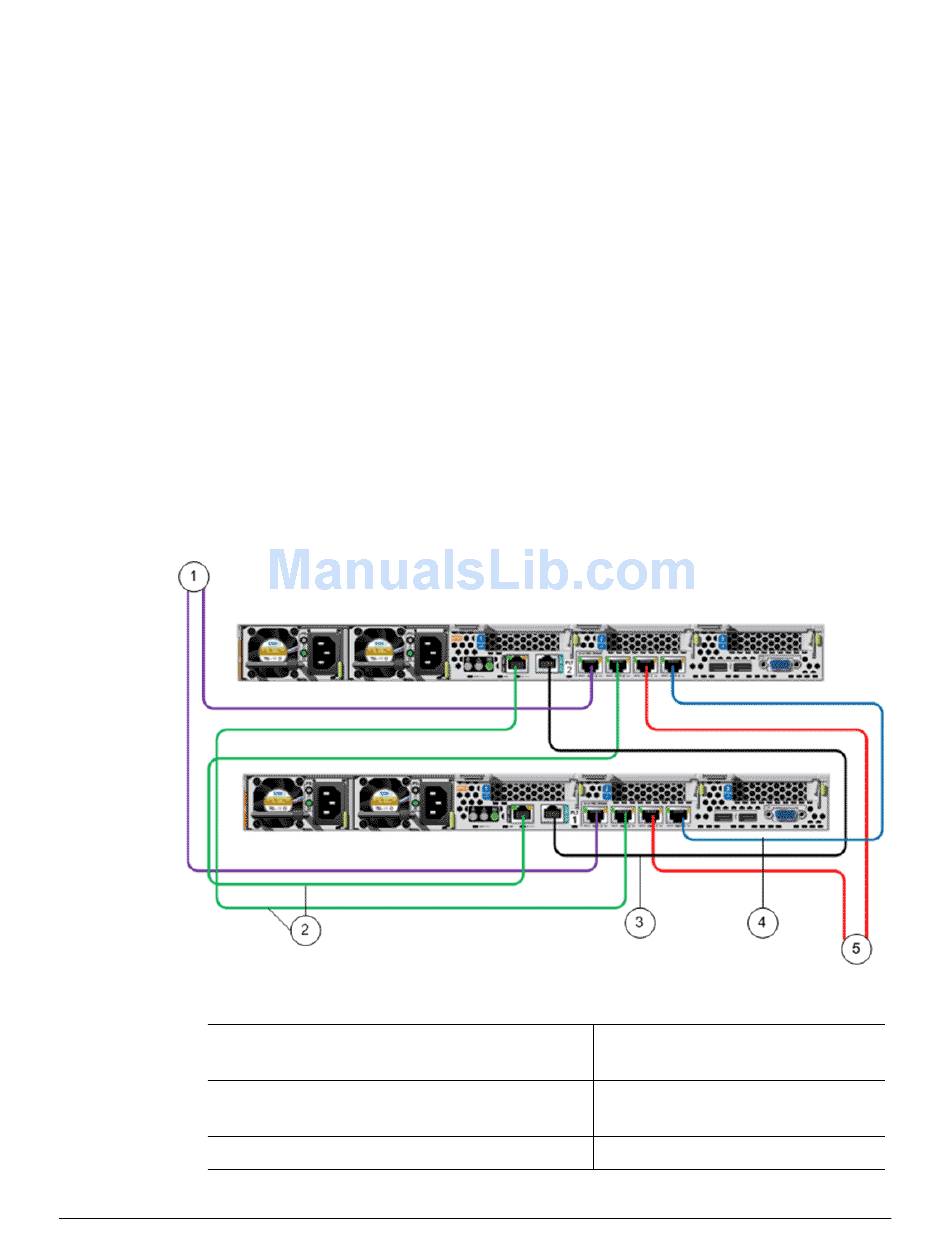

Figure 79: Pilot wiring diagram (management connectivity)

Legend
1 NET 3 port to customer management
network
2 NET MGT port to NET 2 port
3 SER MGT port to SER MGT port
4 NET 0 port to NET 0 port
5 NET 1 port to Controller NET 3
port
