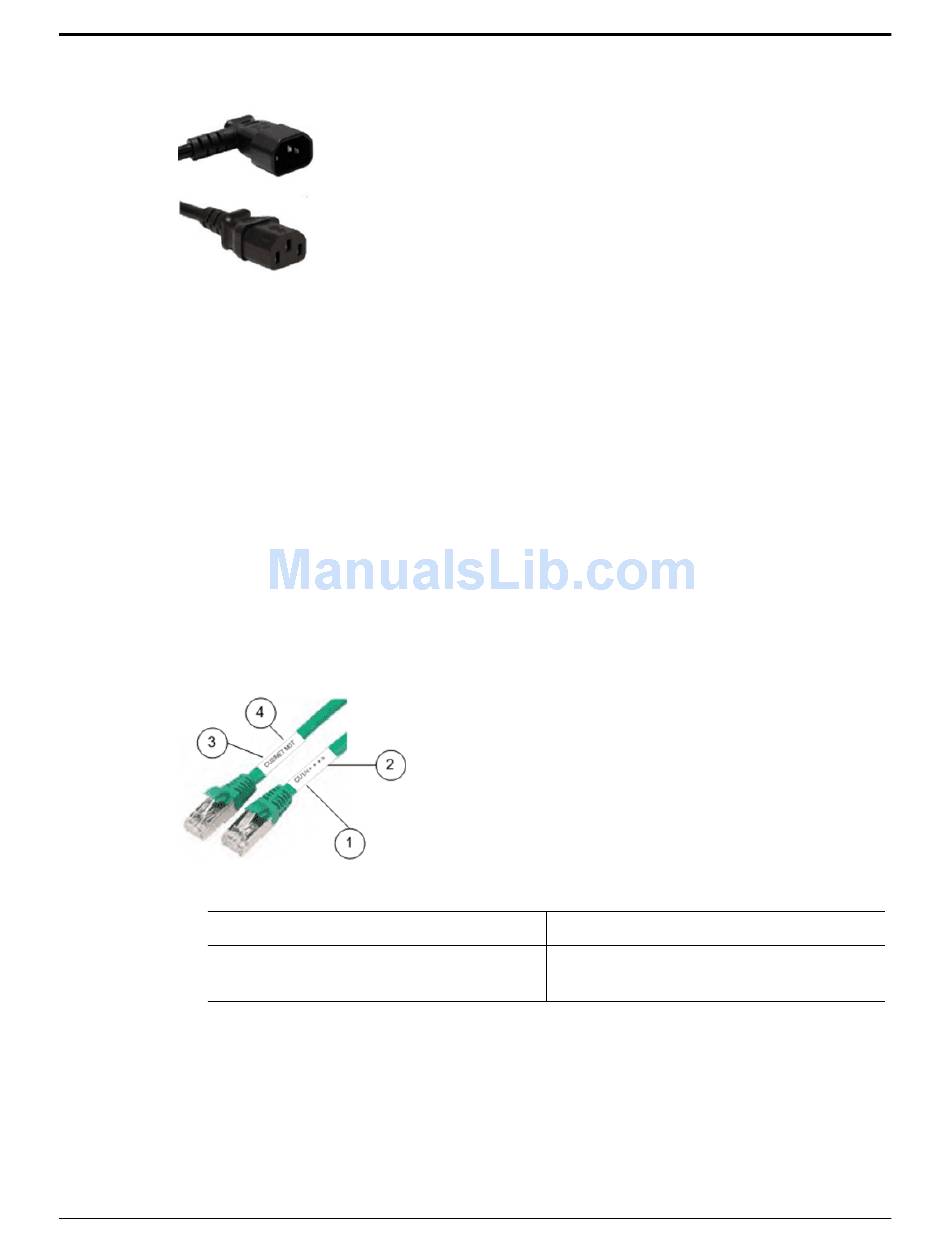

Figure 70: Example of a power cord with C13 to C14 angled connectors

Related Links
Routing Cables

Cable Labels

Types of External Cables
Cable Labels
The SAS cables and the internal Ethernet cables provided with the Oracle FS
System have labels attached at both ends. The labels designate the hardware
component and the corresponding port to which the cable connects.
The following figure provides an example of a label attached to an internal
Ethernet cable. One end of the cable connects to the cluster interconnect network
port (<- - - >) on Controller 1. The other end of the cable connects to the NET
MGT port on Controller 2.

Figure 71: Example of a cable label for an internal Ethernet cable

Legend
1 Controller 1
2 Cluster interconnect network port
(labeled as < - - - >)
Related Links
Connect the Internal Cables
Types of Internal Cables
Oracle FS System Cables
3 Controller 2
4 NET MGT port
