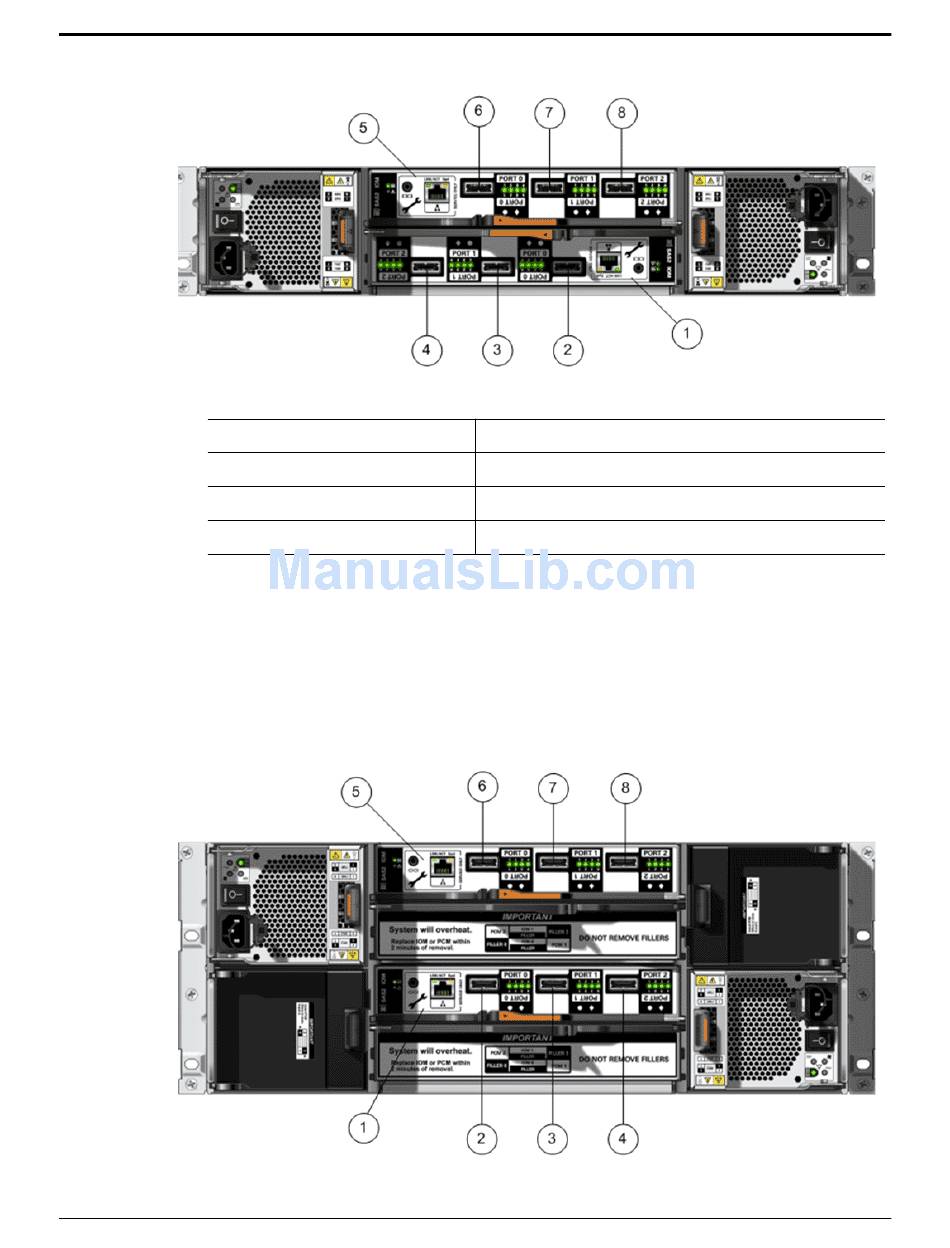

Figure 65: SAS ports for Drive Enclosure cabling (DE2-24P)
Legend
1 I/O module 0
2 I/O module 0, SAS port 0
3 I/O module 0, SAS port 1
4 I/O module 0, SAS port 2
DE2-24C Drive Enclosures
The following figure shows the SAS ports of a DE2-24C Drive Enclosure. Note
the position of the SAS ports and the identical orientation of the two I/O
modules. Remember the orientation of the I/O modules and the location of the
SAS ports as you cable the system.
Figure 66: SAS ports for Drive Enclosure cabling (DE2-24C)
Oracle FS Systems: Cabling Overview
5 I/O module 1
6 I/O module 1, SAS port 0
7 I/O module 1, SAS port 1
8 I/O module 1, SAS port 2
100
