Install Component Rails

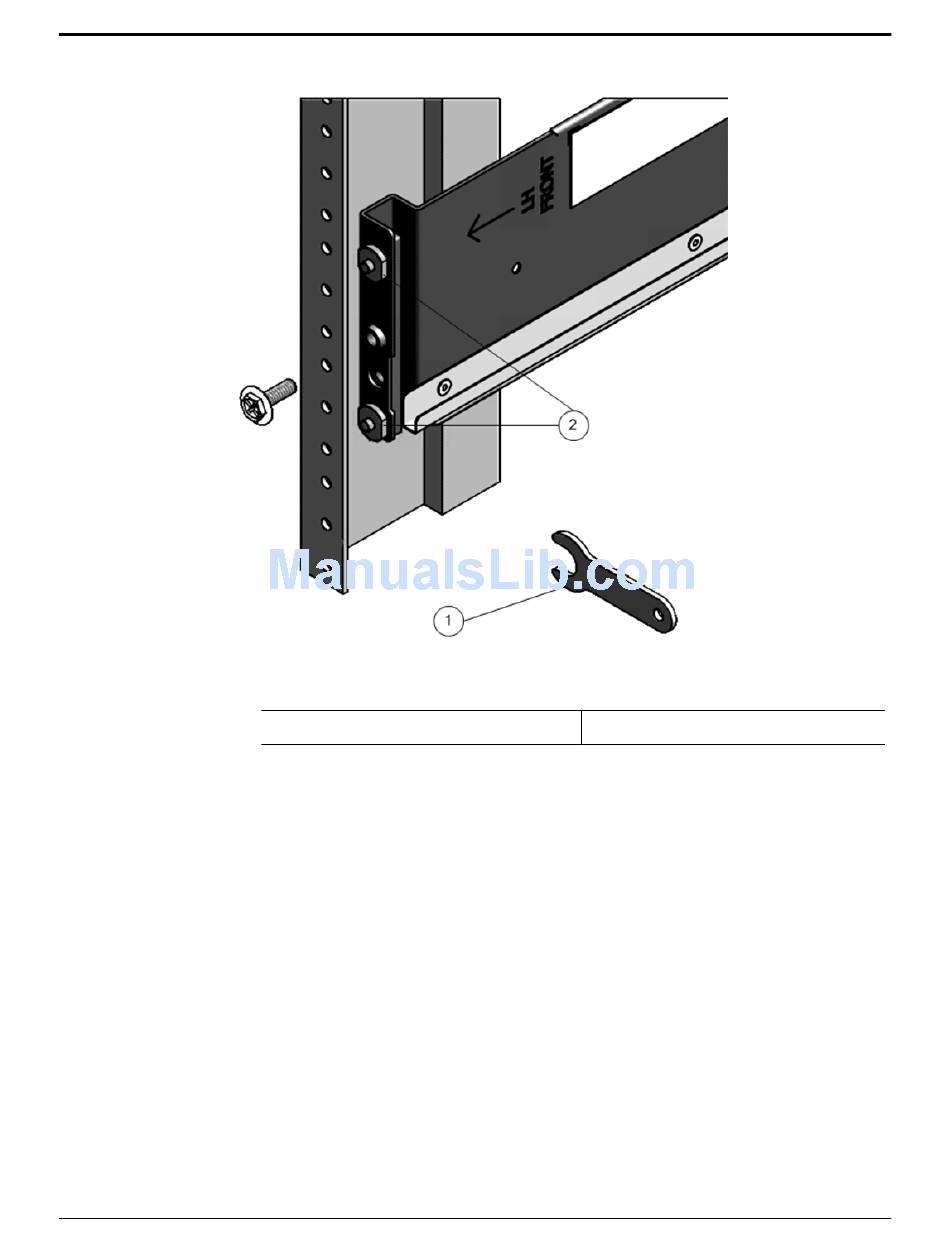

Figure 30: 10mm wrench and adaptor pins
Legend
1 10mm wrench
2 Adaptor pins
3
Position the front of the rails inside of the rack, with the rail flange inside
of the rack flange.
The rail label faces the inside of the rack. The pins should be fully located
within the rack holes.
65
