Install Component Rails

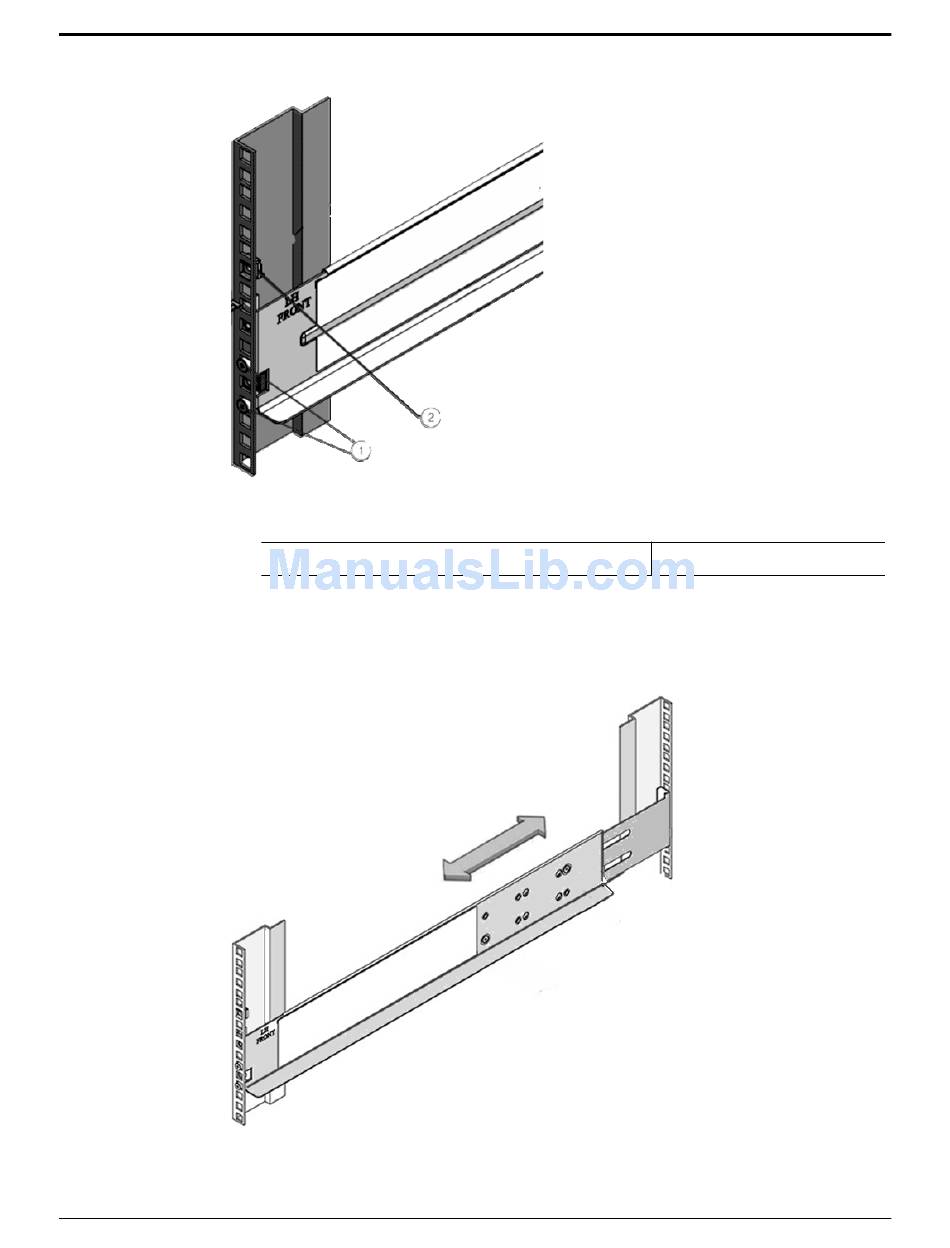

Figure 39: Rail-location pegs and a square-hole rack

Legend
1 Rail-location pegs
2 Cage nut
6
Extend the rail length towards the back of the rack and into the rail holes at
the back of the rack.

Figure 40: Rail extended to holes in the back of the rack

73
