Install Component Rails

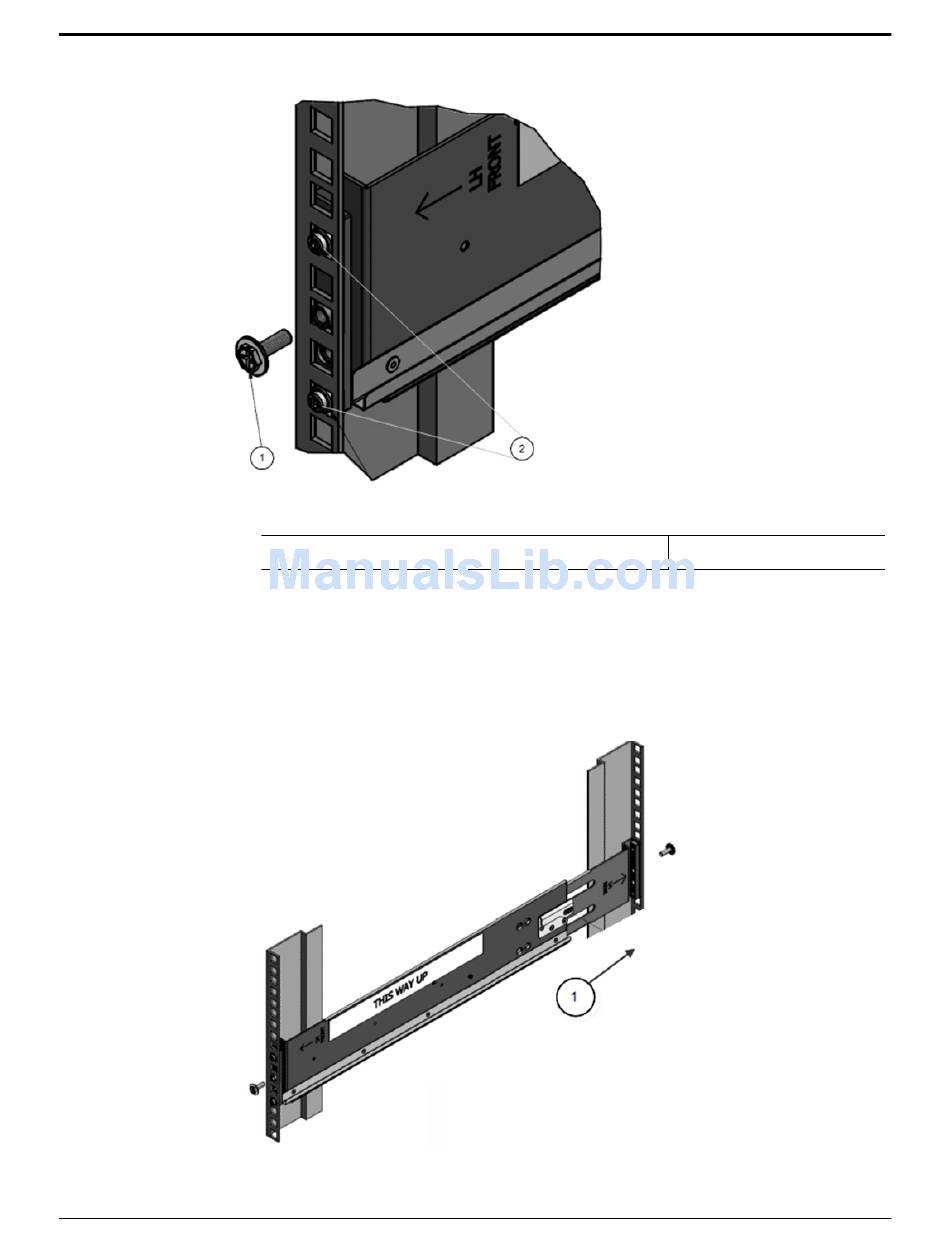

Figure 34: A Phillips 13mm head hex flange screw and the front of a rack
Legend
1 Phillips 13mm head hex flange screw
2 Rail-location pegs
5
From the back of the rack, position the pegs fully into the corresponding
rack holes.
To position the pegs, extend the length of the rail to the back of the rack
and position the pegs through the appropriate rack holes.
Figure 35: Extended rail to the back of the rack
