Table 44: Drive Enclosure LED status and description (operator panel)

LED
System power indicator
Module fault indicator
Locate indicator
LED display

Power Cooling Module LED Indicators

The LED indicators on the power cooling modules provide power activity status,
fan and temperature fault conditions, and firmware upgrade status.
The following figure shows the power cooling module LEDs.

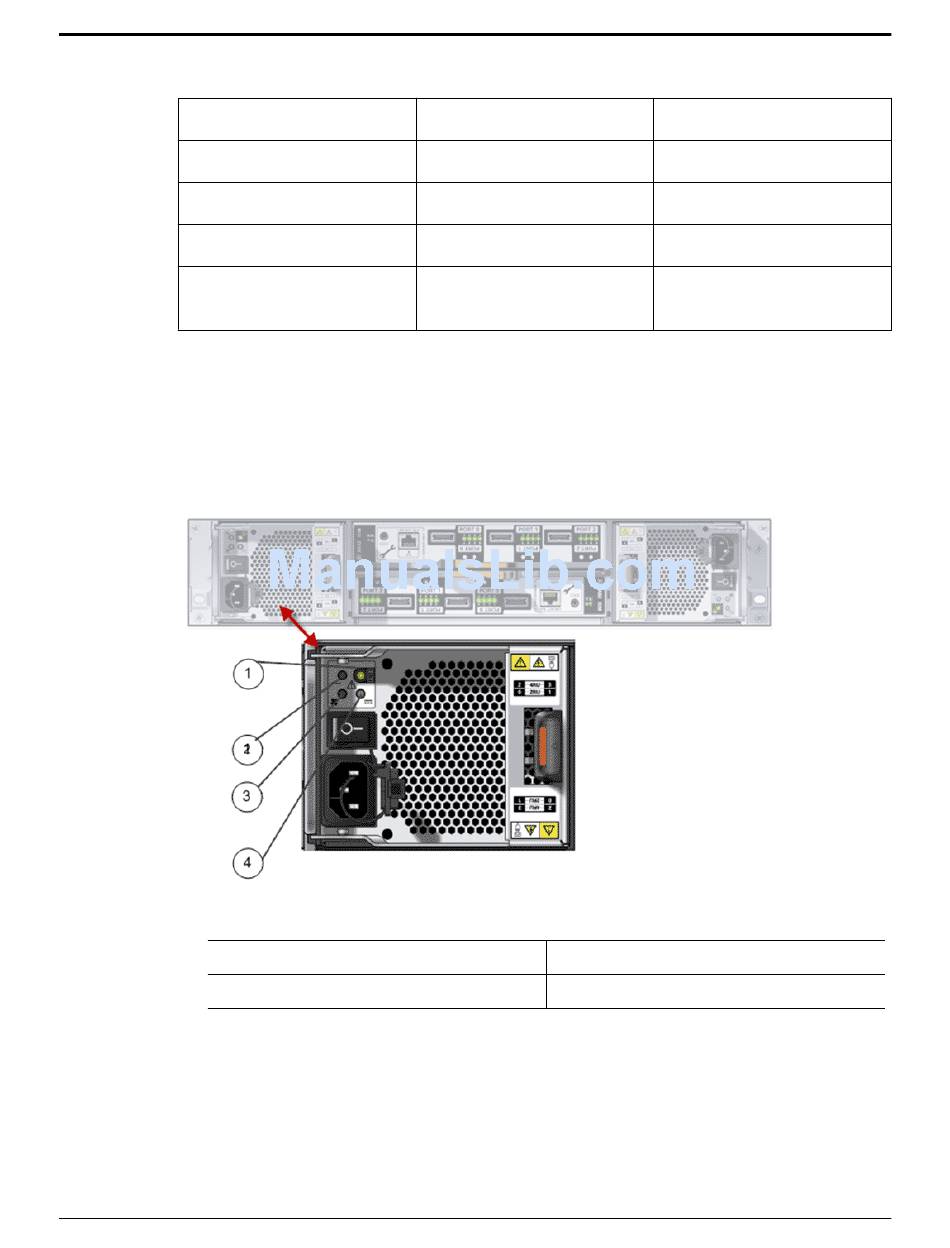

Figure 107: Power cooling module LEDs

Legend
1 Status indicator
2 AC fail indicator
The following table provides status information on the power cooling module
LEDs.
LED color
Green
Amber
White
Green number between 01
and 30
3 Fan fail indicator
4 DC output fail indicator
Oracle FS System LED Status
Status
The status is normal.
A module fault is present.
The DE is located.
The numeric identifier of a
DE is displayed.
