approximately 20 lbs (9.07 kg). An empty DE2-24P Drive Enclosure
chassis weighs approximately 15.6 lbs (7.07 kg).
The reduced weight enables one person to handle an empty Drive
•
Enclosure chassis. If you are not comfortable managing the weight of
the chassis, request help from the local account team.
Be careful not to drop a Drive Enclosure. Dropping a Drive
•
Enclosure can cause damage and can reduce the life of the drives.
Caution: Do not use the power supply handles to lift the chassis. Using the
power supply handles to lift the chassis can damage the power cooling
modules and disrupt electrical power to the Drive Enclosure.
2
Angle the Drive Enclosure slightly to the left and align the left side slider
on the Drive Enclosure so that it engages with the left rail channel.

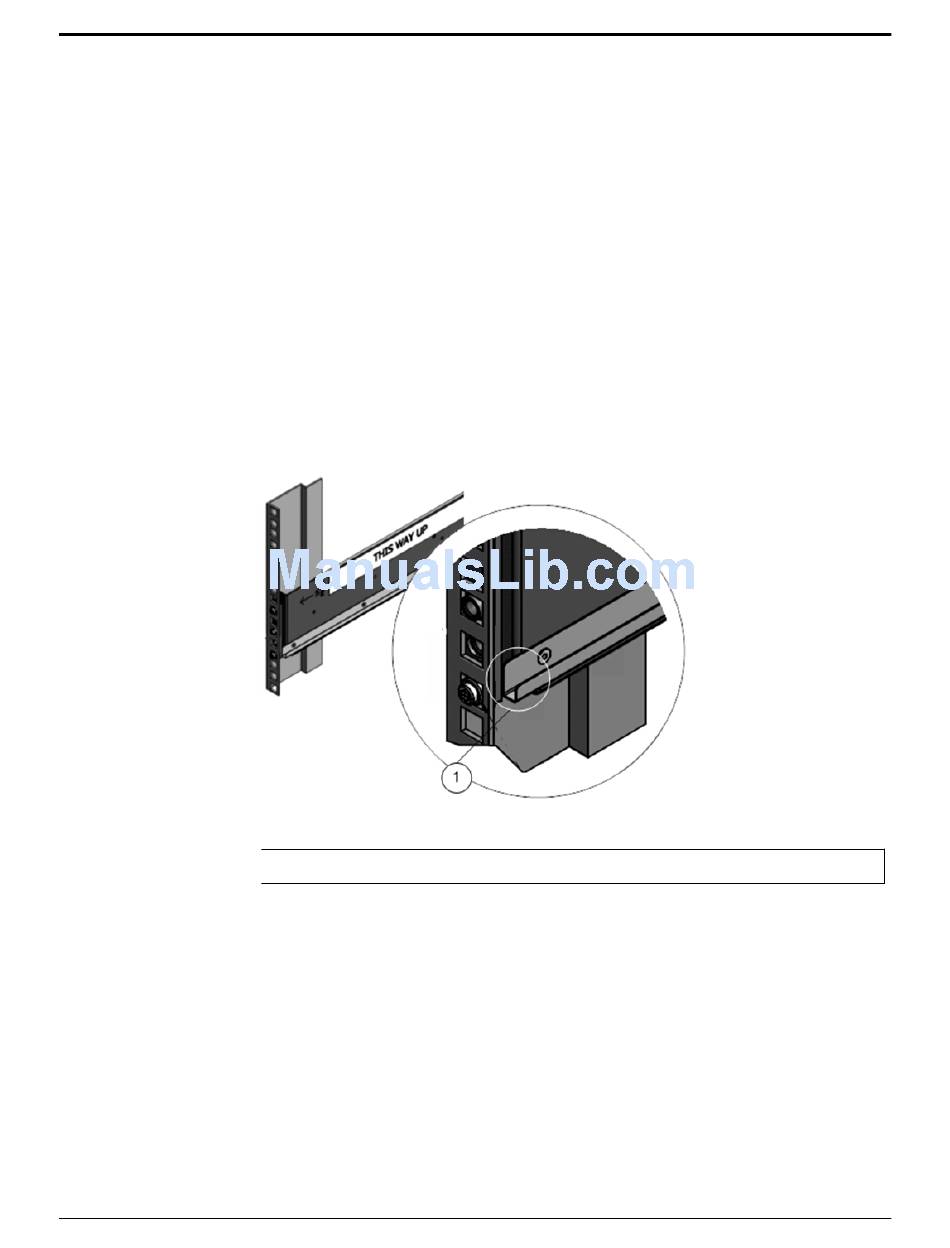

Figure 52: Left rail channel
Legend
1 Left rail channel
3
Slightly tug the Drive Enclosure to the right and align the right side slider
on the Drive Enclosure so that it engages with the right rail channel.
4
Apply even pressure to both sides of the Drive Enclosure and carefully
slide the Drive Enclosure into the rails.
Note: The Drive Enclosure must be fully seated in the rack. To verify that
the Drive Enclosure is fully seated, check for the following:
Using a flashlight, visually check to see that the sliders on both sides
•
of the Drive Enclosure are in the rail channels on both sides of the
rack. If the Drive Enclosure side sliders are not in the rail channels,
Install Components into the Rack
84
