Oracle FS1-2 Installation Manual page 105

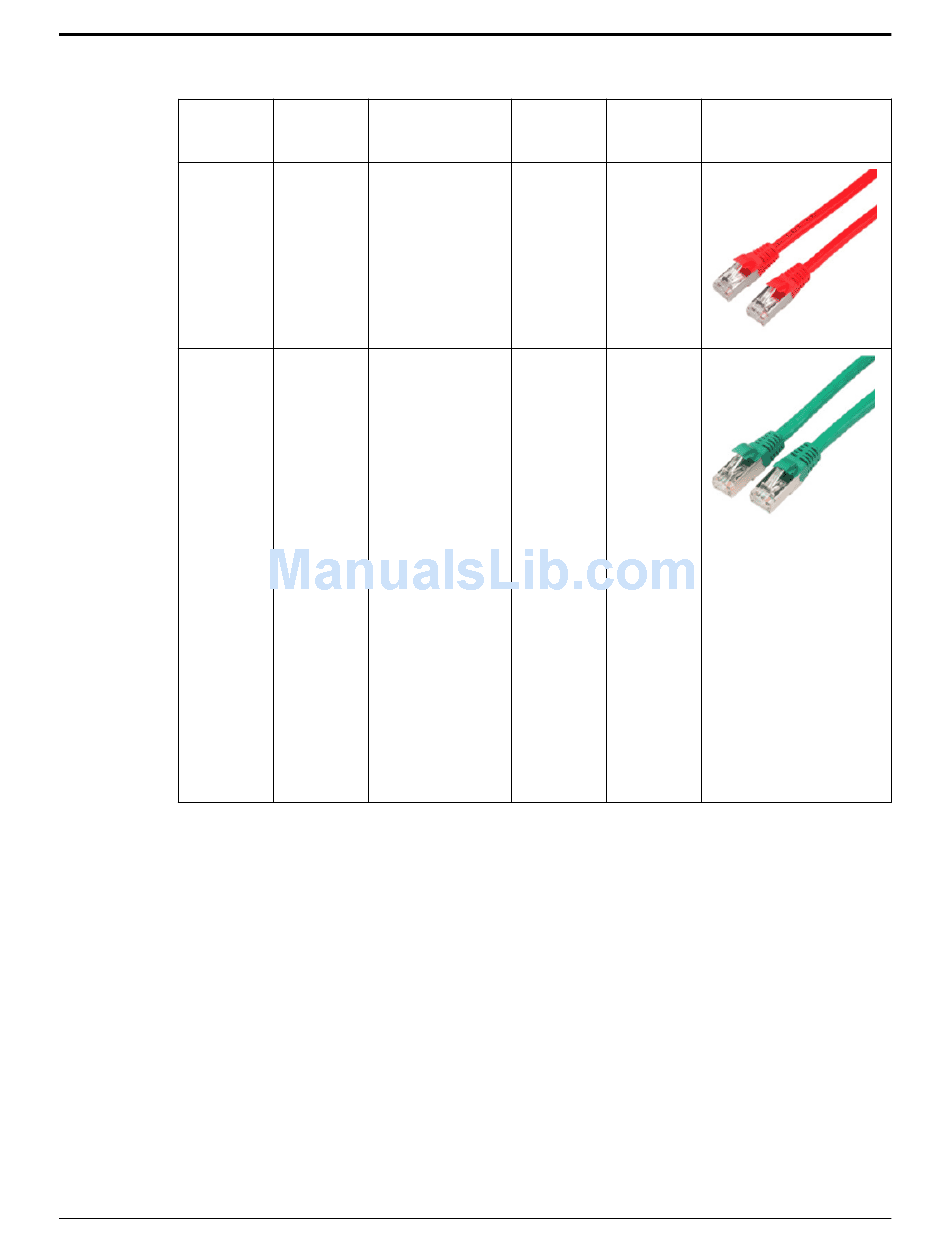

Table 27: Private management network cables (continued)
Cable Color
Ethernet Red
CAT6a
Ethernet Green
CAT6a
SAS Cables for Connecting the Controllers
The following table lists the type of mini-SAS high density (HD) cable and cable
length used to cross-connect the Controllers.
Cable path Cable
length
Connects the 9.84 feet
NET 1 ports of
(3 m)
the Pilots to the
NET 3 ports of
the Controllers
Connects the 9.84 feet
Controller 1
(3 m)
NET 2 port to
the Controller 2
NET 2 port
Connects the
Controller 1
NET MGT port
to the cluster
interconnect
(< - - - >) port
of Controller 2
Connects the
cluster
interconnect (<-
- ->) port of
Controller 1 to
the Controller 2
NET MGT port
Oracle FS System Cables
Quantity Example
Two
Three
105
