three SAS HBAs installed per Controller, the arrangement of Drive Enclosures
within each string is the same as with a base system.

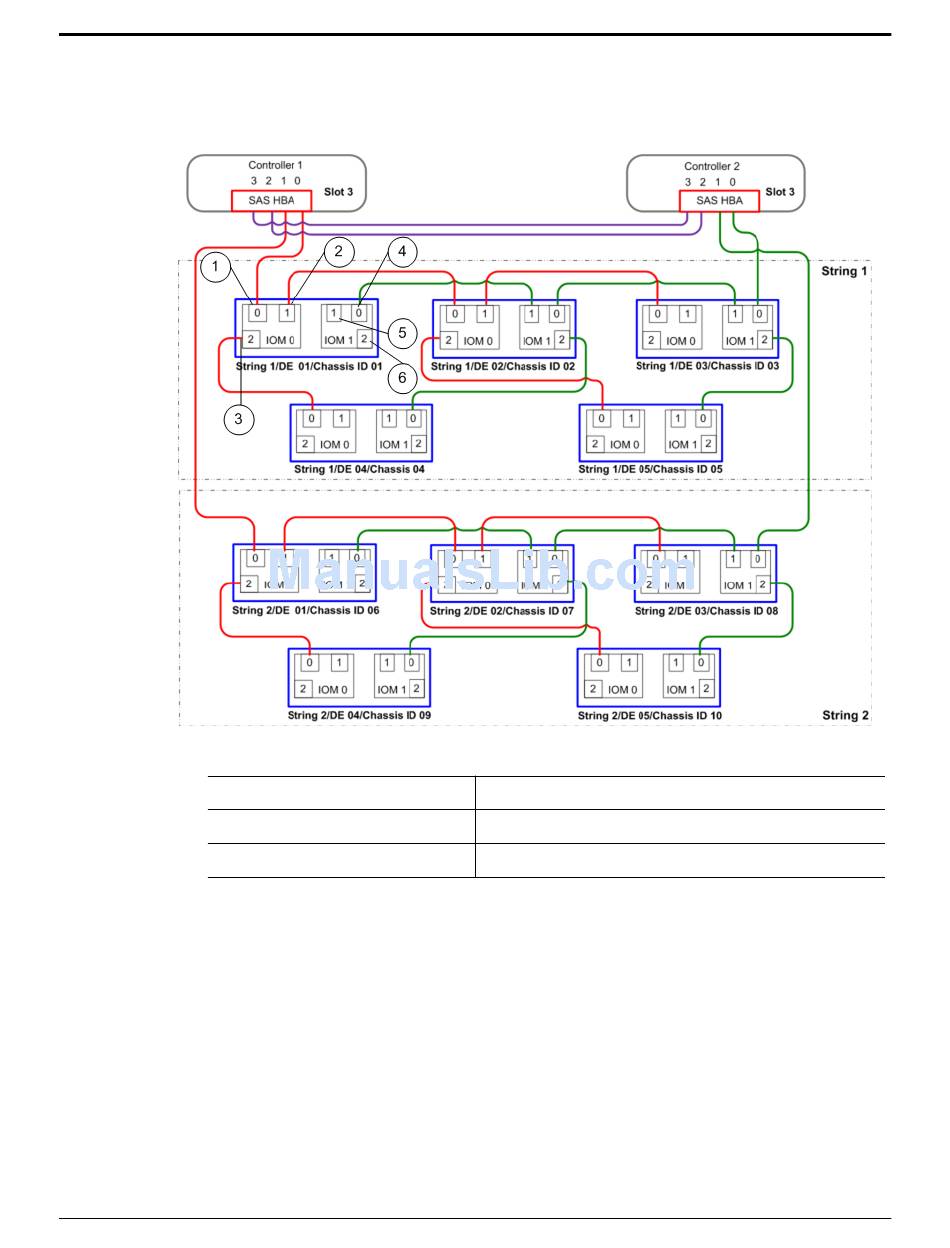

Figure 91: Example of two strings with five Drives Enclosures
Legend
1 I/O module 0, port 2
2 I/O module 0, port 0
3 I/O module 0, port 1
4 I/O module 1, port 1
5 I/O module 1, port 0
6 I/O module 1, port 2
Connect the Internal Cables
149
