Insert and fully tighten one Phillips 13mm head hex flange screw through
the back of the rack and into the rail.
8
Tighten the two locking screws in the side of the rail.

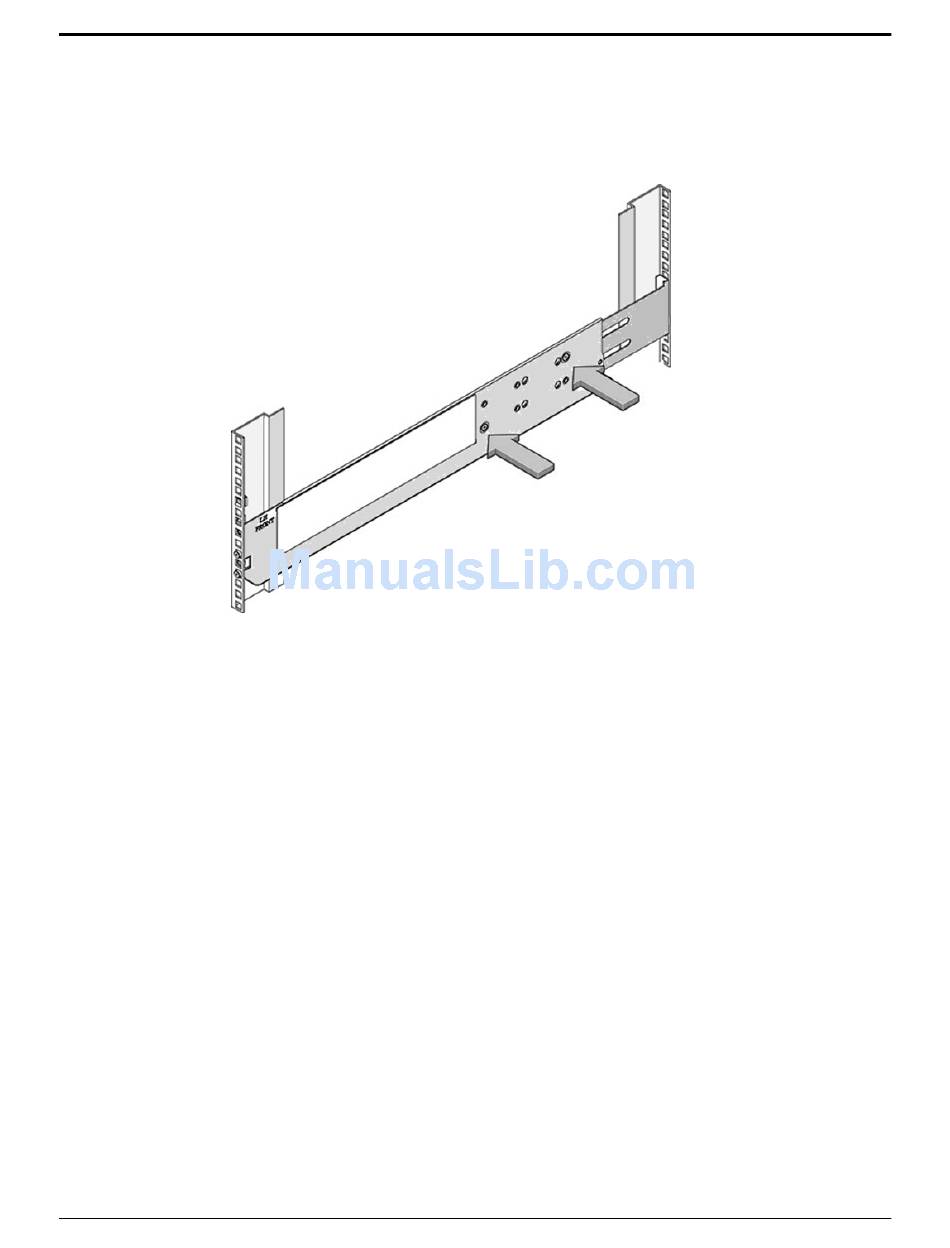

Figure 41: The locking screws and side of the rail
9
Repeat steps 1 - 8 to install the right-hand rail assembly.
Pilot Rails
Adding Pilots in the rack requires you to install rack rails in the rack and slide
rails on the chassis for each Pilot that you plan to add.
Pilot rail kits can be installed in the Sun trademark Rack 900, the Sun Rack 1000,
and third-party ANSI/EIA 310-D-1992 or IEC 60927 compliant racks with the
following types of holes:
Square (9.5 mm)
•
Round (M6 or 1/4-20 threaded only)
•
Caution: We recommend that you install each Pilot after you install the rail kit
before installing the next combination of rail kit and Pilot. Installing all of the rail
kits and then inserting the Pilots is not always possible because of potential space
limitations in some data centers. Also, you run the risk of not placing the Pilot in
the correct rack position and causing possible cabling issues.
Pilot Rail Kits
The Pilot rail kit contains the following items:
One slide rail that attaches to the rack posts
•
One mounting bracket that attaches to the Pilot chassis
•
Install Component Rails
74
