Wiring Diagrams

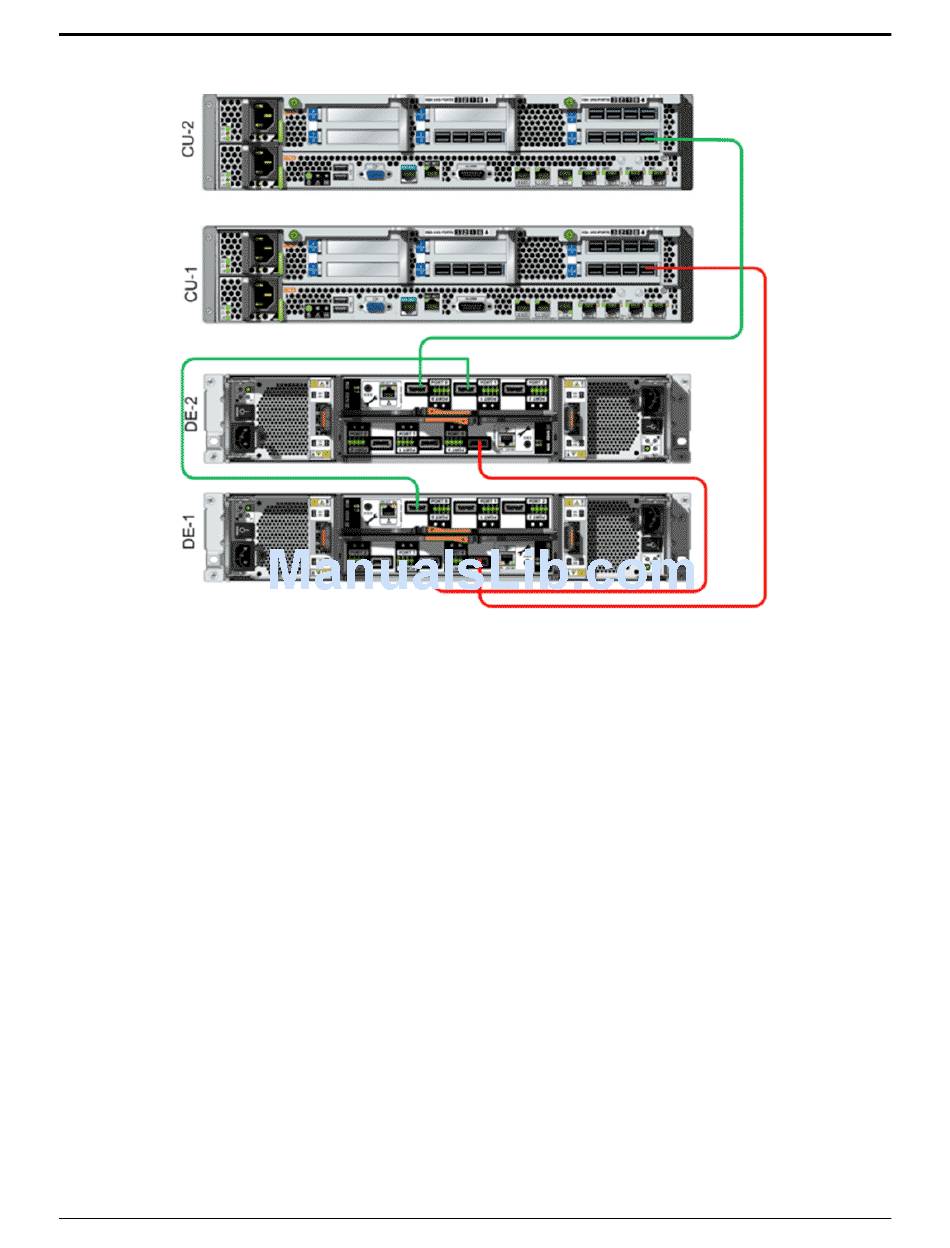

Figure 86: SAS wiring diagram for one string with two Drive Enclosures
The following figure illustrates the SAS cabling in a system that is configured
with one Drive Enclosure string containing three Drive Enclosures. The same
cabling pattern applies to all of the strings in a system. Remember to distribute
Drive Enclosures among the strings so that all of the available SAS HBA ports
designated for Drive Enclosures are used as equally as possible.
