Connect To The Customer Data Network; Figure 97: San Hba Connections To The Customer Data Network - Oracle FS1-2 Installation Manual

Any changes that you make are mirrored to the partner Controller, and the
system restarts.
Note: During startup, if the SFP detected does not match the port
provisioning, the system generates an "Incorrect SFP" event.
Related Links
Connections to the Customer Data Network
Download Oracle FS System Manager to a Laptop

Connect to the Customer Data Network

SAN data paths require FC connections. Single-mode and multi-mode optical
fiber connections are supported on PCIe cards.
Prerequisite:
The fibre channel (FC) data paths require 8 GbE or 16 GbE optical FC connections.
Note: The type of connection (Ethernet or FC) was defined when the Oracle FS
System was ordered.
Caution: Use only the Oracle-supplied SFP modules for the external cabling.

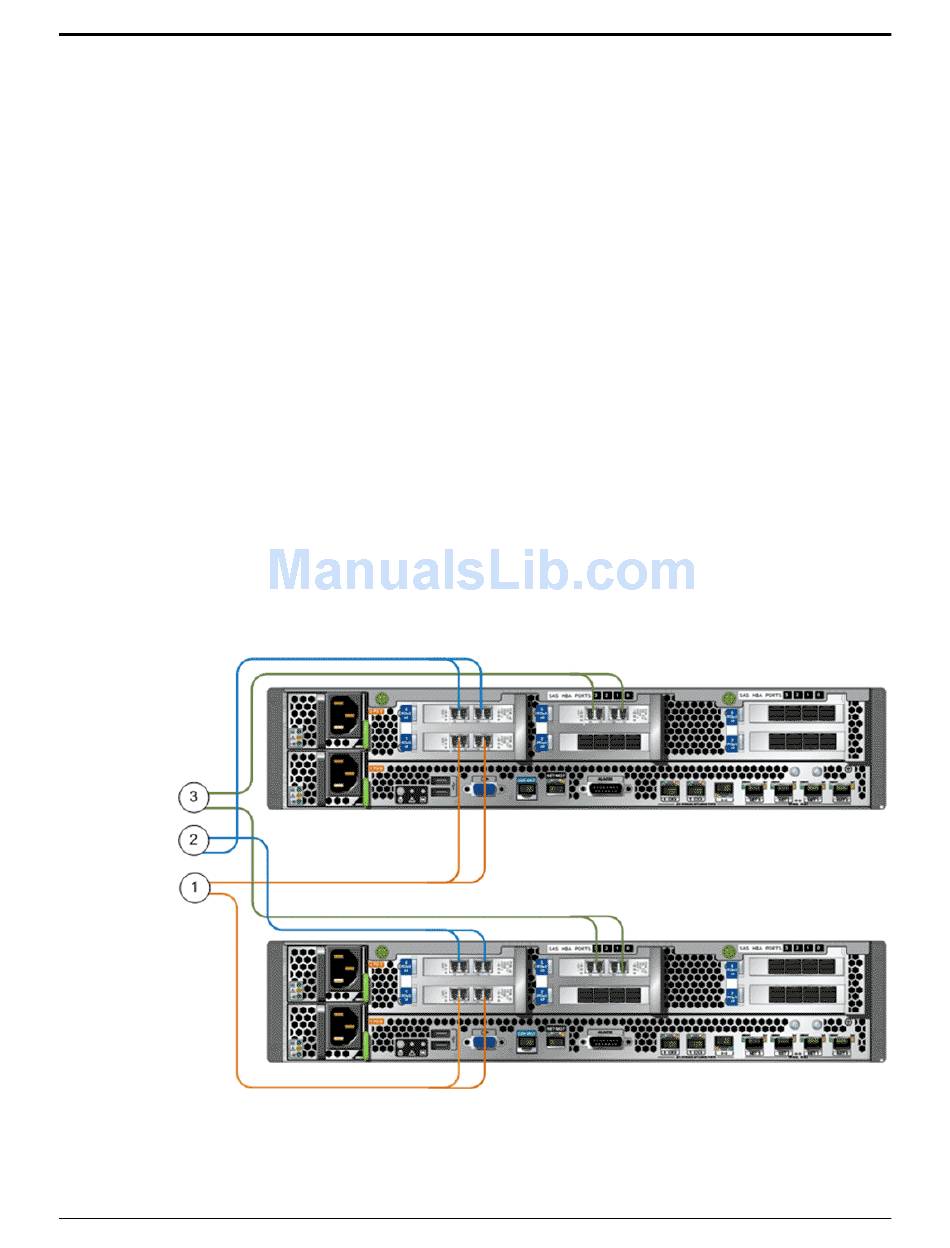

The following figure shows the SAN HBA connections from the Controllers to
the customer data network.

Figure 97: SAN HBA connections to the customer data network
