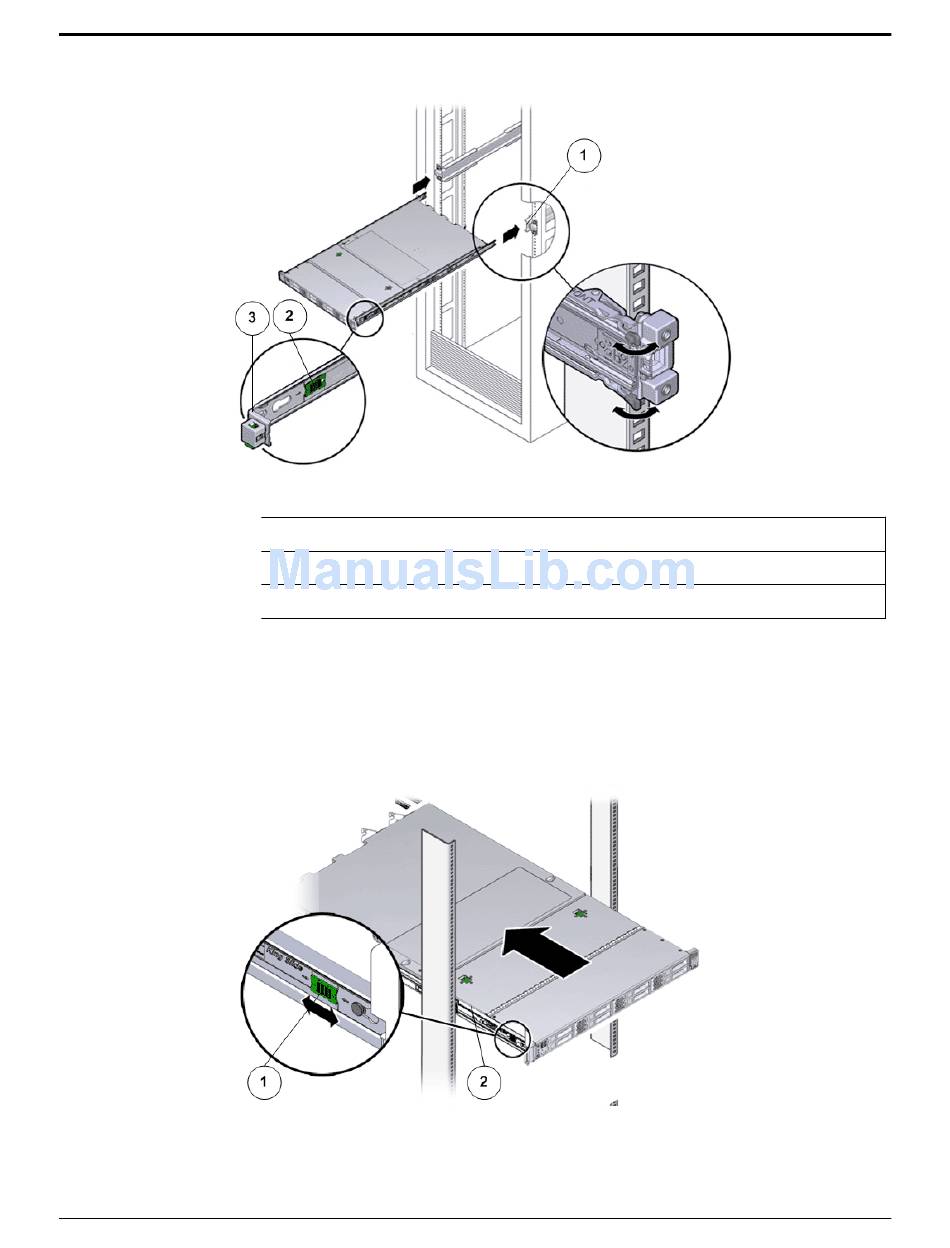

Figure 58: Pilot with mounting brackets inserted into the slide rails
Legend
1 Mounting brackets inserted into the slide rail
2 Slide rail release button
3 Slide rail lock
4
Simultaneously push and hold the slide rail release buttons on each
mounting bracket while you push the Pilot into the rack. Continue pushing
the Pilot into the rack until the slide rail locks (on the front of the mounting
brackets) engage the slide rail assemblies until you hear an audible click.
Figure 59: Pilot inserted into the rack
Install Components into the Rack
91
