then the Drive Enclosure is not seated. You must reinstall the Drive
Enclosure.
6
Remove the front-side caps on both sides of the Drive Enclosure and secure
a Phillips 13mm head hex flange screw.
Note: The front-side cap on the right side of the Drive Enclosure contains
the RFID tag, which uniquely identifies the Drive Enclosure. Take care not
to mix up the right front-side caps among Drive Enclosures.

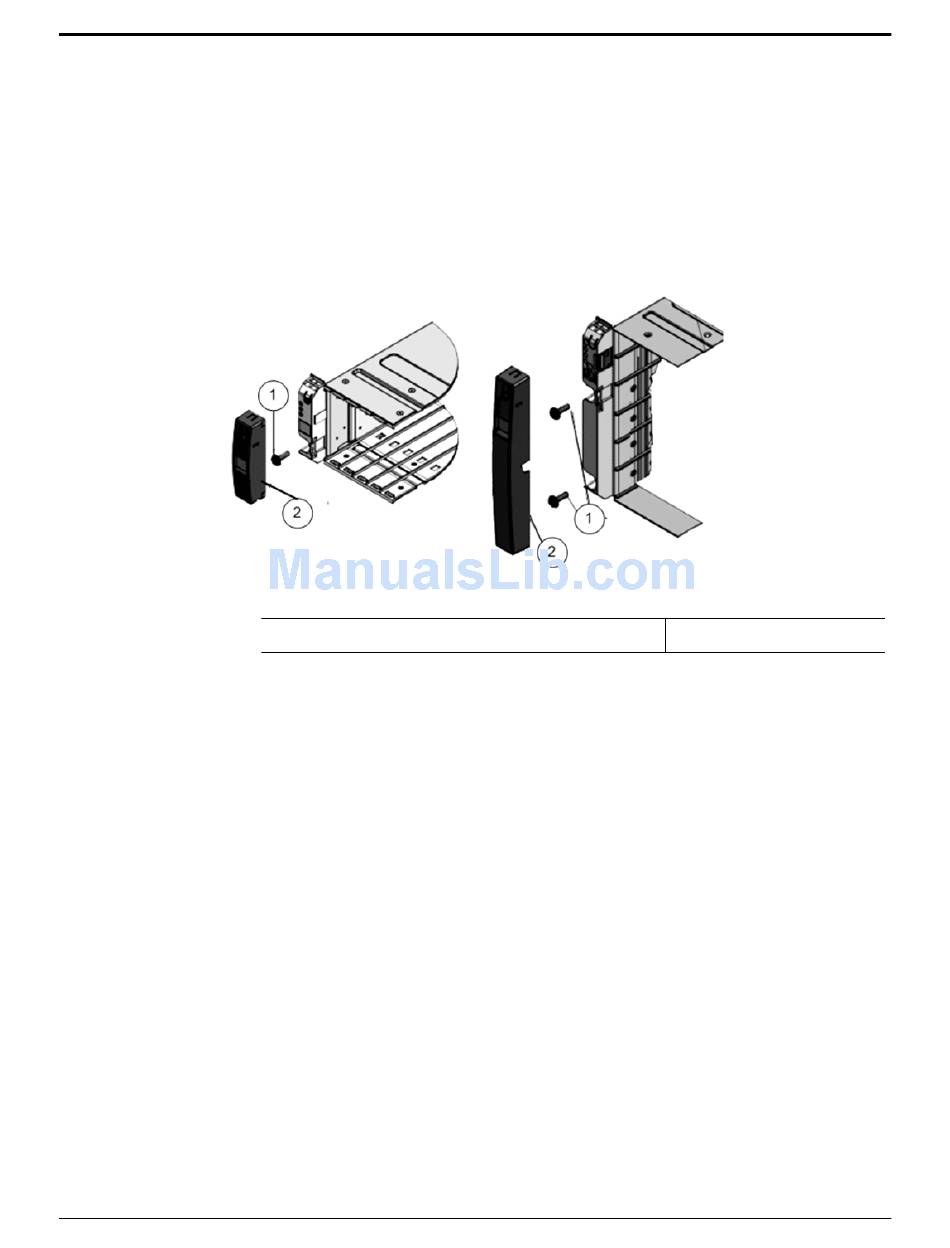

Figure 54: Left front-side cap and Phillips 13mm head hex flange screw
Legend
After you have secured the Drive Enclosure to the rails, attach the front-
side caps to the Drive Enclosure.
7
Insert the I/O modules, the power cooling modules, and all of the drives
into their corresponding slots in the chassis.
Insert the Controller Into a Rack
Prerequisite:
Ensure that you have a magnetic-tipped Phillips Number 2 screwdriver with at least
a four-inch shank.
Caution: Do not power on the Controller until all components have been
installed and all internal private management interface (PMI) and private
interconnect (PI) cables have been connected.
Caution: Work with a partner or use a mechanical lift for assistance. The
Controller weighs approximately 41 lbs (18.59 kg). Two people are required to
unmount and carry the chassis.
Caution: Deploy any rack anti-tilt mechanisms before installing the Controller
into the rack to prevent the rack from tipping over during component
installation.
1 Phillips 13mm head hex flange screw
Install Components into the Rack
2 Left front-side cap
86
