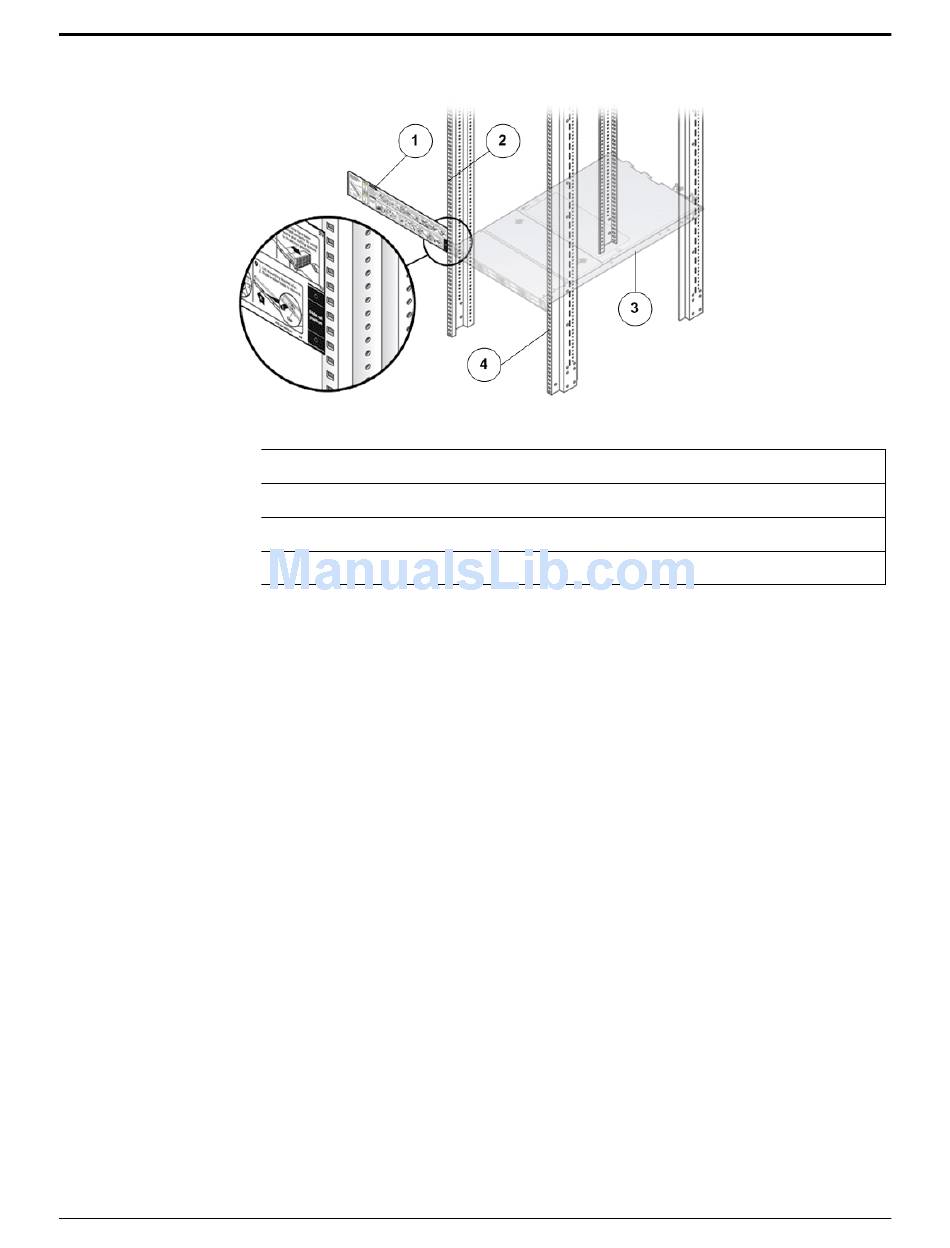

Figure 43: Rack-mount installation card template
Legend
1 Installation card
2 Rack mount hole
3 Pilot chassis
4 Front rack post
Note: The Pilot requires one standard rack units (1U) of vertical space.
Tip: The bottom edge of the installation card must correspond to the
bottom edge of the Pilot. Measure up from the bottom of the installation
card.
2
Mark the mounting holes for the front slide rails.
3
Mark the mounting holes for the back slide rails.
4
Remove the rails from the packaging.
5
Orient the slide-rail assembly so that the ball bearing track is forward and
locked in place.
Install Component Rails
76
