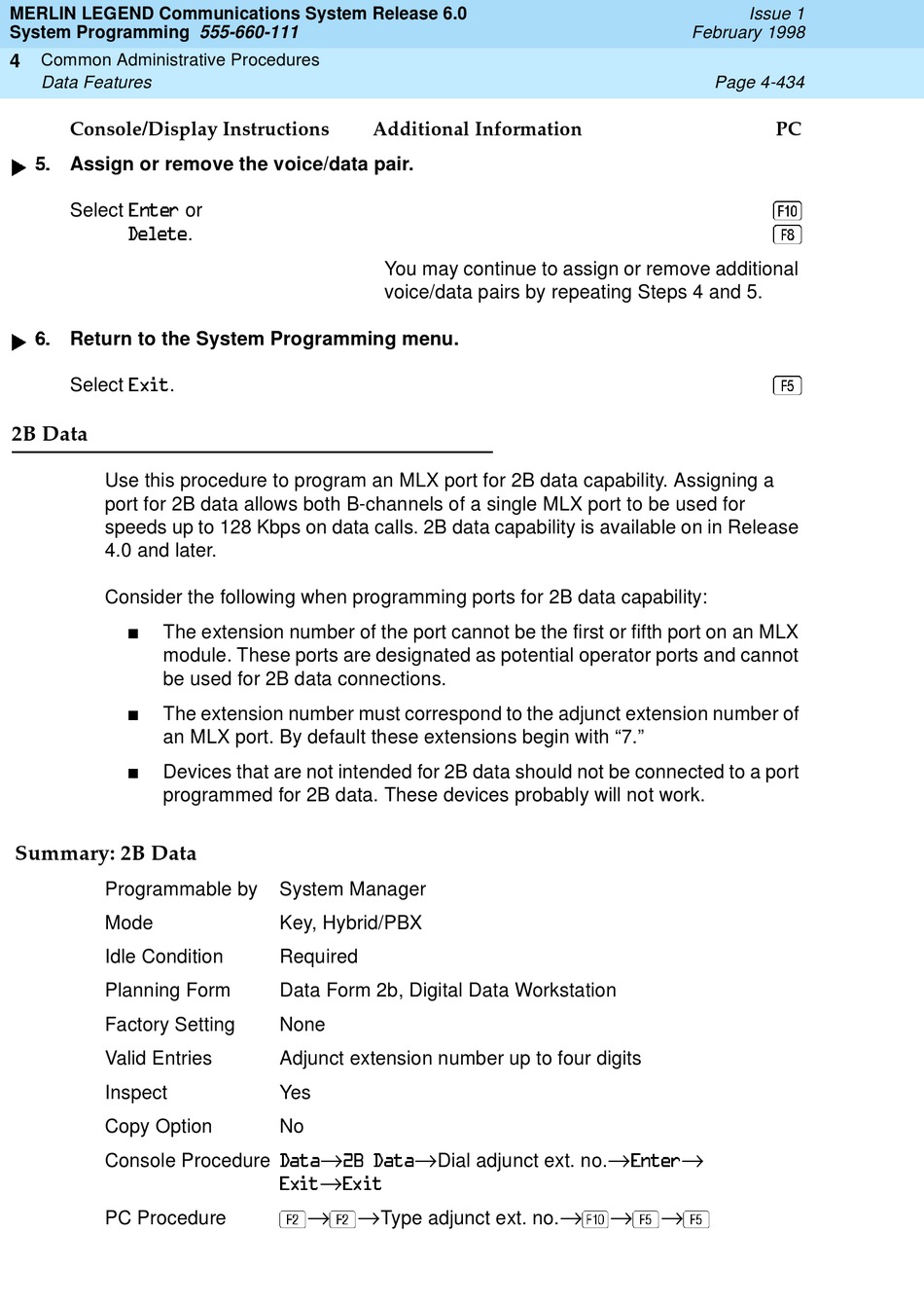

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Common Administrative Procedures
Data Features
Console/Display Instructions
Assign or remove the voice/data pair.
!
Select @‡r… or
9ryr‡r .
Return to the System Programming menu.
!
Select @‘v‡ .
2B Data
Use this procedure to program an MLX port for 2B data capability. Assigning a
port for 2B data allows both B-channels of a single MLX port to be used for
speeds up to 128 Kbps on data calls. 2B data capability is available on in Release
4.0 and later.
Consider the following when programming ports for 2B data capability:
The extension number of the port cannot be the first or fifth port on an MLX
module. These ports are designated as potential operator ports and cannot
be used for 2B data connections.
The extension number must correspond to the adjunct extension number of
an MLX port. By default these extensions begin with "7."
Devices that are not intended for 2B data should not be connected to a port
programmed for 2B data. These devices probably will not work.
Summary: 2B Data
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure 9h‡h
PC Procedure
Additional Information
You may continue to assign or remove additional
voice/data pairs by repeating Steps 4 and 5.
System Manager
Key, Hybrid/PBX
Required
Data Form 2b, Digital Data Workstation
None
Adjunct extension number up to four digits
Yes
No
!7Ã9h‡h
Dial adjunct ext. no.
@‘v‡ @‘v‡
Ä Ä
Type adjunct ext. no.
4
4
@‡r…
 Ç Ç
Issue 1
February 1998
Page 4-434
