MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Common Administrative Procedures

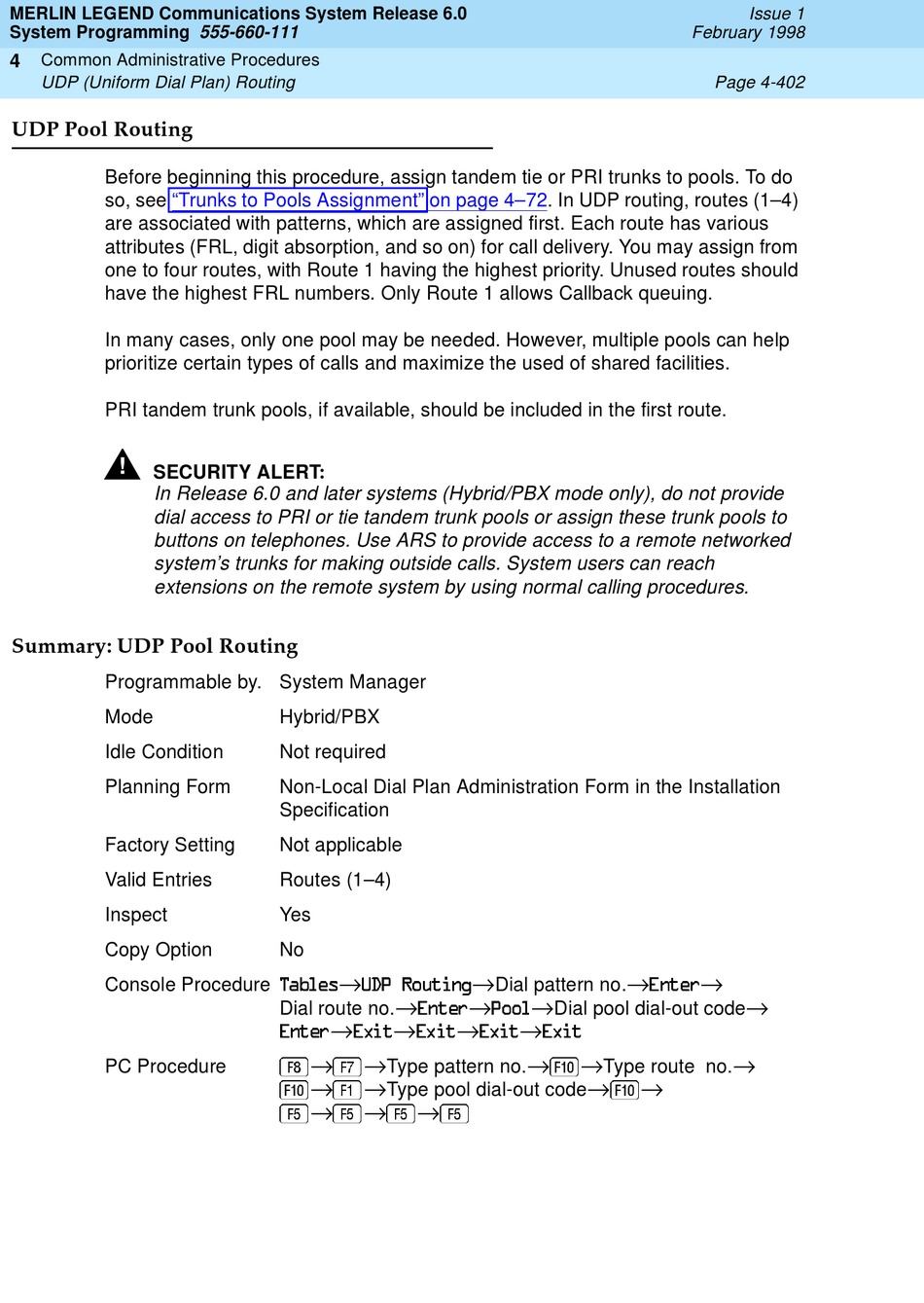

UDP (Uniform Dial Plan) Routing

UDP Pool Routing
Before beginning this procedure, assign tandem tie or PRI trunks to pools. To do
so, see "Trunks to Pools Assignment" on page
are associated with patterns, which are assigned first. Each route has various
attributes (FRL, digit absorption, and so on) for call delivery. You may assign from
one to four routes, with Route 1 having the highest priority. Unused routes should
have the highest FRL numbers. Only Route 1 allows Callback queuing.
In many cases, only one pool may be needed. However, multiple pools can help
prioritize certain types of calls and maximize the used of shared facilities.
PRI tandem trunk pools, if available, should be included in the first route.
!
SECURITY ALERT
In Release 6.0 and later systems (Hybrid/PBX mode only), do not provide
dial access to PRI or tie tandem trunk pools or assign these trunk pools to
buttons on telephones. Use ARS to provide access to a remote networked
system's trunks for making outside calls. System users can reach
extensions on the remote system by using normal calling procedures.
Summary: UDP Pool Routing
Programmable by. System Manager
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure
PC Procedure
:
Hybrid/PBX
Not required
Non-Local Dial Plan Administration Form in the Installation
Specification
Not applicable
Routes (1–4)
Yes
No
Dial route no.
 É
 Ã
Type pattern no.
Ç Ç Ç Ç
Type pool dial-out code
4
4–72. In UDP routing, routes (1–4)
4
Dial pattern no.
Dial pool dial-out code


Type route no.
Issue 1
February 1998
Page 4-402
