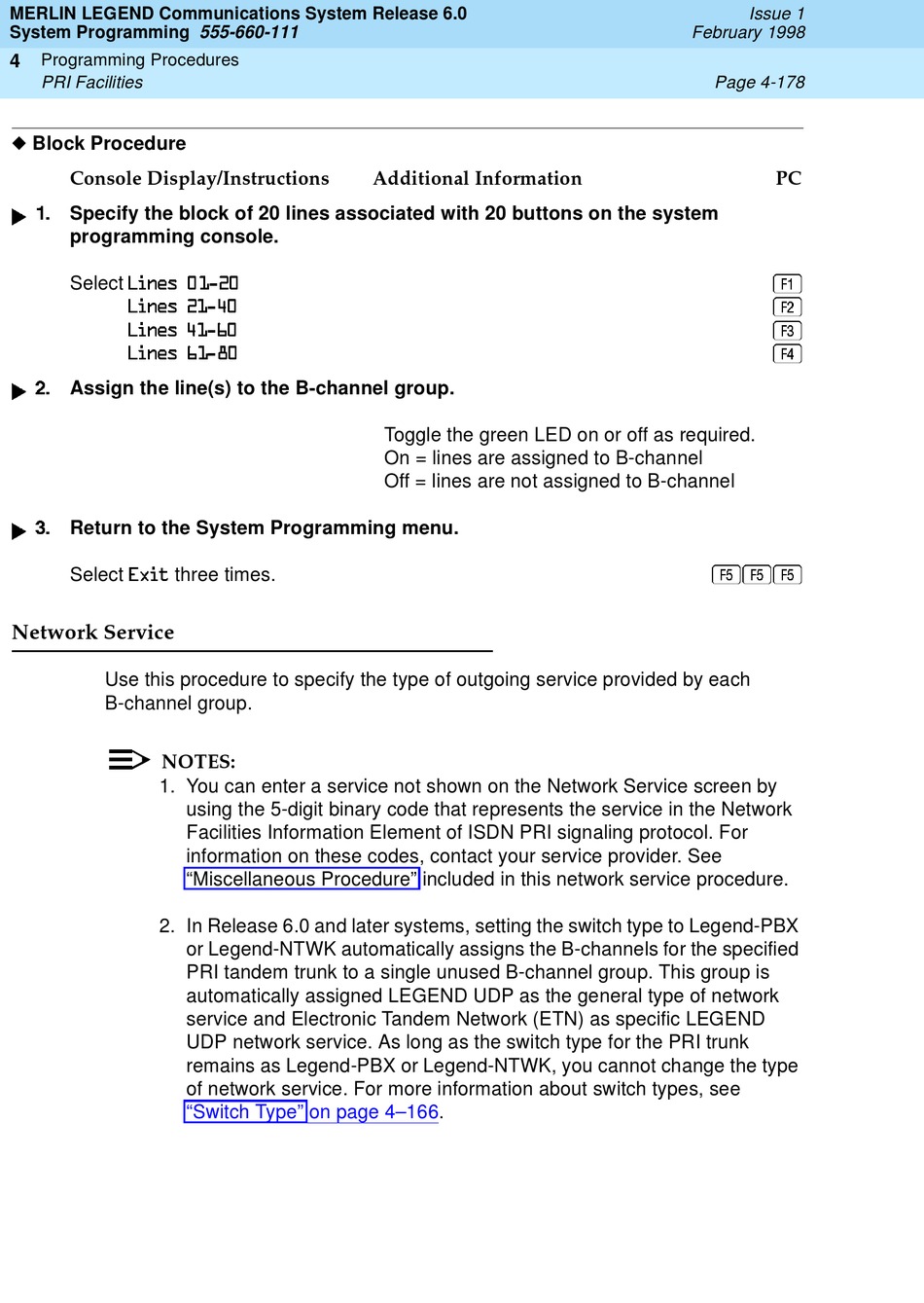

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Programming Procedures
PRI Facilities
Block Procedure
Console Display/Instructions
Specify the block of 20 lines associated with 20 buttons on the system
!
programming console.
Select
Assign the line(s) to the B-channel group.
!
Return to the System Programming menu.
!
Select three times.
Network Service
Use this procedure to specify the type of outgoing service provided by each
B-channel group.
NOTES:
1. You can enter a service not shown on the Network Service screen by
2. In Release 6.0 and later systems, setting the switch type to Legend-PBX
using the 5-digit binary code that represents the service in the Network
Facilities Information Element of ISDN PRI signaling protocol. For
information on these codes, contact your service provider. See
"Miscellaneous Procedure" included in this network service procedure.
or Legend-NTWK automatically assigns the B-channels for the specified
PRI tandem trunk to a single unused B-channel group. This group is
automatically assigned LEGEND UDP as the general type of network
service and Electronic Tandem Network (ETN) as specific LEGEND
UDP network service. As long as the switch type for the PRI trunk
remains as Legend-PBX or Legend-NTWK, you cannot change the type
of network service. For more information about switch types, see
"Switch Type" on page
Additional Information
Toggle the green LED on or off as required.
On = lines are assigned to B-channel
Off = lines are not assigned to B-channel
4
4–166.
Issue 1
February 1998
Page 4-178
