MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Common Administrative Procedures
UDP (Uniform Dial Plan) Routing

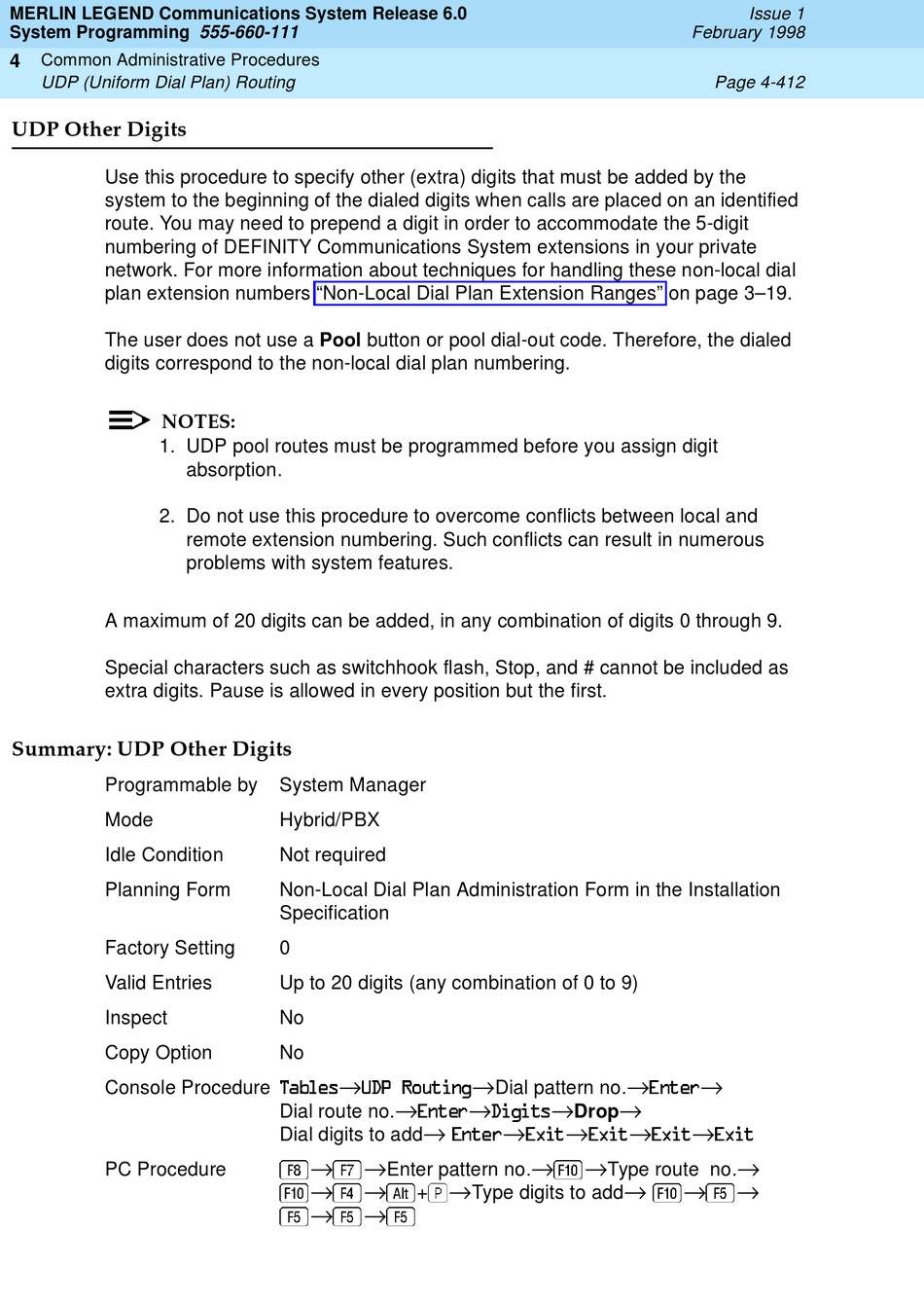

UDP Other Digits
Use this procedure to specify other (extra) digits that must be added by the
system to the beginning of the dialed digits when calls are placed on an identified
route. You may need to prepend a digit in order to accommodate the 5-digit
numbering of DEFINITY Communications System extensions in your private
network. For more information about techniques for handling these non-local dial
plan extension numbers "Non-Local Dial Plan Extension Ranges" on page 3–19.
The user does not use a Pool button or pool dial-out code. Therefore, the dialed
digits correspond to the non-local dial plan numbering.
NOTES:
1. UDP pool routes must be programmed before you assign digit
2. Do not use this procedure to overcome conflicts between local and
A maximum of 20 digits can be added, in any combination of digits 0 through 9.
Special characters such as switchhook flash, Stop, and # cannot be included as
extra digits. Pause is allowed in every position but the first.
Summary: UDP Other Digits
Programmable by
Mode
Idle Condition
Planning Form
Factory Setting
Valid Entries
Inspect
Copy Option
Console Procedure Uhiyr†
PC Procedure
absorption.
remote extension numbering. Such conflicts can result in numerous
problems with system features.
System Manager
Hybrid/PBX
Not required
Non-Local Dial Plan Administration Form in the Installation
Specification
0
Up to 20 digits (any combination of 0 to 9)
No
No
Dial route no.
 É
Dial digits to add
 Æ U
Ç Ç Ç
4
4
V9QÃS‚ˆ‡vt
Dial pattern no.
@‡r… 9vtv‡†
@‡r… @‘v‡
I
Enter pattern no.
+ Type digits to add
February 1998
Page 4-412
@‡r…
Drop

@‘v‡ @‘v‡ @‘v‡
 Ç
Type route no.
Issue 1
