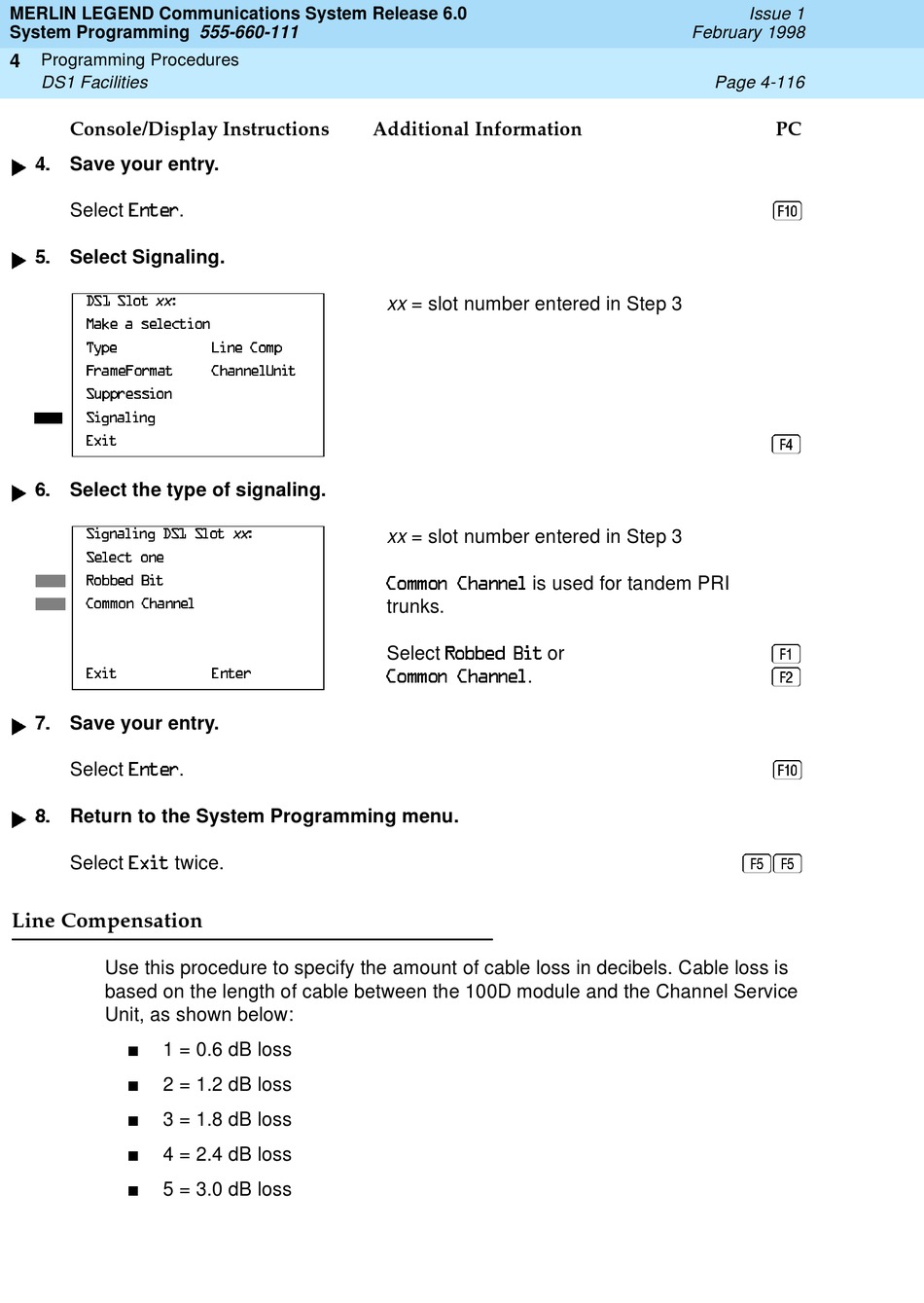

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4
Programming Procedures
DS1 Facilities
Console/Display Instructions
Save your entry.
!
(QWHU
Select
.
Select Signaling.
!
9T ÃTyÃYY
Select the type of signaling.
!
Save your entry.
!
(QWHU
Select
.
Return to the System Programming menu.
!
([LW
Select
twice.
Line Compensation
Use this procedure to specify the amount of cable loss in decibels. Cable loss is
based on the length of cable between the 100D module and the Channel Service
Unit, as shown below:
1 = 0.6 dB loss
2 = 1.2 dB loss
3 = 1.8 dB loss
4 = 2.4 dB loss
5 = 3.0 dB loss
Additional Information
xx = slot number entered in Step 3
YY
xx = slot number entered in Step 3
8Ã8uhry is used for tandem PRI
trunks.
Select SiirqÃ7v or
8Ã8uhry .
4
Issue 1
February 1998
Page 4-116
PC
Æ
Ã
Ä
ÇÇ
