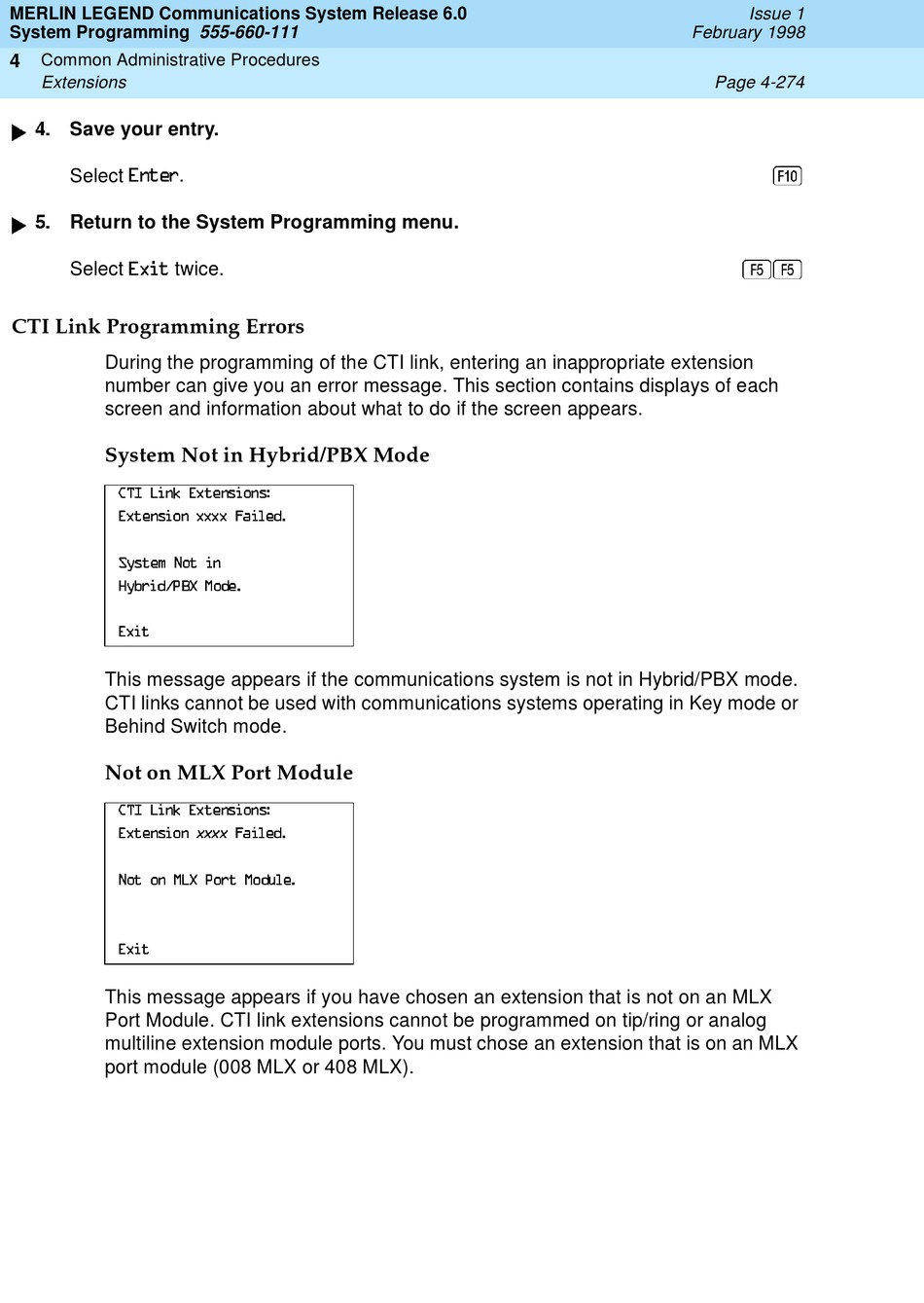

Lucent Technologies MERLIN LEGEND Release 6.0 System Programming Manual page 744

MERLIN LEGEND Communications System Release 6.0
System Programming 555-660-111
4 Common Administrative Procedures
Extensions
Save your entry.
!
(QWHU
Select .
Return to the System Programming menu.
!
([LW
Select twice.
CTI Link Programming Errors
During the programming of the CTI link, entering an inappropriate extension
number can give you an error message. This section contains displays of each
screen and information about what to do if the screen appears.
System Not in Hybrid/PBX Mode
This message appears if the communications system is not in Hybrid/PBX mode.
CTI links cannot be used with communications systems operating in Key mode or
Behind Switch mode.
Not on MLX Port Module
This message appears if you have chosen an extension that is not on an MLX
Port Module. CTI link extensions cannot be programmed on tip/ring or analog
multiline extension module ports. You must chose an extension that is on an MLX
port module (008 MLX or 408 MLX).
YYYY
4
Issue 1
February 1998
Page 4-274
