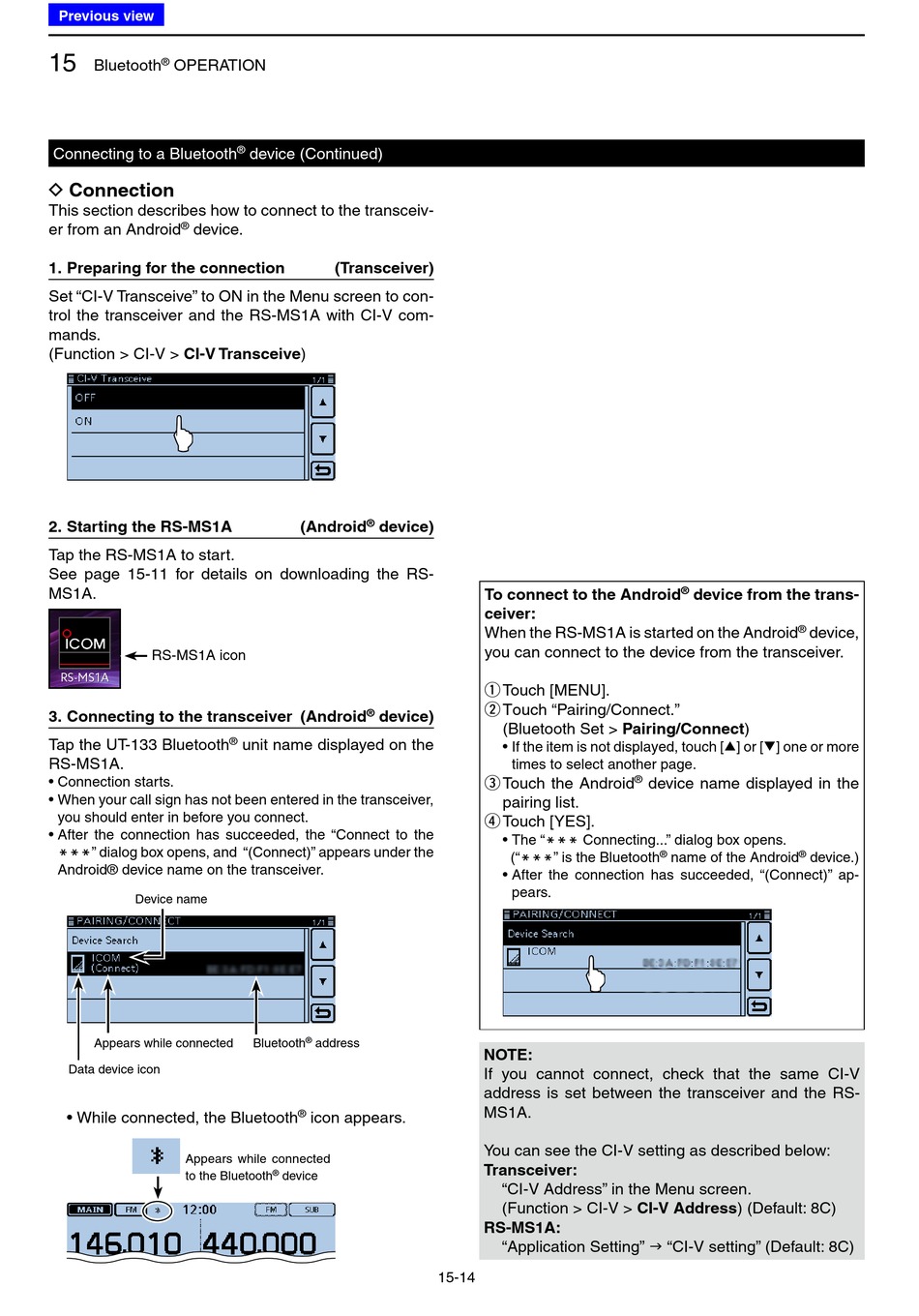

15
Bluetooth ® OPERATION
Connecting to a Bluetooth

D Connection

This section describes how to connect to the transceiv-
er from an Android ® device.
1. Preparing for the connection
Set "CI-V Transceive" to ON in the Menu screen to con-
trol the transceiver and the RS-MS1A with CI-V com-
mands.
(Function > CI-V > CI-V Transceive)
2. Starting the RS-MS1A
Tap the RS-MS1A to start.
See page 15-11 for details on downloading the RS-
MS1A.
RS-MS1A icon
3. Connecting to the transceiver (Android
Tap the UT-133 Bluetooth
RS-MS1A.
• Connection starts.
• When your call sign has not been entered in the transceiver,
you should enter in before you connect.
• After the connection has succeeded, the "Connect to the
MMM" dialog box opens, and "(Connect)" appears under the
Android® device name on the transceiver.
Device name
Appears while connected
Data device icon
• While connected, the Bluetooth
Appears while connected
to the Bluetooth
®
device (Continued)
(Transceiver)
®
(Android device)
®
device)
®
unit name displayed on the
Bluetooth ® address
® icon appears.
®
device
To connect to the Android
ceiver:
When the RS-MS1A is started on the Android
you can connect to the device from the transceiver.
Touch [MENU].
q
Touch "Pairing/Connect."
w
(Bluetooth Set > Pairing/Connect)
• If the item is not displayed, touch [∫] or [√] one or more
times to select another page.
Touch the Android
e
pairing list.
Touch [YES].
r
• The "MMM Connecting..." dialog box opens.
("MMM" is the Bluetooth
• After the connection has succeeded, "(Connect)" ap-
pears.
NOTE:
If you cannot connect, check that the same CI-V
address is set between the transceiver and the RS-
MS1A.
You can see the CI-V setting as described below:
Transceiver:
"CI-V Address" in the Menu screen.
(Function > CI-V > CI-V Address) (Default: 8C)
RS-MS1A:
"Application Setting"  "CI-V setting" (Default: 8C)
15-14
® device from the trans-
®
®
device name displayed in the
® ®
name of the Android
device,
device.)
