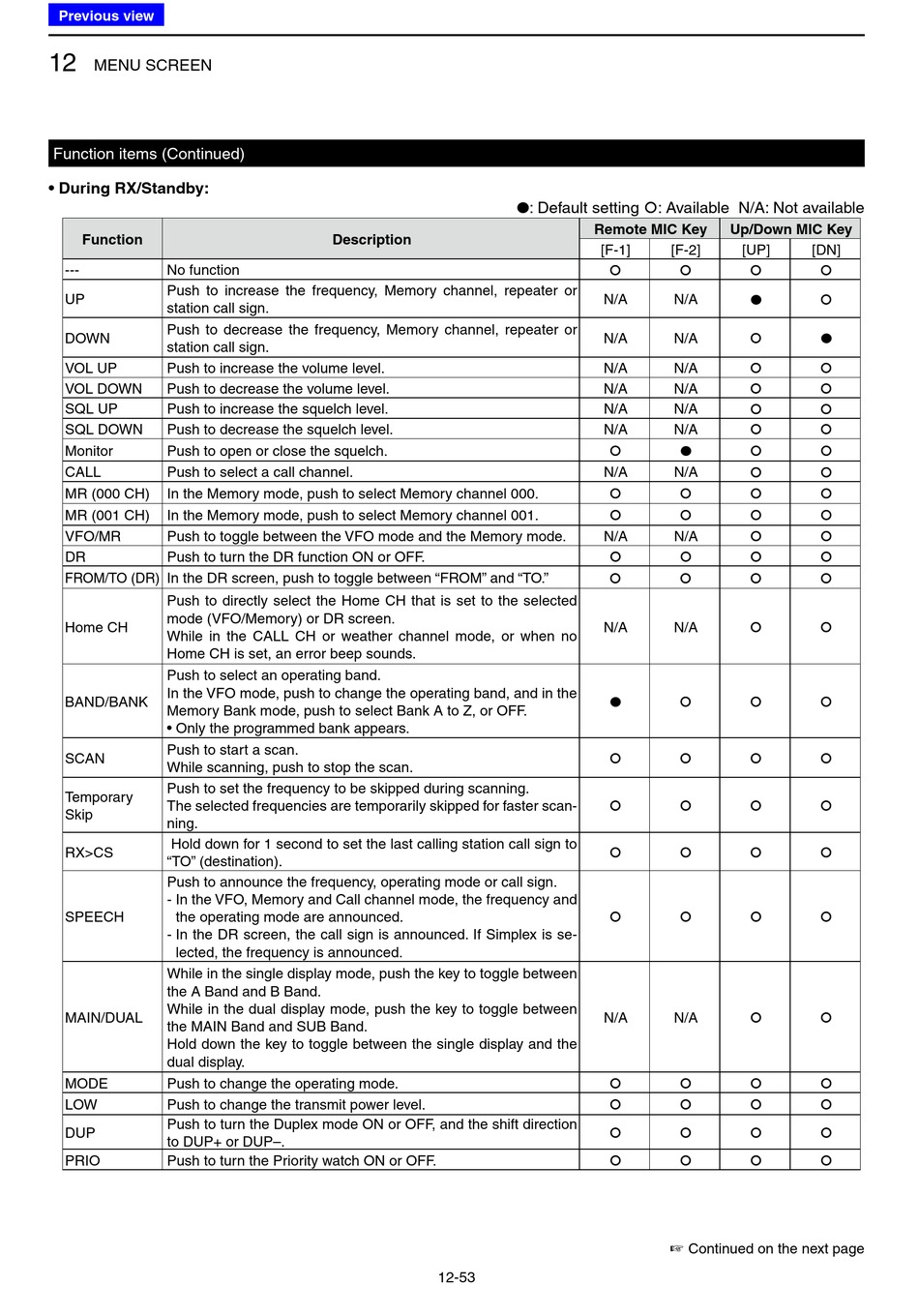

Icom ID-5100A Full Manual page 275

Previous view
12
MENU SCREEN
Function items (Continued)
• During RX/Standby:
Function
--- No function
Push to increase the frequency, Memory channel, repeater or
UP
station call sign.
Push to decrease the frequency, Memory channel, repeater or
DOWN
station call sign.
VOL UP Push to increase the volume level.
VOL DOWN Push to decrease the volume level.
SQL UP Push to increase the squelch level.
SQL DOWN Push to decrease the squelch level.
Monitor Push to open or close the squelch.
CALL Push to select a call channel.
MR (000 CH) In the Memory mode, push to select Memory channel 000.
MR (001 CH) In the Memory mode, push to select Memory channel 001.
VFO/MR Push to toggle between the VFO mode and the Memory mode.
DR Push to turn the DR function ON or OFF.
FROM/TO (DR) In the DR screen, push to toggle between "FROM" and "TO."
Push to directly select the Home CH that is set to the selected
mode (VFO/Memory) or DR screen.
Home CH
While in the CALL CH or weather channel mode, or when no
Home CH is set, an error beep sounds.
Push to select an operating band.
In the VFO mode, push to change the operating band, and in the
BAND/BANK
Memory Bank mode, push to select Bank A to Z, or OFF.
• Only the programmed bank appears.
Push to start a scan.
SCAN
While scanning, push to stop the scan.
Push to set the frequency to be skipped during scanning.
Temporary
The selected frequencies are temporarily skipped for faster scan-
Skip
ning.
Hold down for 1 second to set the last calling station call sign to
RX>CS
"TO" (destination).
Push to announce the frequency, operating mode or call sign.
- In the VFO, Memory and Call channel mode, the frequency and
SPEECH the operating mode are announced.
- In the DR screen, the call sign is announced. If Simplex is se-
lected, the frequency is announced.
While in the single display mode, push the key to toggle between
the A Band and B Band.
While in the dual display mode, push the key to toggle between
MAIN/DUAL
the MAIN Band and SUB Band.
Hold down the key to toggle between the single display and the
dual display.
MODE Push to change the operating mode.
LOW Push to change the transmit power level.
Push to turn the Duplex mode ON or OFF, and the shift direction
DUP
to DUP+ or DUP–.
PRIO Push to turn the Priority watch ON or OFF.
Description
12-53
●: Default setting : Available N/A: Not available
Remote MIC Key
[F-1] [F-2]
 
N/A N/A
N/A N/A
N/A N/A
N/A N/A
N/A N/A
N/A N/A

●
N/A N/A
 
 
N/A N/A
 
 
N/A N/A

●
 
 
 
 
N/A N/A
 
 
 
 
Continued on the next page
☞
Up/Down MIC Key
[UP] [DN]
 

●

●
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
